RE030005_05

Description
POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 6A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size141KB,2 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

RE030005_05 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 6A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

RE030005_05 Parametric

Parameter NameAttribute value
Maximum operating temperature70 Cel
Minimum operating temperature-40 Cel
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
sealRT3
Coil power200 mW
Relay actionMOMENTARY
Relay functionSPST
Coil resistance125 ohm
Electrical life100000 Cycle(s)
terminal coatingNOT SPECIFIED
Manufacturer SeriesRE
Maximum DC coil current0.0400 A
Maximum DC coil voltage5 V
Maximum AC contact current6 A
Maximum DC contact current6 A
Maximum AC contact voltage400 V
Maximum DC contact voltage30 V
DC coil operating voltage3.5 V
DC coil release voltage0.5000 V
width10 mm
high10.6 mm
length or diameter20 mm
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours6 ms
Relay typePOWER/SIGNAL RELAY
release time2 ms
Terminal typeSOLDER

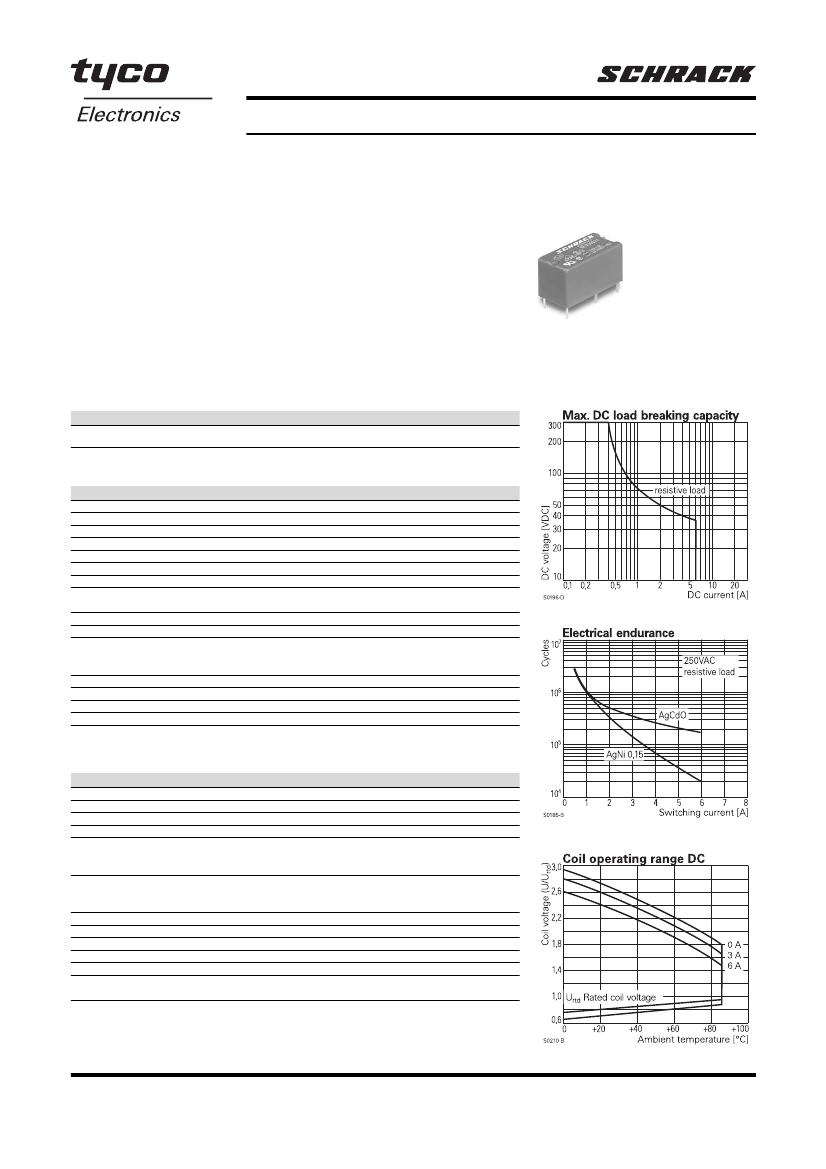

General Purpose Relays
Miniature PCB Relay RE
I
I
I
I
I
I
I
I
1 pole 6 A, 1NO contact
Sensitive coil 200 mW
4 kV coil-contact
Optimized height 10,6 mm
PCB area 200 mm2
Wash tight
Plastic materials according to IEC60335-1 (domestic appliances)
RoHS compliant (Directive 2002/95/EC)
as per product date code 0352
F0141-A
Applications
PLC's, timers, temperature control, I/O cards, white goods
Approvals
V
REG.-Nr.
of
5063,
Z
on request
E214025
Technical data approved types
Contact data
Contact configuration
1 NO
Contact set
single contact
Type of interruption
micro disconnection
Rated current
6A
Rated voltage / max.switching voltage AC
240/400 VAC
Maximum breaking capacity AC
1500 VA
Limiting making capacity, max 4 s, duty factor 10%
15 A
Contact material
AgCdO
AgNi0.15 and AgNi90/10 in preparation
Mechanical endurance
>30x10
6
cycles
Rated frequency of operation with / without load
6/1200 min
-1
Contact
Type
RE030
RE030
RE030
ratings
Load
6 A, 250 VAC, resistive, 70°C, 50% df, 6 min
-1
, EN61810-1
1/4 hp, 240 VAC, UL508
B 300, UL508
Cycles
1x10
5
3x10
4
Coil data
Rated coil voltage range DC coil
Coil power DC coil
Operative range
Coil insulation system according UL1446
5 ... 48 VDC
typ. 200 mW
2
F
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
005
5
3.5
0.5
125+10%
200
006
6
4.2
0.6
180+10%
200
012
12
8.4
1.2
720+10%
200
024
24
16.8
2.4
2880+15%
200
048
48
33.6
4.8
11520+15%
200
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
1
Datasheet
Rev. EL1
Issued 2005/12
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
