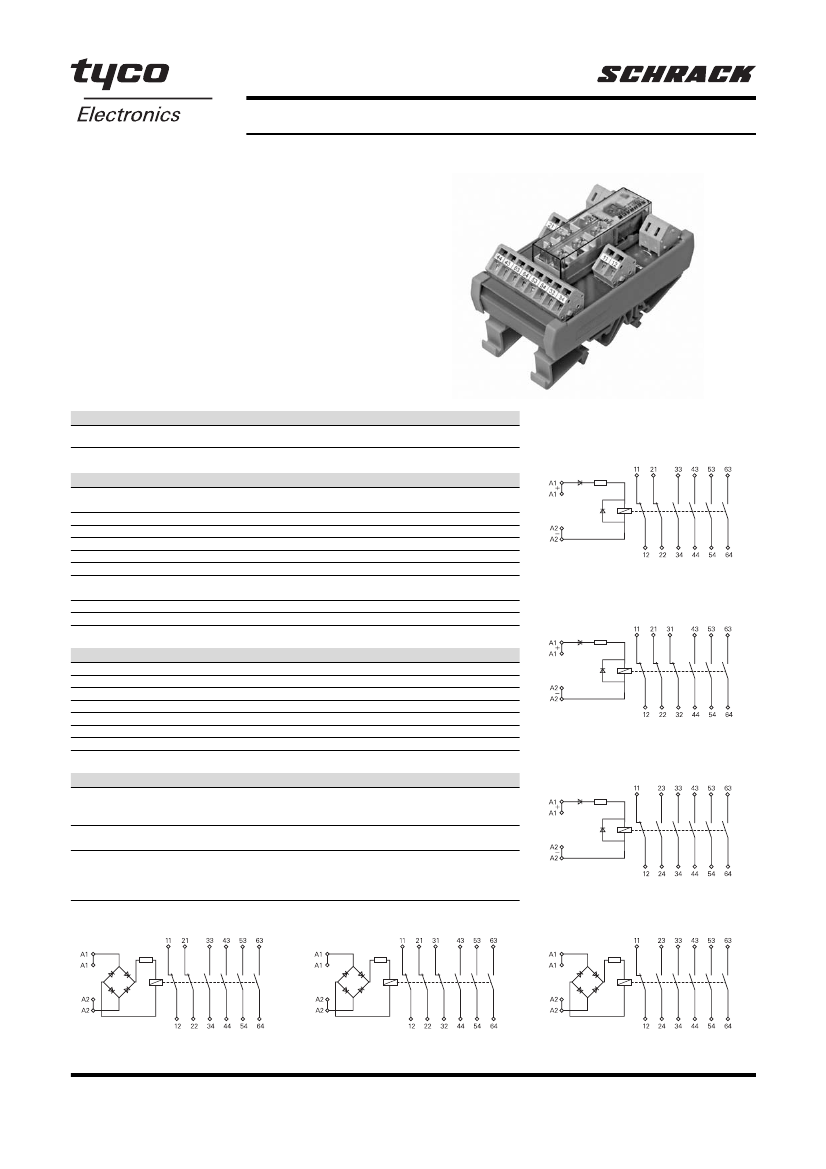

General Purpose Relays
Safety Relay on DIN-rail SR6 Z
I
I
I
I
I
6 pole 8 A
SR6 on printed circuit board
AC/DC input
Spring connectors
Module width 46 mm
Applications
Elevator control, machine control
F0238-B
Approvals
Terminal assignment
DC module, 4 NO+2 NC version
E
data of approved types on request
Technical
Contact data
Contact set
Rated current / limiting continuous current
Rated voltage / max. switching voltage AC
Maximum breaking capacity AC
Contact material
Minimum contact load
Contact resistance
Mechanical endurance
Rated frequency of operation with / without load
single contact, forcibly guided
type A according to EN50205
8A
240 VAC / 240 VAC
2000 VA
AgSnO
2
10 mA / 5 V
w100
mOhm / 1 A / 24 VDC
w20
Ohm / 10 mA / 5 VDC
10x10
6
cycles
6 min
-1
/ 150 min
-1
S0422-BA
DC module, 3 NO+3 NC version
Coil data
DC energizing voltage Urtd
6, 12, 18, 21, 24, 36, 40, 48, 60, 115 VDC
AC/DC energizing voltage Urtd
12, 21, 24, 40, 48, 60,115 VAC/VDC
AC energizing voltage Urtd
230 VAC
Input circuit
bridge rectifier, series resistor
Minimum operate voltage, % of rated coil voltage
90%
Minimum release voltage (+23°C), % of rated coil voltage
10%
Limiting voltage, % of rated coil voltage
110%
S0422-BB
DC module, 5 NO+1 NC version
Insulation
Surge voltage resistance coil-contacts
open contact circuit
adjacent contacts
Clearance / creepage coil-contact
adjacent contacts
Insulation to IEC 60664
Voltage rating
Pollution degree
Overvoltage category
AC/DC module, 4 NO+2 NC version
3000 V
rms
1000 V
rms
2000 V
rms
W
5.5 / 5.5 mm
W
3 / 3 mm
250 V
2
III
AC/DC module, 3 NO+3 NC version
S0422-BC
AC/DC module, 5 NO+1 NC version
S0422-BD
S0422-BE
S0422-BF
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Safety Relay on DIN-rail SR6 Z
(Continued)
Other data
Flammability class according to UL 94
housing
housing cage clamp terminals
PCB
relay base
relay cover
Ambient temperature
Connections (according IEC)
solid wire
stranded wire
AWG 28...14
Installation position
Mounting
Type of connection
Relay weight
Packaging unit
V2
V0
V0
V0
V2
-25...+50 °C
0.2...2.5 mm2
0.2...2.5 mm2
any
in rows with zero spacing
spring clamp connection
90 g
2 pcs
Dimensions
Module width 46 mm
Module length 87 mm
S0423-A
Fit onto mounting rails according to
DIN EN 50022 or DIN EN 50035
Product key
Type
Contact configuration
A
3 NO + 3 NC contacts
B
4 NO + 2 NC contacts
C
5 NO + 1 NC contacts
Coil
DC Coil code = rated coil voltage (e.g. 024=24VDC)
AC/DC coil code: 524=24VAC/VDC, 615=115VAC/VDC
AC coil code: 730=230VAC
Other types on request
S R 6 Z
Product key
SR6ZA024
SR6ZA524
SR6ZA615
SR6ZA730
SR6ZB024
SR6ZB524
SR6ZB615
SR6ZB730
SR6ZC024
SR6ZC524
SR6ZC615
SR6ZC730
Type
6-pole
safety
relay module
Contact configuration
3 NO + 3 NC
contacts
4 NO + 2 NC
contacts
5 NO + 1 NC
contacts
Contact material
AgSnO
2
Coil
24 VDC
24 VAC/VDC
115 VAC/VDC
230 VAC
24 VDC
24 VAC/VDC
115 VAC/VDC
230 VAC
24 VDC
24 VAC/VDC
115 VAC/VDC
230 VAC
Part number
7-1415033-1
9-1415059-1
0-1415060-1
1-1415060-1
5-1415033-1
2-1415060-1
6-1415046-1
3-1415060-1
3-1415042-1
4-1415060-1
5-1415060-1
6-1415060-1
