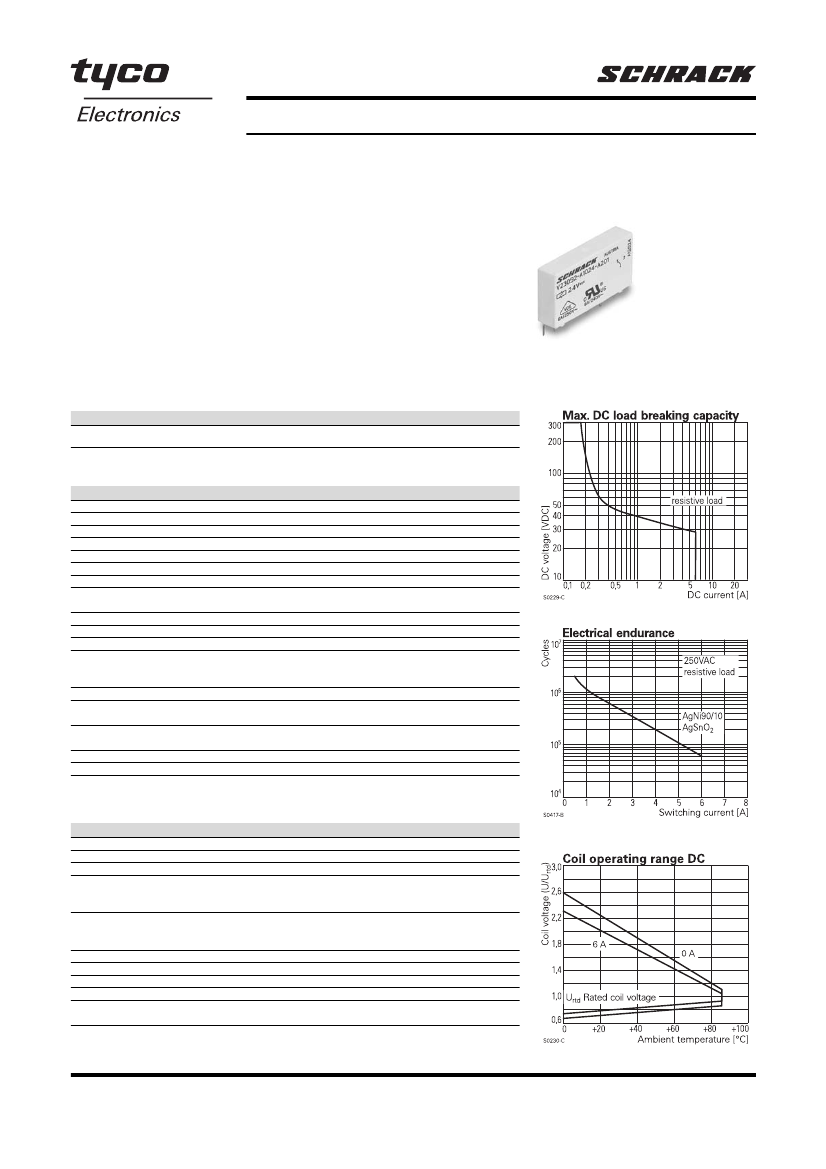

General Purpose Relays
Slim PCB Relay SNR
I
I
I
I
I
I
I
I
1 pole 6 A, 1 CO or 1 NO contact
Only 5 mm wide
Sensitive coil 170 mW
4 kV coil-contact, 6 / 8 mm clearance/creepage, NO version
with 8 / 8 mm clearance/creepage on request
Reinforced insulation (protection class II)
Allows high function-/packing density
Cadmium-free contacts, AgNi 90/10 for AC-loads
RoHS compliant (Directive 2002/95/EC) as per product date
code 0404
F0140-C
Applications: centralized and decentralized heating control,
extremely narrow interface elements, interface technology,
timers, PLC's, I/O modules, I/O-ports
Approvals
V
REG.-Nr.
of
6666,
Z
on request
E214024
Technical data approved types
Contact data
Contact configuration
1CO or 1NO
Contact set
single contact
Type of interruption
micro disconnection
Rated current
6A
Rated voltage / max.switching voltage AC
240/400 VAC
Maximum breaking capacity AC
1500 VA
Limiting making capacity, max 4 s, duty factor 10%
10 A
Contact material
AgSnO
2
AgSnO
2
AgNi90/10
gold plated
Minimum contact load
100mA, 12V
50mW
100mA, 12V
Mechanical endurance
10x10
6
cycles
Rated frequency of operation with / without load
6 /1200 min
-1
Contact ratings
Type
V23092-*****-A302
V23092-*****-A302
-A802
V23092-
V23092-
Load
3(1,5)A, 250VAC, 85°C, 1mm mounting distance,
6 cycles / min, EN60730-1
5(1,5)A, 250VAC, 85°C, 0,5mm mounting
distance, 6 cycles / min, EN60730-1
Pilot Duty R300 28 VDC, 85°C, 6000 cycles, UL508
Pilot Duty B300 240 VAC, 85°C, 6000 cycles, UL508
Cycles
100x10
3
10x10
3
Coil data
Rated coil voltage range DC coil
Coil power DC coil
Operative range
5...60 VDC
typ. 170 mW
2
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
005
5
3.5
0.25
147+10%
170
012
12
8.4
0.6
848+10%
170
024
24
16.8
1.2
3390+10%
170
048
48
33.6
2.4
10600+15%
217
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
1
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Slim PCB Relay SNR
(Continued)
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
4000 V
rms
1000 V
rms
W
6 / 8 mm
IIIa
PTI 250
reinforced
functional
250 V
3
230 V
III
2
400 V
PCB layout / terminal assignment
Bottom view on solder pins
S0258-AA
1 CO contact
Other data
RoHS - Directive 2002/95/EC
compliant as per product date code 0404
Flammability class according to UL94
V-0
Ambient temperature range
-40...+85°C
Operate- / release time
5 / 2,5 ms
Bounce time NO / NC contact
1,5 / 5 ms
Vibration resistance (function) NO / NC contact
10 / 5 g
Shock resistance (function) NO / NC contact
10 / 5 g
Shock resistance (destruction)
30 g
Category of protection
RTIII - wash tight
Mounting
pcb
Mounting position
any
Minimum mounting distance
0 mm
Resistance to soldering heat
260°C / 5 s
Relay weight
6g
Packaging unit
20 / 1000 pcs
S0258-AB
1 NO contact
S0258-AC
Accessories
For details see datasheet
Accessories SNR
Dimensions
Vertical version
Flat pack version
S0284-A
S0283-A
2
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Slim PCB Relay SNR
(Continued)
Product key
V 2 3 0 9 2 -
1
- A
Type
Version
A
PCB vertical version
B
PCB flat pack version
Version
1
wash tight
Coil
Coil code: please refer to coil versions table
Contact system
A
standard
Contact material
3
AgSnO
2
2
AgSnO
2
, gold plated
8
AgNi 90/10
Contact configuration
01
1 CO contact
02
1 NO contact
NO version with 8/8 mm clearance and creepage and other types on request
Product key
V23092-A1005-A201
V23092-A1005-A202
V23092-A1005-A301
V23092-A1005-A302
V23092-A1005-A801
V23092-A1005-A802
V23092-A1012-A201
V23092-A1012-A202
V23092-A1012-A301
V23092-A1012-A302
V23092-A1012-A801
V23092-A1012-A802
V23092-A1024-A201
V23092-A1024-A202
V23092-A1024-A301
V23092-A1024-A302
V23092-A1024-A801
V23092-A1024-A802
V23092-A1048-A201
V23092-A1048-A202
V23092-A1048-A301
V23092-A1048-A302
V23092-A1048-A801
V23092-A1048-A802
Version
PCB
vertical version
wash tight
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Contacts
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
CO contact
NO contact
Contact material
AgSnO
2
, gold pl.
AgSnO
2
AgNi 90/10
AgSnO
2
, gold pl.
AgSnO
2
AgNi 90/10
AgSnO
2
, gold pl.
AgSnO
2
AgNi 90/10
AgSnO
2
, gold pl.
AgSnO
2
AgNi 90/10
Coil
5 VDC
12 VDC
24 VDC
48 VDC
Part number
0-1393236-1
8-1415067-1
0-1393236-2
9-1415067-1
1-1415068-1
0-1415068-1
0-1393236-4
0-1393236-5
0-1393236-7
0-1393236-8
1-1393236-3
2-1415068-1
2-1393236-1
2-1393236-2
2-1393236-4
2-1393236-5
3-1393236-0
5-1415063-1
3-1393236-5
3-1393236-6
3-1393236-7
3-1393236-8
3-1393236-9
3-1415068-1
3
