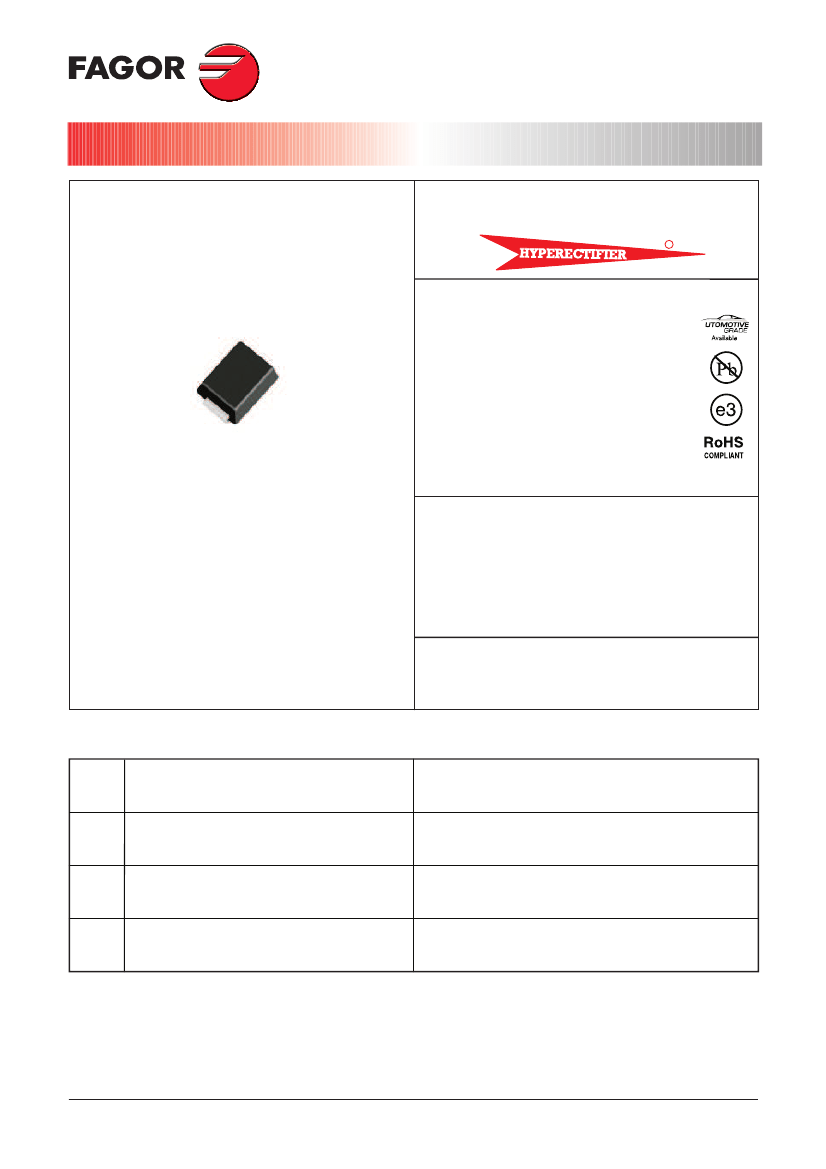

TPSMB6V8A TG ...... TPSMB43A TG
600 W Surface Mount Transient Voltage Suppressor
Voltage
6.8 V to 43 V (Uni)
DO-214AA (SMB)
Power
600 W /ms
R
FEATURES
Low profile package
Ideal for automated placement
Top-Glass Technology
600 W peak pulse power capability with a
10/1000 µs waveform, repetitive rate (duty
cycle): 0.01 %
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Available in uni-directional and bi-directional
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
DO-214AA (SMB). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
For unidirectional types color band denotes
cathode end. No marking on bidirectional types.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
HE3 suffix for high reliability grade, meets JESD 201
class 2 whisker test.
TYPICAL APPLICATIONS
Used in sensitive electronics protection against voltage
transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer,
computer, industrial, automotive and telecommunication.
Maximun Ratings and Electrical Characteristics at 25°C
P
PPM
I
FSM
Peak Pulse Power Dissipation
with 10/1000 µs exponential pulse
Peak Forward Surge Current 8.3 ms.
(Note 1)
(Jedec Method)
Max. forward voltage drop
at I
F
= 100 A
Operating Junction and Storage
Temperature Range
600 W
100 A
3.5 V
- 65 to + 185 ºC
V
F
T
J
-T
STG
Note: 1. Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal
www.fagorelectronica.com
Document Name: tpsmba
Version: Mar-13
Page Number: 1/5
