1.5SMC6.8CA
THRU
1.5SMC220CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
1500 WATTS, 6.8 THRU 220 VOLTS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1.5SMC6.8CA
Series types are Surface Mount Bi-Directional Glass
Passivated Junction Transient Voltage Suppressors
designed to protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
Note: For Uni-directional devices, please refer to the
1.5SMC6.8A Series data sheet.
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
SYMBOL
PDM
IFSM
TJ, Tstg
UNITS
W
A
°C
SMC CASE
• This series is UL listed, UL file number E130224
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Power Dissipation (Note 1)
Peak Forward Surge Current (JEDEC Method)
Operating and Storage Junction Temperature
1500
200
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
BREAKDOWN
VOLTAGE
TYPE
MIN
(V)
1.5SMC6.8CA
1.5SMC7.5CA
1.5SMC8.2CA
1.5SMC9.1CA
1.5SMC10CA
1.5SMC11CA
1.5SMC12CA
1.5SMC13CA
1.5SMC15CA
1.5SMC16CA
1.5SMC18CA
1.5SMC20CA
1.5SMC22CA
1.5SMC24CA
1.5SMC27CA
1.5SMC30CA
1.5SMC33CA
1.5SMC36CA
1.5SMC39CA
6.45
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19.0
20.9
22.8
25.7
28.5
31.4
34.2
37.1
VBR @ IT
NOM
(V)
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
MAX
(V)
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21.0
23.1
25.2
28.4
31.5
34.7
37.8
41
IT
(mA)
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
TEST
CURRENT
WORKING
PEAK
REVERSE
VOLTAGE
VRWM
(V)
5.8
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
MAXIMUM
REVERSE
LEAKAGE
CURRENT
@ VRWM
IR
(µA)
2000
1000
400
100
20
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MAXIMUM
REVERSE
SURGE
CURRENT
(Note 1)
IRSM
(A)
143
132
124
112
103
96
90
82
71
67
59.5
54
49
45
40
36
33
30
28
MAXIMUM
REVERSE
VOLTAGE
@ IRSM
VRSM
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
MAXIMUM
TEMPERATURE
COEFFICIENT MARKING
OF VBR
CODE
ΘV
Z
(% / °C)
0.057
0.061
0.065
0.068
0.073
0.075
0.078
0.081
0.084
0.086
0.088
0.090
0.092
0.094
0.096
0.097
0.098
0.099
0.100
C6V8C
C7V5C
C8V2C
C9V1C
C10C
C11C
C12C
C13C
C15C
C16C
C18C
C20C
C22C
C24C
C27C
C30C
C33C
C36C
C39C
Notes: (1) Non-repetitive 10x1,000µs pulse.
R6 (20-November 2009)

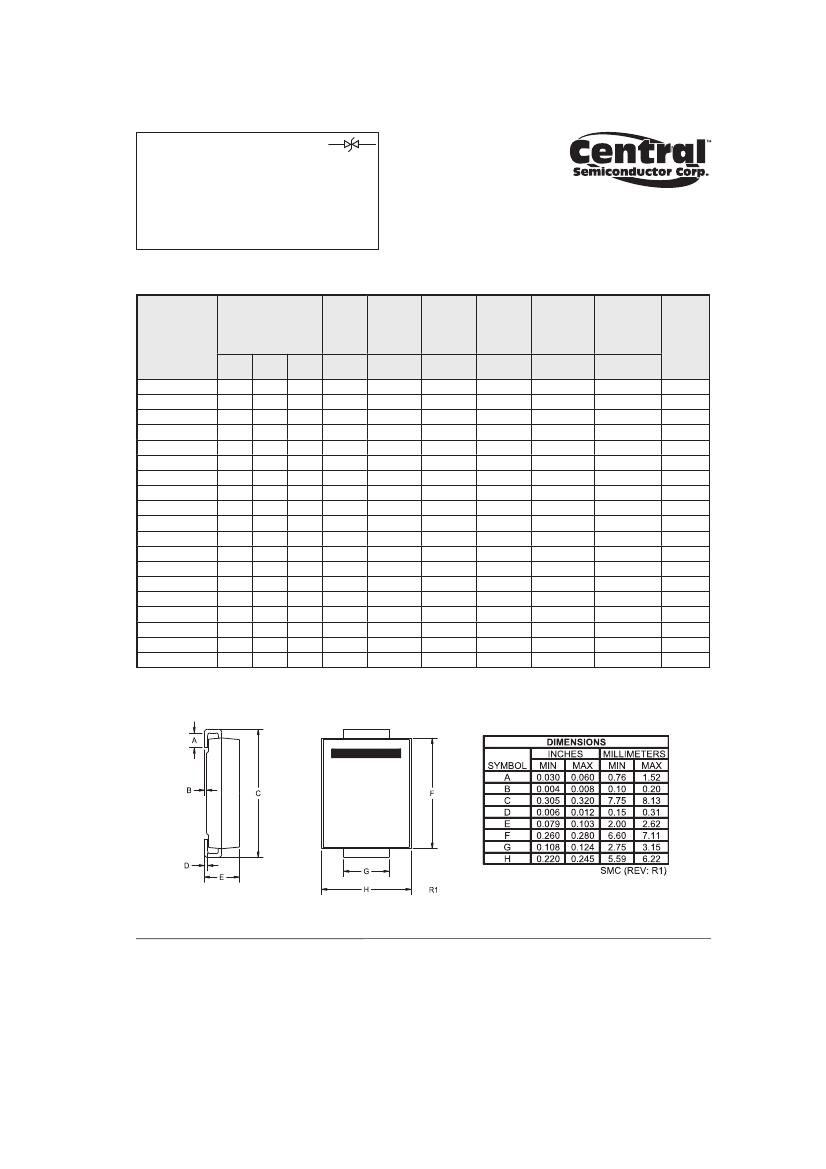

1.5SMC6.8CA
THRU
1.5SMC220CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
1500 WATTS, 6.8 THRU 220 VOLTS
ELECTRICAL CHARACTERISTICS - Continued:
BREAKDOWN
VOLTAGE
TYPE
MIN
(V)
1.5SMC43CA
1.5SMC47CA
1.5SMC51CA
1.5SMC56CA
1.5SMC62CA
1.5SMC68CA
1.5SMC75CA
1.5SMC82CA
1.5SMC91CA
1.5SMC100CA
1.5SMC110CA
1.5SMC120CA
1.5SMC130CA
1.5SMC150CA
1.5SMC160CA
1.5SMC170CA
1.5SMC180CA
1.5SMC200CA
1.5SMC220CA
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95.0
104.5
114
123.5
142.5
152
161.5
171
190
209
VBR @ IT
NOM
(V)
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
170
180
200
220
MAX
(V)
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
105
115.5
126
136.5
157.5
168
178.5
189
210
231
IT
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
TEST
CURRENT
WORKING
PEAK
REVERSE
VOLTAGE
VRWM
(V)
36.8
40.2
43.6
47.8
53.0
58.1
64.1
70.1
77.8
85.5
94.0
102
111
128
136
145
154
171
185
MAXIMUM
REVERSE
LEAKAGE
CURRENT
@ VRWM
IR
(µA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MAXIMUM
REVERSE
SURGE
CURRENT
(Note 1)
IRSM
(A)
25.3
23.2
21.4
19.5
17.7
16.3
14.6
13.3
12
11
9.9
9.1
8.4
7.2
6.8
6.4
6.1
5.5
4.6
MAXIMUM
REVERSE
VOLTAGE
@ IRSM
VRSM
(V)
59.3
64.8
70.1
77
85
92
103
113
125
137
152
165
179
207
219
234
246
274
328
MAXIMUM
TEMPERATURE
COEFFICIENT MARKING
OF VBR
CODE
ΘV
Z
(% / °C)
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.105
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
C43C
C47C
C51C
C56C
C62C
C68C
C75C
C82C
C91C
C100C
C110C
C120C
C130C
C150C
C160C
C170C
C180C
C200C
C220C
SMC CASE - MECHANICAL OUTLINE
R6 (20-November 2009)
w w w. c e n t r a l s e m i . c o m
1.5SMC6.8CA
THRU
1.5SMC220CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
1500 WATTS, 6.8 THRU 220 VOLTS

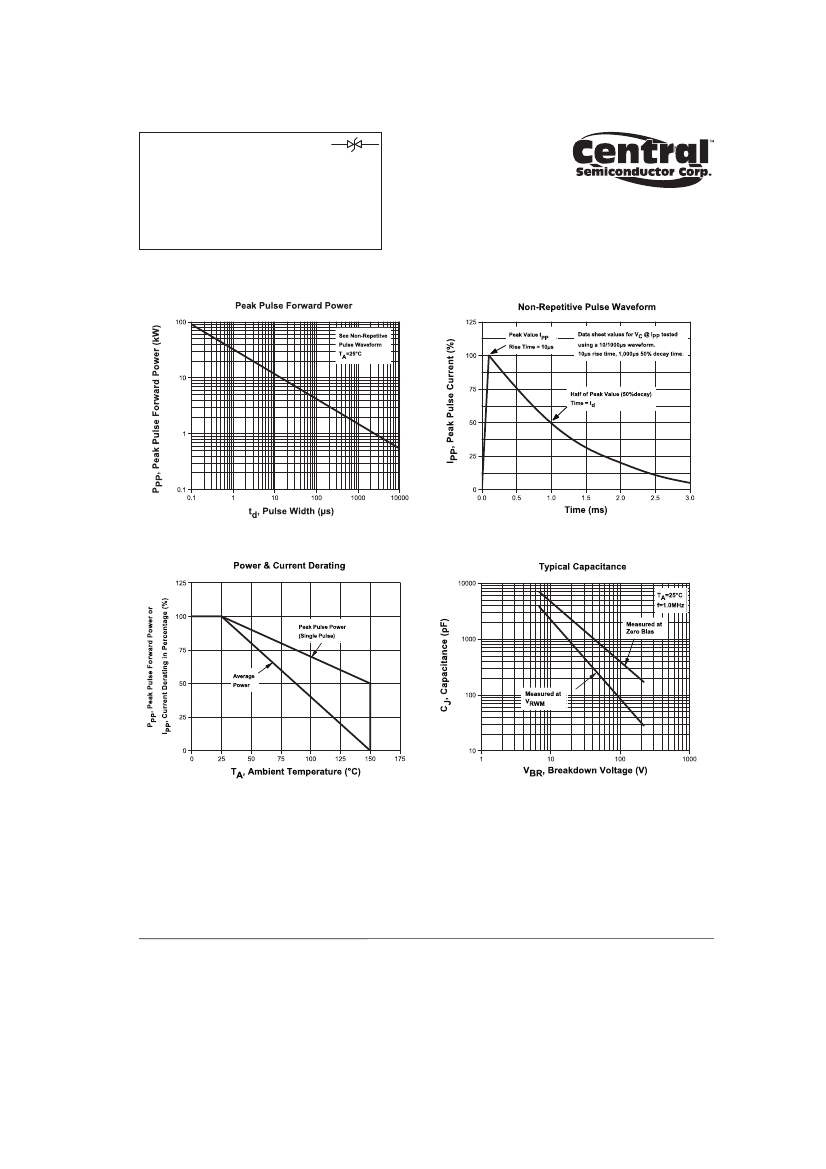

TYPICAL ELECTRICAL CHARACTERISTICS
R6 (20-November 2009)
w w w. c e n t r a l s e m i . c o m
