Datasheet> All Categories > logic> logic> CD74HC40103M

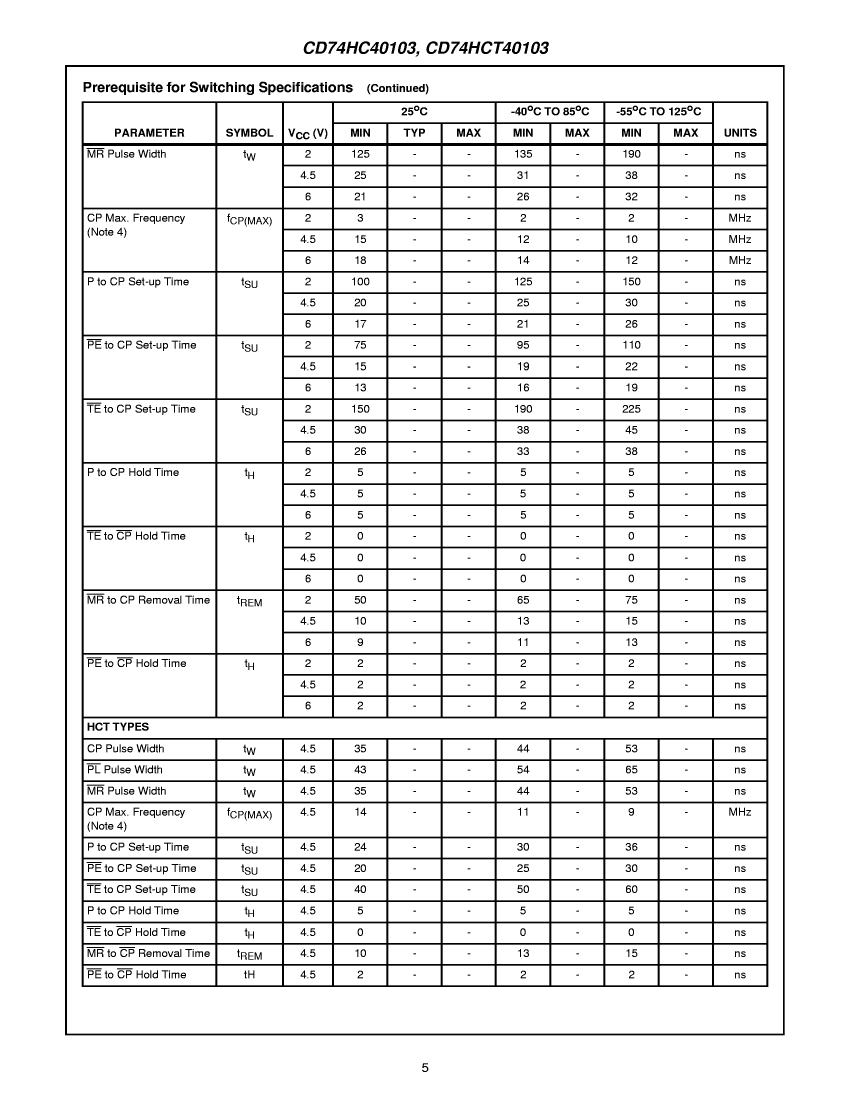

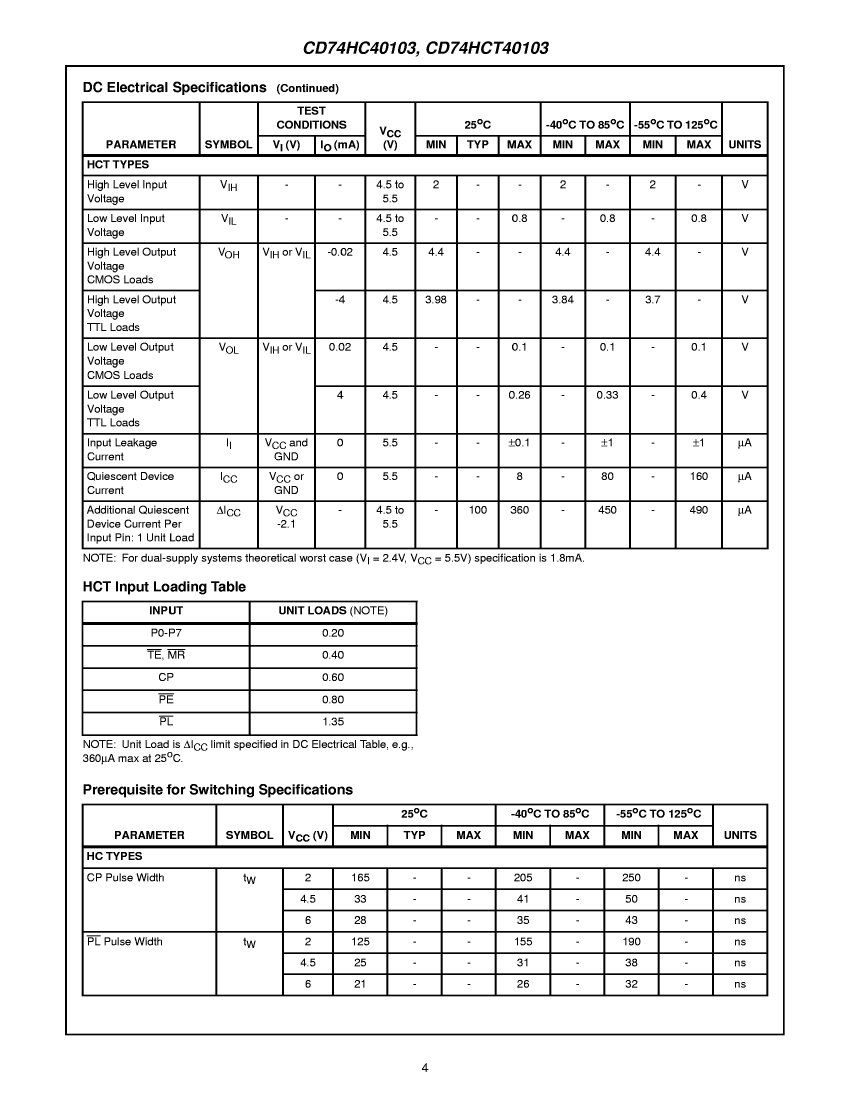

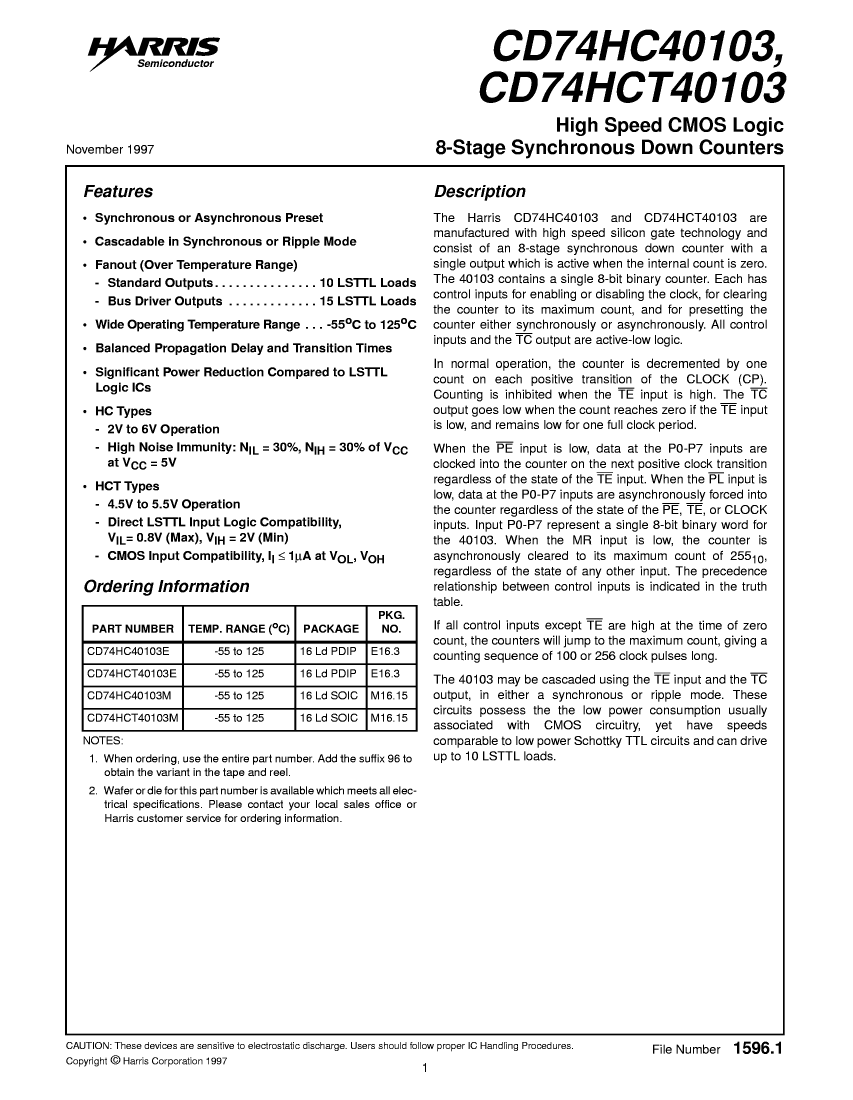

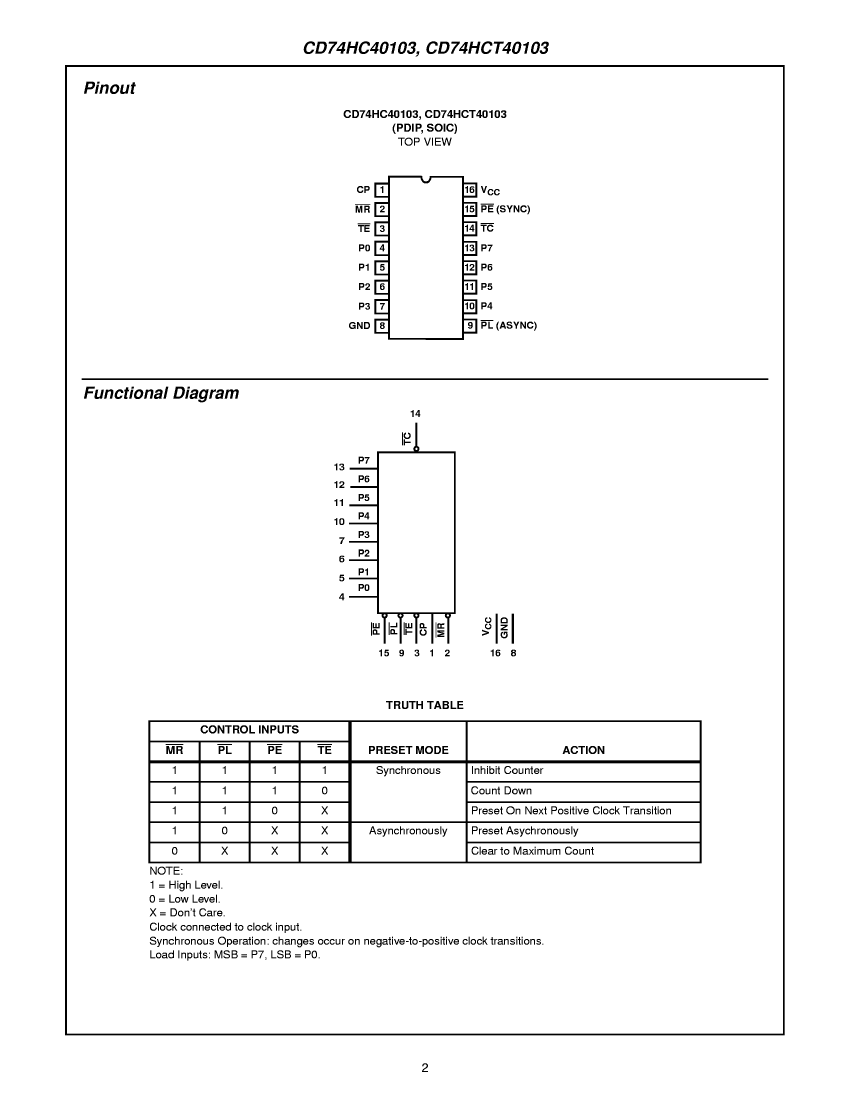

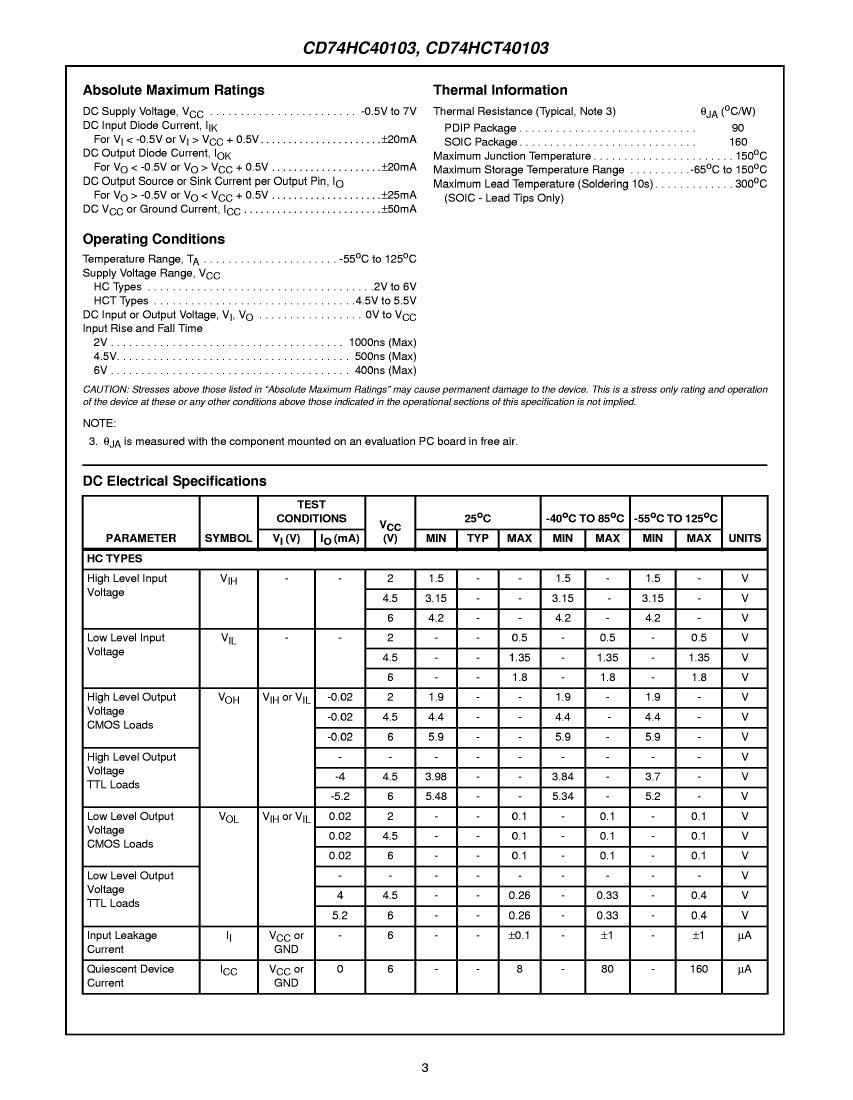

Preview

CD74HC40103M: DescriptionBINARY COUNTER; Categorylogic logic; File Size415KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74HC40103M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC40103M	-	-	View	Buy Now

CD74HC40103M Overview

BINARY COUNTER

CD74HC40103M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOP, SOP16,.25
Reach Compliance Code	not_compliant
Counting direction	DOWN
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	10000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CD74HC40103M Related Products

	CD74HC40103M	RCWP0502158RFMEC	CD74HC40103E	CD74HCT40103E
Description	BINARY COUNTER	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 158ohm, 40V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0502, CHIP	BINARY COUNTER	BINARY COUNTER
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
package instruction	SOP, SOP16,.25	CHIP	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant
JESD-609 code	e0	e3	e0	e0
Number of terminals	16	2	16	16
Maximum operating temperature	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-65 °C	-55 °C	-55 °C
Package form	SMALL OUTLINE	SMT	IN-LINE	IN-LINE
surface mount	YES	YES	NO	NO
technology	CMOS	METAL GLAZE/THICK FILM	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
Counting direction	DOWN	-	DOWN	DOWN
JESD-30 code	R-PDSO-G16	-	R-PDIP-T16	R-PDIP-T16
Load capacitance (CL)	50 pF	-	50 pF	50 pF
Load/preset input	YES	-	YES	YES
Logic integrated circuit type	BINARY COUNTER	-	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	10000000 Hz	-	10000000 Hz	9000000 Hz
MaximumI(ol)	0.004 A	-	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	-	1	1
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	DIP	DIP
Encapsulate equivalent code	SOP16,.25	-	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
power supply	2/6 V	-	2/6 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Temperature level	MILITARY	-	MILITARY	MILITARY
Terminal form	GULL WING	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL
