CMKTC825A: Description6.2 V, 0.325 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size532KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMKTC825A Overview

6.2 V, 0.325 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

CMKTC825A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	ULTRAMINI-6
Contacts	6
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
Number of components	1
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.325 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	7.5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

CMKTC825A

CMKTC825E

SURFACE MOUNT

TEMPERATURE COMPENSATED

SILICON ZENER DIODE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMKTC825A and

CMKTC825E are 6.2 volt, temperature compensated

Zener reference diodes. These devices are ideal for

applications requiring long term voltage stability over

the specified temperature range.

CMKTC825A MARKING CODE: CT25

CMKTC825E MARKING CODE: C25E

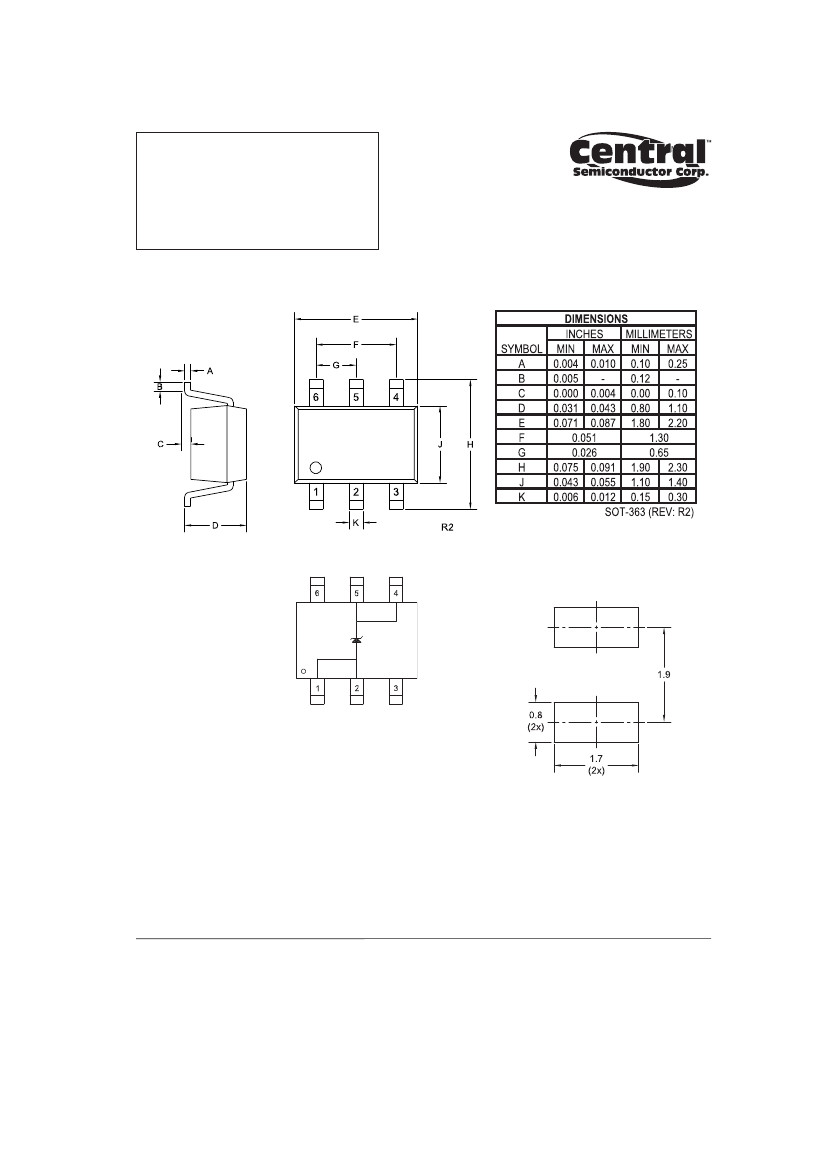

SOT-363 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Junction Temperature

Tolerance

SYMBOL

TJ, Tstg

325

-65 to +150

±5

MAX

6.51

UNITS

°C

UNITS

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

NOM

IZ=7.5mA

5.89

6.20

ΔVZ*

IZ=7.5mA

IZ=7.5mA (CMKTC825A)

IZ=7.5mA (CMKTC825E)

* The maximum allowable voltage change observed at the specified temperatures of

-55°C, 0°C, 25°C, 75°C, and 100°C

R5 (13-January 2010)

CMKTC825A Related Products

	CMKTC825A	CMKTC825E	CMKTC825A_10
Description	6.2 V, 0.325 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	6.2 V, 0.325 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE	6.2 V, 0.325 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE
Is it lead-free?	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-
package instruction	ULTRAMINI-6	R-PDSO-G6	-
Contacts	6	6	-
Reach Compliance Code	_compli	_compli	-
ECCN code	EAR99	EAR99	-
Configuration	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	-
Diode type	ZENER DIODE	ZENER DIODE	-
JESD-30 code	R-PDSO-G6	R-PDSO-G6	-
JESD-609 code	e0	e0	-
Number of components	1	1	-
Number of terminals	6	6	-
Maximum operating temperature	150 °C	150 °C	-
Minimum operating temperature	-65 °C	-65 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	-
Maximum power dissipation	0.325 W	0.325 W	-
Certification status	Not Qualified	Not Qualified	-
Nominal reference voltage	6.2 V	6.2 V	-
surface mount	YES	YES	-
technology	ZENER	ZENER	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
Maximum voltage tolerance	5%	5%	-
Working test current	7.5 mA	7.5 mA	-
Base Number Matches	1	1	-
