Telefon: +49 (0) 6135 931069

Telefax: +49 (0) 6135 931070

www.peak-electronics.de

info@peak-electronics.de

B7 SERIES

PB42WG-XXXXZ2:1H30 3 KVDC ISOLATED 10 W REGULATED DUAL OUTPUT

Available Inputs: 12, 24 and 48 VDC Wide Input 2:1

Available Outputs: (+/-) 3.3, 5, 9, 12 and 15 VDC

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

9 -18 VDC (12 VDC), 18 - 36 VDC (24 VDC), 36 -

72 VDC (48 VDC)

Pi Filter

3000 Vdc

10

9

Ohm

350 pF typ.

+/- 1 % typ. +/-2% max.

50 mV p-p typ. , 100/120 mV p-p (12/15 VDC

Output)

Continuous , restart automatic

+/- 0,5 % max.

+/- 2 % max.

+/- 0,02 % / °C

79 % to 84 %

250 KHz, typ.

-25°C to +71°C

- 55 °C to + 105 °C

Examples of Partnumbers/Modelcode

PART

NO.

INPUT

VOLTAGE

(VDC)

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL

LOAD

(% TYP.)

PB42WG-123R3Z2:1H30

PB42WG-1205Z2:1H30

PB42WG-1209Z2:1H30

PB42WG-1212Z2:1H30

PB42WG-1215Z2:1H30

PB42WG-243R3Z2:1H30

PB42WG-2405Z2:1H30

PB42WG-2409Z2:1H30

PB42WG-2412Z2:1H30

PB42WG-2415Z2:1H30

PB42WG-483R3Z2:1H30

PB42WG-4805Z2:1H30

PB42WG-4809Z2:1H30

PB42WG-4812Z2:1H30

PB42WG-4815Z2:1H30

9 –18

18 – 36

36 – 72

36 - 72

20

25

20

25

12

10

12

10

870

1042

1006

1000

982

441

515

503

506

497

223

254

248

250

246

+/- 3.3

+/- 5

+/- 9

+/- 12

+/- 15

+/- 3.3

+/- 5

+/- 9

+/- 12

+/- 15

+/- 3.3

+/- 5

+/- 9

+/- 12

+/- 15

+/- 1250

+/- 1000

+/- 550

+/- 415

+/- 330

+/- 1250

+/- 1000

+/- 550

+/- 415

+/- 330

+/- 1250

+/- 1000

+/- 550

+/- 415

+/- 330

79

80

82

83

84

78

81

82

83

77

82

83

84

Remark:

1. Input Current is measured at Norminal Input Voltage, 9-18 is @ 12V, 18-36 is @ 24V, 36-72 is @ 48V

B7 SERIES

PB42WG-XXXXZ2:1H30 3 KVDC ISOLATED 10 W REGULATED DUAL OUTPUT

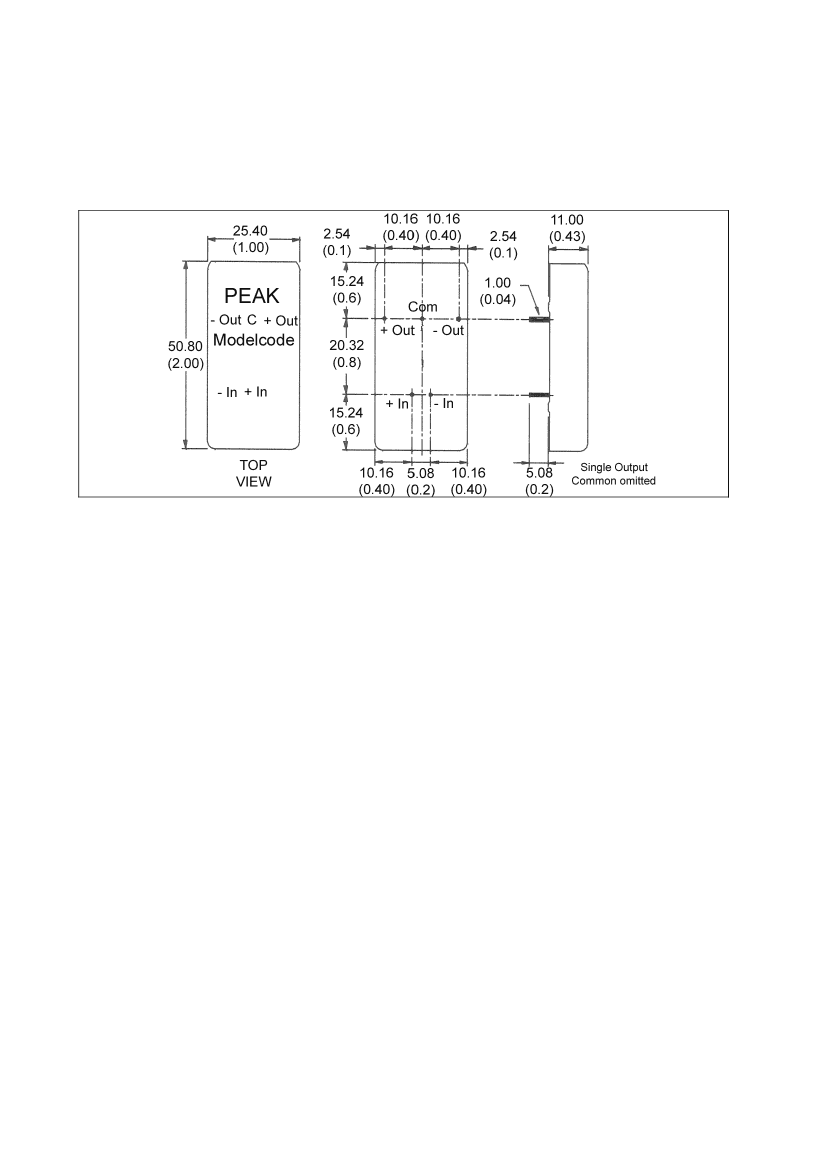

Dimensions

Specification can be changed without notice.

REV:0 / 11.2002
