CMLSH2-4LA CMLSH2-4LS

CMLSH2-4LC CMLSH2-4LSB

SURFACE MOUNT

DUAL PAIR, LOW VF

SILICON SCHOTTKY DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMLSH2-4L

Series consists of Dual pairs of Common Anode,

Common Cathode, and In-Series Low VF Schottky

Diodes, manufactured in a PICOmini™ SOT-563

surface mount package.

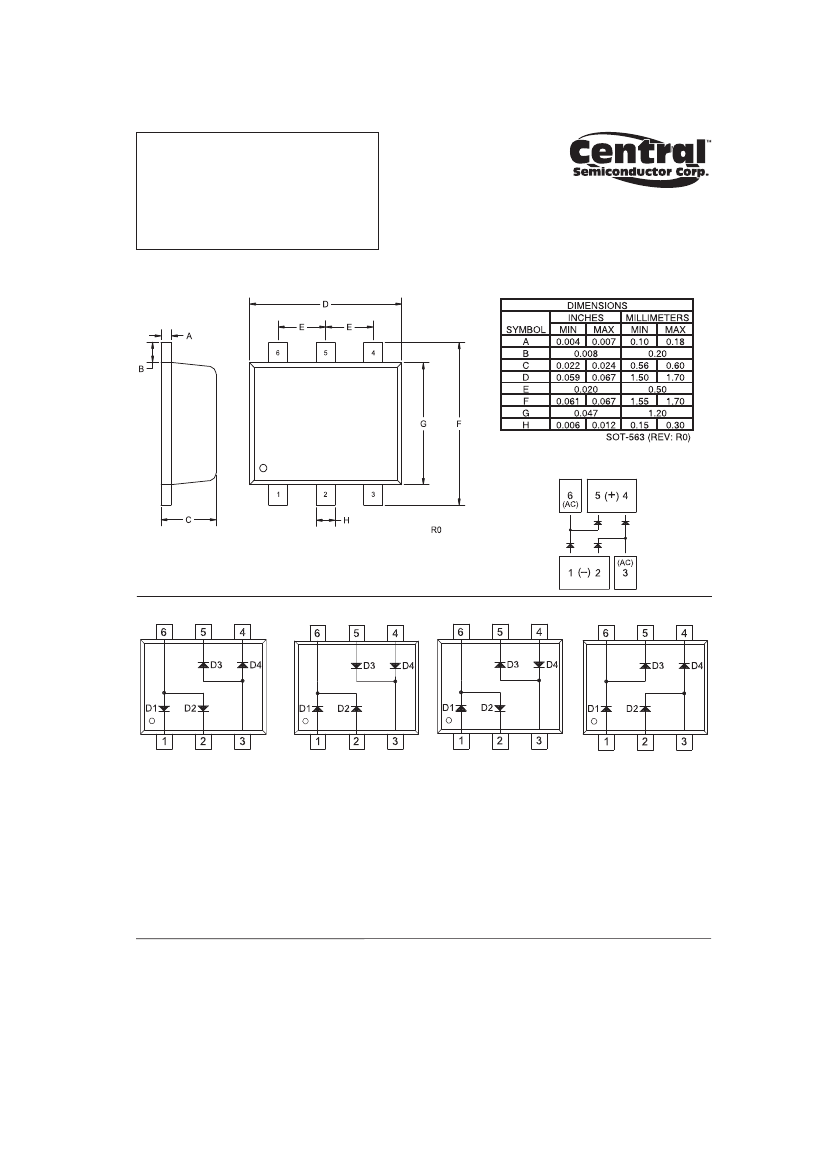

SOT-563 CASE

•

Devices are

Halogen Free

by design

DEVICE CONFIGURATIONS:

CMLSH2-4LA

DUAL PAIR,

CMLSH2-4LC

DUAL PAIR,

CMLSH2-4LS

DUAL PAIR,

CMLSH2-4LSB

DUAL PAIR,

COMMON ANODE

COMMON CATHODE

IN SERIES

MARKING

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

200

300

600

350

300

150

-65 to +150

357

CODE:

4AL

4CL

4SL

4SB

UNITS

°C

°C/W

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=10ms

Power Dissipation (Note 1)

Power Dissipation (Note 2)

Power Dissipation (Note 3)

Operating and Storage Junction Temperature

Thermal Resistance (Note 1)

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

TYP

MAX

BVR

trr

VR=30V

IR=100μA

IF=100μA

IF=500μA

IF=1.0mA

IF=50mA

IF=100mA

VR=1.0V, f=1.0MHz

IF=IR=10mA, Irr=1.0mA, RL=100Ω

4.0mm

UNIT

100

0.24

0.29

0.31

0.54

0.67

200

0.26

0.31

0.33

0.60

0.75

5.0

Notes: (1) Ceramic or aluminum core PC Board with copper mounting pad area of

(2) FR-4 Epoxy PC Board with copper mounting pad area of 4.0mm

(3) FR-4 Epoxy PC Board with copper mounting pad area of 1.4mm

R3 (20-January 2010)
