TLHG/O/P/R/Y420.
Vishay Semiconductors
High Efficiency LED,
∅
3 mm Tinted Undiffused Package
FEATURES
• Choice of five bright colors
• Standard T-1 package
• Small mechanical tolerances
e1
• Suitable for DC and high peak current
• Wide viewing angle
• Luminous intensity categorized
• Yellow and green color categorized
• Lead (Pb)-free device
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
APPLICATIONS
• Status lights
• OFF/ON indicator
• Background illumination
• Readout lights
• Maintenance lights
• Legend light
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: 3 mm
• Product series: standard
• Angle of half intensity: ± 22°
19220
DESCRIPTION
The TLH.42.. series was developed for standard
applications like general indicating and lighting
purposes.
It is housed in a 3 mm tinted clear plastic package. The
wide viewing angle of these devices provides a high
on-off contrast.
Several selection types with different luminous
intensities are offered. All LEDs are categorized in
luminous intensity groups. The green and yellow LEDs
are categorized additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
PARTS TABLE
PART
TLHR4200
TLHR4201
TLHR4205
TLHO4200
TLHO4201
TLHY4200
TLHY4201
TLHY4205
TLHG4200
TLHG4201
TLHG4205
TLHP4200
TLHP4201
COLOR, LUMINOUS INTENSITY
Red, I
V
> 4 mcd
Red, I
V
> 6.3 mcd
Red, I
V
> 10 mcd
Soft orange, I
V
> 4 mcd
Soft orange, I
V
> 10 mcd
Yellow, I
V
> 4 mcd
Yellow, I
V
> 6.3 mcd
Yellow, I
V
> 10 mcd
Green, I
V
> 6.3 mcd
Green, I
V
> 10 mcd
Green, I
V
> 16 mcd
Pure green, I
V
> 2.5 mcd
Pure green, I
V
> 6.3 mcd
TECHNOLOGY
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaP on GaP
GaP on GaP
GaP on GaP
GaP on GaP
GaP on GaP
Document Number 83005
Rev. 1.4, 18-Sep-07
www.vishay.com
1
TLHG/O/P/R/Y420.
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
1)
TLHR42.., TLHO42.., TLHY42..,TLHG42.., TLHP42..
PARAMETER
Reverse voltage
2)
TEST CONDITION
SYMBOL
V
R
I
F
VALUE
6
30
1
100
100
- 40 to + 100
- 55 to + 100
260
400
UNIT
V
mA
A
mW
°C
°C
°C
°C
K/W
DC Forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/
ambient
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
Driving the LED in reverse direction is suitable for a short term application
t
≤
5 s, 2 mm from body
t
p
≤
10 µs
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
Optical and Electrical Characteristics
1)
tlhr42..,
red
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
Note:
1)
T
amb
= 25 °C, unless otherwise specified
Optical and Electrical Characteristics
1)
tlhO42..,
Soft Orange
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
Note:
1)
T
amb
= 25 °C, unless otherwise specified
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
PART
TLHO4200
TLHO4201
SYMBOL
I
V
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
50
MIN
4
10
598
605
± 22
2.4
3
10
TYP.
10
18
611
MAX
UNIT
mcd
mcd
nm
nm
deg
V
µA
pF
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
PART
TLHR4200
TLHR4201
TLHR4205
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
50
MIN
4
6.3
10
612
635
± 22
2
3
10
TYP.
8
10
15
625
MAX
UNIT
mcd
mcd
mcd
nm
nm
deg
V
µA
pF
www.vishay.com
2
Document Number 83005
Rev. 1.4, 18-Sep-07
TLHG/O/P/R/Y420.
Vishay Semiconductors
Optical and Electrical Characteristics
1)
tlhy42..,
yellow
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
Note:
1)
T
amb
= 25 °C, unless otherwise specified
Optical and Electrical Characteristics
1)
tlhg42..,
green
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
1)
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
PART
TLHY4200
TLHY4201
TLHY4205
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
MIN
4
6.3
10
581
TYP.
10
15
20
MAX
UNIT
mcd
mcd
mcd
594
585
± 22
2.4
50
3
10
nm
nm
deg
V
µA
pF
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
PART
TLHG4200
TLHG4201
TLHG4205
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
MIN
6.3
10
16
562
TYP.
10
15
20
MAX
UNIT
mcd
mcd
mcd
575
565
± 22
2.4
50
3
10
nm
nm
deg
V
µA
pF
Note:
T
amb
= 25 °C, unless otherwise specified
Optical and Electrical Characteristics
1)
tlhp42..,
pure green
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
PART
TLHP4200
TLHP4201
SYMBOL
I
V
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
50
MIN
2.5
6.3
555
555
± 22
2.4
3
10
TYP.
7
20
565
MAX
UNIT
mcd
mcd
nm
nm
deg
V
µA
pF
1)
Note:
T
amb
= 25 °C, unless otherwise specified
Document Number 83005
Rev. 1.4, 18-Sep-07
www.vishay.com
3
TLHG/O/P/R/Y420.
Vishay Semiconductors
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
N
P
Q
R
S
T
U
V
W
X
Y
Z
AA
BB
CC
DD
MIN
2.5
4.0
6.3
10
16
25
40
63
100
130
180
240
320
430
575
750
LUMINOUS INTENSITY (MCD)
MAX
5.0
8.0
12.5
20
32
50
80
125
200
260
360
480
640
860
1150
1500
Note:
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11 %.
The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped on each bag
(there will be no mixing of two groups in each bag).
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where wavelength groups are measured and binned, single wavelength groups will be shipped on any one bag.
In order to ensure availability, single wavelength groups will not be orderable.
COLOR CLASSIFICATION
DOM. WAVELENGTH (NM)
GROUP
0
1
2
3
4
5
6
7
8
598
600
602
604
606
608
601
603
605
607
609
611
581
583
585
587
589
591
584
586
588
590
592
594
562
564
566
568
570
572
565
567
569
571
573
575
SOFT ORANGE
MIN.
MAX.
MIN.
YELLOW
MAX.
MIN.
GREEN
MAX.
PURE GREEN
MIN.
555
558
560
562
MAX.
559
561
563
565
Note:
Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ± 1 nm.
www.vishay.com
4
Document Number 83005
Rev. 1.4, 18-Sep-07
TLHG/O/P/R/Y420.
Vishay Semiconductors

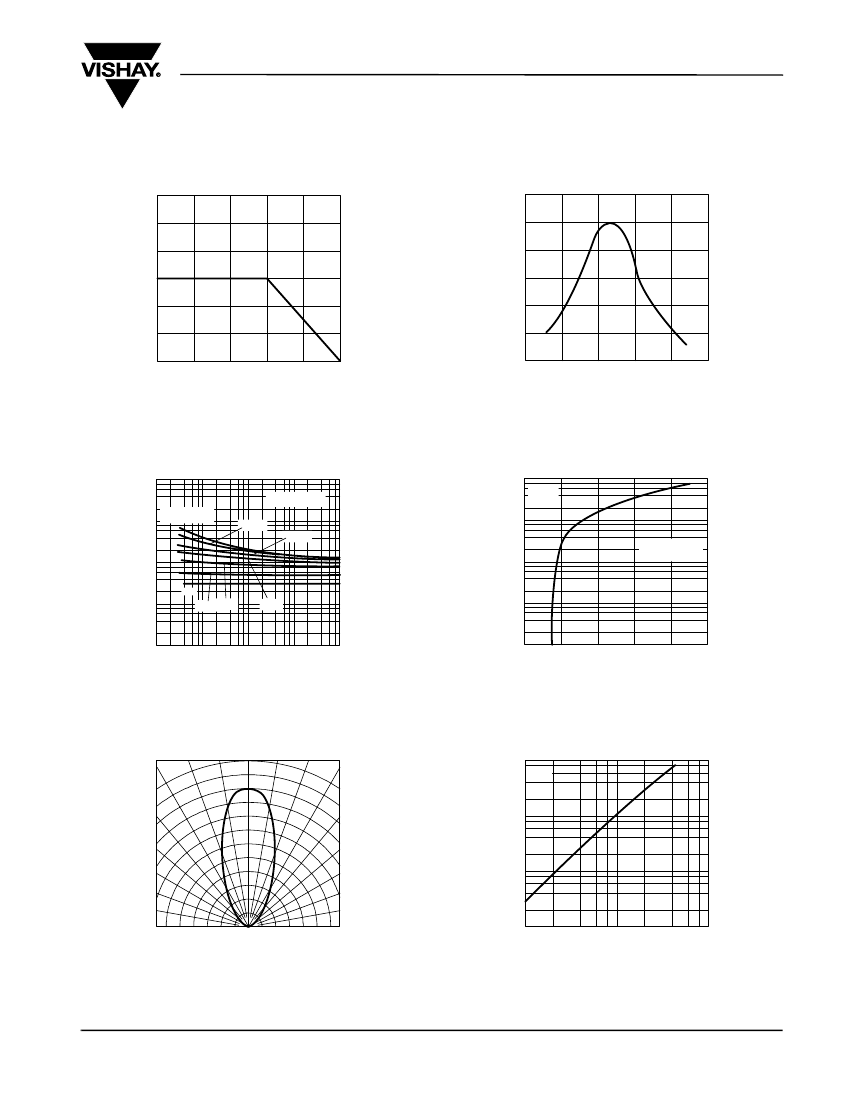

TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
60
1.2
I
V
re l
- Relative Luminous Intensity
red
1.0
0.8
0.6
0.4
0.2
0
590
95 10040
I
F
- Forward Current (mA)
50
40
30
20
10
0
0
20
40
60
80
100
610
630
650
670
690
95 10905
T
amb
- Ambient Temperature (°C)
λ
-
Wavelength
(nm)
Figure 1. Forward Current vs. Ambient Temperature
Figure 4. Relative Intensity vs. Wavelength
10000
I
F
- Forward Current (mA)
T
amb
≤
65
°
C
I
F
- Forward Current (mA)
1000
t
p
/T= 0.01
0.02
0.05
100
1
10
0.5 0.2
0.1
1000
red
100
t
p
/T = 0.001
t
p
= 10
µs
10
1
1
0.01
95 10047
0.1
0.1
1
10
100
0
95 10026
t
p
- Pulse Length (ms)
2
4
6
8
V
F
- Forward
Voltage
(V)
10
Figure 2. Forward Current vs. Pulse Length
Figure 5. Forward Current vs. Forward Voltage
0°
I
Vrel
- Relative Luminous Intensity
10°
20°
I
v
rel
- Relative Luminous Intensity
30°
10
red
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.2
0.4
0.6
1
0.1
0.01
1
95 10029
95 10041
10
I
F
- Forward Current (mA)
100
Figure 3. Rel. Luminous Intensity vs. Angular Displacement
Figure 6. Relative Luminous Intensity vs. Forward Current
Document Number 83005
Rev. 1.4, 18-Sep-07
www.vishay.com
5
