NFM21CC221R1H3L

Description
Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805
CategoryAnalog mixed-signal IC    filter
File Size95KB，4 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric Compare View All

NFM21CC221R1H3L Overview

Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805

NFM21CC221R1H3L Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMurata
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCAPACITOR FOR SIGNAL LINES
capacitance220 µF
filter typeFEED THROUGH CAPACITOR
high0.85 mm
Minimum insulation resistance1000 MΩ
JESD-609 codee3
length2 mm
Manufacturer's serial numberNFM21C
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
method of packingTAPE AND REEL
physical sizeL2XB1.25XH0.85 (mm)
Rated current0.3 A
Rated voltage50 V
Terminal surfaceTin (Sn)
width1.25 mm

NFM21CC221R1H3L Preview

This is the PDF file of catalog No.C31E-6
C31E6.pdf 01.5.29
On-Board Type (DC) EMI Suppression Filters(EMIFILr)
Chip EMIFILr NFM21C/NFM3DC/NFM41C Series
s
Features
1. Small and low profile of 2.0mmx1.25mmx0.85mm (NFM21C)
enables high density mounting.
2. The 3 terminal structure enables high performance in
high frequency range.
3. Use original electrode structure which realize
excellent solderability.
NFM21C
0.6±0.2
2.0±0.2
0.85±0.1
The chip solid "EMIFIL" series is a chip type 3-terminal
EMI suppression filter. It can reduce residual
inductance to an extremely low level making it excellent
for noise suppression at high frequencies.
An electrostatic capacitance range of 22pF to 22,000pF
enables suppression of noise at specific frequencies.
4
+0.2
0.2 -0.1
1.25±0.1
0.3±0.2
(in mm)
s
Applications
• PCs and peripherals which emit high amount of noise
• Compact size equipment such as PDA, PC card and mobile
telecommunication equipments
• Severe EMI suppression and high impedance circuits
such as digital circuits
NFM3DC
1.1±0.3
3.2±0.2
(2)
(1)
0.05min.
(4)
0.3±0.2
(in mm)
(3)
1.25±0.2
0.7±0.2
1.5±0.3
4.5±0.3
(4)
1.6±0.3
(1)
(3)
NFM41C
0.3
+0.3
-0.2
(2)
0.4±0.3
(in mm)
NFM21C Series
Part Number
NFM21CC220U1H3
NFM21CC470U1H3
NFM21CC101U1H3
NFM21CC221R1H3
NFM21CC471R1H3
NFM21CC102R1H3
NFM21CC222R1H3
NFM21CC223R1H3
Capacitance
(pF)
22 +20%,-20%
47 +20%,-20%
100 +20%,-20%
220 +20%,-20%
470 +20%,-20%
1000 +20%,-20%
2200 +20%,-20%
22000 +20%,-20%
Rated Voltage
(Vdc)
50
50
50
50
50
50
50
50
Rated Current
300mA
300mA
300mA
300mA
300mA
300mA
300mA
1A
Insulation Resistance
(M ohm)
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
1.0±0.2
69
This is the PDF file of catalog No.C31E-6
C31E6.pdf 01.5.29
s
Equivalent Cirucit
s
Insertion Loss Characteristics (Typical)
NFM21C Series
0
22pF
47pF
20
Insertion Loss (dB)
100pF
220pF
470pF
40
22000pF
60
2200pF
80
1000pF
Input
Output
4
* no polarity.
GND
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
NFM3DC Series
Part Number
NFM3DCC220U1H3
NFM3DCC470U1H3
NFM3DCC101U1H3
NFM3DCC221R1H3
NFM3DCC471R1H3
NFM3DCC102R1H3
NFM3DCC222R1H3
NFM3DCC223R1H3
Capacitance
(pF)
22 +50%,-20%
47 +50%,-20%
100 +50%,-20%
220 +50%,-20%
470 +50%,-20%
1000 +50%,-20%
2200 +50%,-20%
22000 +50%,-20%
Rated Voltage
(Vdc)
50
50
50
50
50
50
50
50
Rated Current
(mA)
300
300
300
300
300
300
300
300
Insulation Resistance
(M ohm)
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
s
Equivalent Cirucit
s
Insertion Loss Characteristics (Typical)
NFM3DC Series
0
20
Insertion Loss (dB)
22000pF
40
2200pF
1000pF
470pF
Input
Output
60
* no polarity.
GND
220pF
100pF
47pF
22pF
80
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
NFM41C Series
Part Number
NFM41CC220U2A3
NFM41CC470U2A3
NFM41CC101U2A3
NFM41CC221U2A3
NFM41CC471R2A3
NFM41CC102R2A3
NFM41CC222R2A3
NFM41CC223R2A3
Capacitance
(pF)
22 +50%,-20%
47 +50%,-20%
100 +50%,-20%
220 +50%,-20%
470 +50%,-20%
1000 +50%,-20%
2200 +50%,-20%
22000 +50%,-20%
Rated Voltage
(Vdc)
100
100
100
100
100
100
100
100
Rated Current
(mA)
300
300
300
300
300
300
300
300
Insulation Resistance
(M ohm)
10000 min.
10000 min.
10000 min.
10000 min.
10000 min.
10000 min.
10000 min.
10000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
70
This is the PDF file of catalog No.C31E-6
C31E6.pdf 01.5.29
s
Equivalent Cirucit
s
Insertion Loss Characteristics (Typical)
NFM41C Series
0
22pF
20
2200pF
Insertion Loss (dB)
22000pF
40
100pF
220pF
60
47pF
470pF
80
1000pF
Input
Output
4
* no polarity.
GND
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
71
This is the PDF file of catalog No.C31E-6
C31E6.pdf 01.5.29

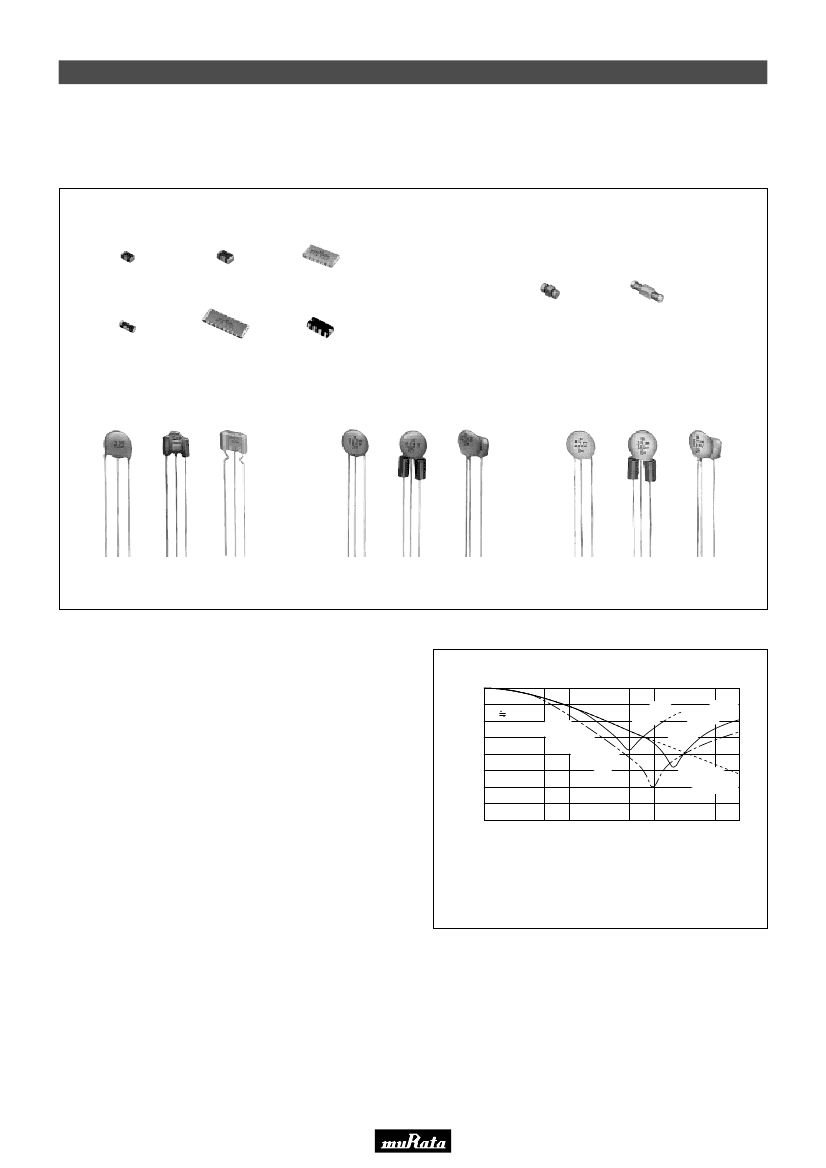

Outlines of EMI Suppression Filter (EMIFILr) for DC Line
oChip
Solid EMIFILr
oT-type
Chip EMIFILr
oDisk
Type EMIFILr
Chip Solid EMIFIL
r
............P.69–74
P.87–90
T-type Chip EMIFIL
r
...........P.84–86
NFM21C
NFM21P
NFA6CC
NFE31P
NFE61P/H
NFM3DC
NFAC1C
NFA31C
Disk Type EMIFIL
r
...........P.132–137
DS-6
DS-9
DS-9H
"
This capacitor type EMI suppression filter has a large
noise suppression effect at frequencies ranging from a
few MHz to hundreds of MHz. This type of filter is used
widely as a universal, high performance EMI suppression
component.
"
The chip solid EMIFILr incorporates a built-in three-
terminal capacitor, eliminating the lead wire and thereby
increasing the high-frequency performance characteristic.
"
The T-type chip EMIFILr is a chip EMI suppression filter
with a built-in feed-thru capacitor. The use of ferrite
beads on input and output terminals minimizes
resonance with surrounding circuits.
"
Whatever the situation, 3-terminal construction reduces
residual inductance, thereby substantially improving
noise suppression at frequencies over 10MHz.
[Comparison of Insertion Loss Characteristics]
0
Insertion Loss [dB]
20
40
60
80
C 2200PF
l
ina
rm itor
Te c
2- apa
C
3-
(B Te
(D uilt- rmin
SS in al
9H Be Ca
B3 ad) pac
2E
ito
r
22
2Q
55
)
or
cit )
pa Q55
a
l C 222
ina 32E
rm B
Te 9H
3- SN
(D
Ide
Chaal
Cap racte
acit ristrc
or
of
1
5
10
50
100
500 1000
Frequency [MHz]
A 3-terminal capacitor has a high self resonance frequency than
general 2-terminal type and exhibits effective noise suppression at
high frequency
18
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

NFM21CC221R1H3L Related Products

NFM21CC221R1H3L NFM21CC101U1H3L NFM21CC102R1H3L NFM21CC220U1H3L NFM21CC222R1H3L NFM21CC223R1H3L NFM21CC470U1H3L NFM21CC471R1H3L
Description Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 1A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805 Feed Through Capacitor, 1 Function(s), 50V, 0.3A, EIA STD PACKAGE SIZE 0805
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Maker Murata Murata Murata Murata Murata Murata Murata Murata
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES CAPACITOR FOR SIGNAL LINES
capacitance 220 µF 100 µF 1000 µF 22 µF 2200 µF 22000 µF 47 µF 470 µF
filter type FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR FEED THROUGH CAPACITOR
high 0.85 mm 0.85 mm 0.85 mm 0.85 mm 0.85 mm 0.85 mm 0.85 mm 0.85 mm
Minimum insulation resistance 1000 MΩ 1000 MΩ 1000 MΩ 1000 MΩ 1000 MΩ 1000 MΩ 1000 MΩ 1000 MΩ
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3
length 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Installation type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1 1 1
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
physical size L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm) L2XB1.25XH0.85 (mm)
Rated current 0.3 A 0.3 A 0.3 A 0.3 A 0.3 A 1 A 0.3 A 0.3 A
Rated voltage 50 V 50 V 50 V 50 V 50 V 50 V 50 V 50 V
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn)
width 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm
Manufacturer's serial number NFM21C NFM21C NFM21C NFM21C - NFM21C NFM21C NFM21C

Recommended Resources

Lighting switch automatic circuit

Infrared remote control dimmer light circuit

Four-way latch remote control switch receiving and control circuit

Multifunctional audio transcriber

Power supply circuit diagram of PMV-P-14VC color display

Single-chip Chinese alarm and chord ring tone circuit

[Help]Socket problem
I am a beginner in socket programming. I wrote an example to read the server time on Windows Mobile 6.0, but it didn't work. Since I am a beginner, there must be many mistakes. Please give me some adv...
shdh6015 Embedded System
nios ii cannot register interrupts for two pios
The environment is win7 64bit, quartus ii 11.0.Two pio edge interrupts are used. When registering interrupts, it is found that one interrupt always fails to register successfully. The interrupt code i...
gddxz FPGA/CPLD
Simple current affairs test
No Baidu allowed, just go by your current feeling. See how much attention people pay to current affairs:pleased: Have the two sessions been held? If neither of the two sessions was held, it is conside...
mmmllb Talking
Why can't I install the FOR WINCE program I downloaded from the Internet?
When I click to execute a file, it prompts that the file is not a valid WIN32 application. Why? The same is true for those green software!...
中流砥拄 Embedded System
UTC time zone conversion of single chip microcomputer
1. Background I have done a project on STM32 low-power signal acquisition before, using the STM32L031 microcontroller. The project requirements are as follows: The device is powered by a battery, dete...
fish001 Microcontroller MCU
Find books for systematic study
Is there any book that introduces the principles of UART, I2C, SPI, ADC, timer counter, etc. in detail?...
白依涛 51mcu
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. CC1210MPYSV6BN390
  2. CRCW20101R80FKEF
  3. BA-4120-36LV
  4. RN73H1JTTD24R0D100
  5. SIP-4701-06-5761-B
  6. T543V227K004AHE0187640
  7. CRHV2010AB2207K100S2
  8. 210ER-2001-FB10
  9. 1.5KE150_B0_00001
  10. PJD20N06A
  11. QR1206J62R0P05Z
  12. SZ0603G470TF

Popular Articles

  1. Precautions for using winding deformation tester!
  2. stm8 pwm implementation core code
  3. Being at the forefront of automotive electronics, where will the automotive industry head?
  4. Enics expands its manufacturing facility in Suzhou, China
  5. Forward radar is eliminated: "double-eye" corner radar is enough
  6. STM8 MCU serial port sending pin and receiving pin are used separately
  7. Effective in Q4! TSMC's logic IC foundry prices may increase by 10%
  8. Magetech: The price of the company's LTCC products this year has increased slightly compared to last year
  9. Chinese companies expand supply, South Korean optical lens parts manufacturer Haesung Optics closes business
  10. OPPO's first self-developed chip is released

Technical ResourceMore

  1. Radio Diagram Recognition and Circuit Fault Analysis PDF eBook
  2. Design of broadband DC amplifier based on single chip microcomputer MSP430F449
  3. 103 Specifications of Sifang Protection and Measurement and Control Device
  4. STM32USART1 serial port receiving program (interrupt mode)
  5. Design of Parallel Execution Model in xPC Real-time Semi-Physical Simulation Platform
  6. Design of remote monitoring system for temperature and humidity based on SHT11
  7. Analysis of the world\'s three major RFID standard systems
  8. Composition and application of 80C51 timer counter
  9. BSC Operation and Maintenance Training Course (Ericsson)
  10. Maintenance Essentials and Examples of the Top Ten Movement Color Displays_Volume 3

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2402  376  621  2711  287  49  8  13  55  6
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
