CMPD2004C

Description
0.25 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size592KB，3 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

CMPD2004C Overview

0.25 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE

CMPD2004C Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCentral Semiconductor
Parts packaging codeSOT-23
package instructionSOT-23, 3 PIN
Contacts3
Reach Compliance Code_compli
ECCN codeEAR99
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1 V
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Maximum non-repetitive peak forward current4 A
Number of components2
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current0.225 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.35 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage300 V
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

Preview

Download Datasheet
CMPD2003
CMPD2003A
CMPD2003C
CMPD2003S
CMPD2004
CMPD2004A
CMPD2004C
CMPD2004S
w w w. c e n t r a l s e m i . c o m
SURFACE MOUNT
HIGH VOLTAGE
SILICON SWITCHING DIODE
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMPD2003,
CMPD2003A, CMPD2003C, CMPD2003S, CMPD2004,
CMPD2004A, CMPD2004C and CMPD2004S types
are silicon switching diodes manufactured by the
epitaxial planar process, designed for applications
requiring high voltage capability.

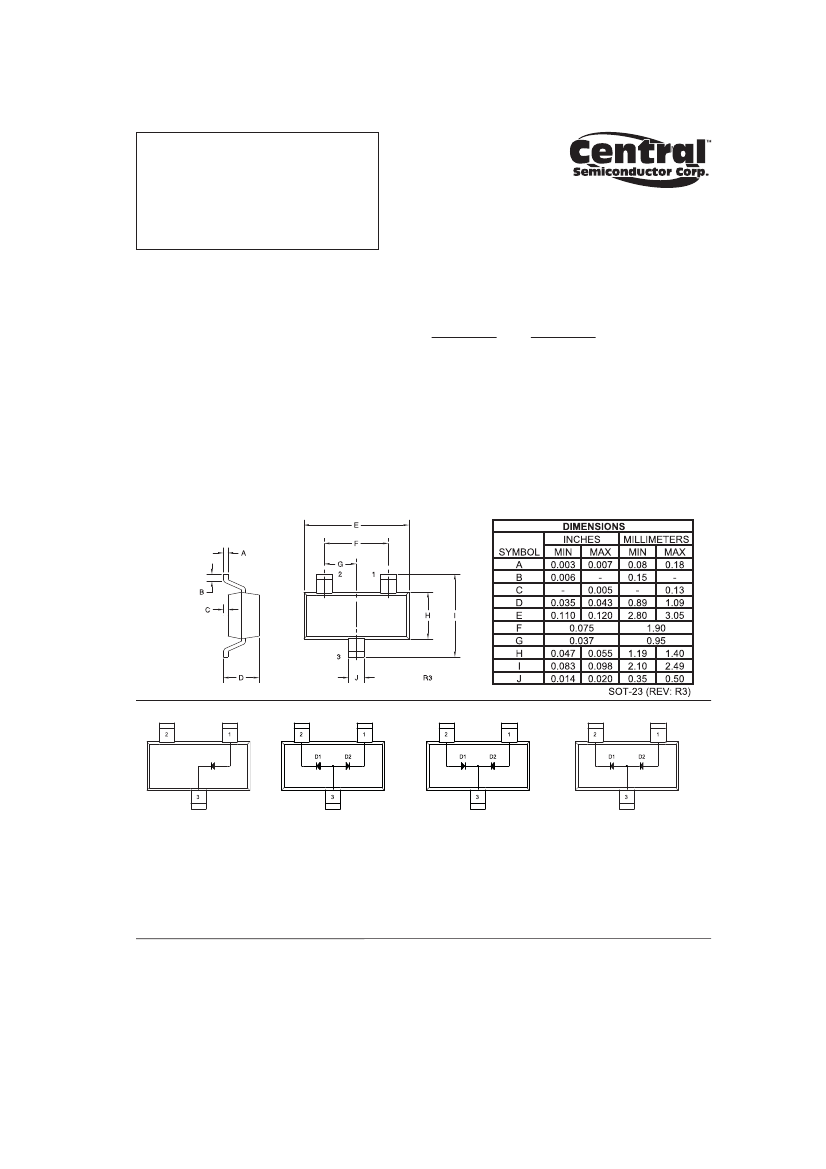

SOT-23 CASE
The following configurations are available:
CMPD2003
SINGLE
CMPD2003A
DUAL, COMMON ANODE
CMPD2003C
DUAL, COMMON CATHODE
CMPD2003S
DUAL, IN SERIES
CMPD2004
SINGLE
CMPD2004A
DUAL, COMMON ANODE
CMPD2004C
DUAL, COMMON CATHODE
CMPD2004S
DUAL, IN SERIES
MARKING
MARKING
MARKING
MARKING
MARKING
MARKING
MARKING
MARKING
CODE:
CODE:
CODE:
CODE:
CODE:
CODE:
CODE:
CODE:
A82
8A2
C3C
C3S
D53
DB8
DB7
DB6
CMPD2003
CMPD2003A
CMPD2003C
MAXIMUM RATINGS:
(TA=25°C)
Continuous Reverse Voltage
Peak Repetitive Reverse Voltage
Average Forward Current
Continous Forward Current
Peak Repetitive Forward Current
Peak Forward Surge Current, tp=1.0μs
Peak Forward Surge Current, tp=1.0s
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VR
VRRM
IO
IF
IFRM
IFSM
IFSM
PD
TJ, Tstg
Θ
JA
CMPD2003S
200
250
200
250
625
CMPD2004
CMPD2004A
CMPD2004C
CMPD2004S
240
300
200
225
UNITS
V
V
mA
mA
mA
A
A
mW
°C
°C/W
4.0
1.0
350
-65 to +150
357
R9 (25-January 2010)
