FP6559 datasheet, PDF - EEWORLD Datasheet

FP6559: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, FP-4; CategoryWireless rf/communication Radio frequency and microwave; File Size627KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

FP6559 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, FP-4

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

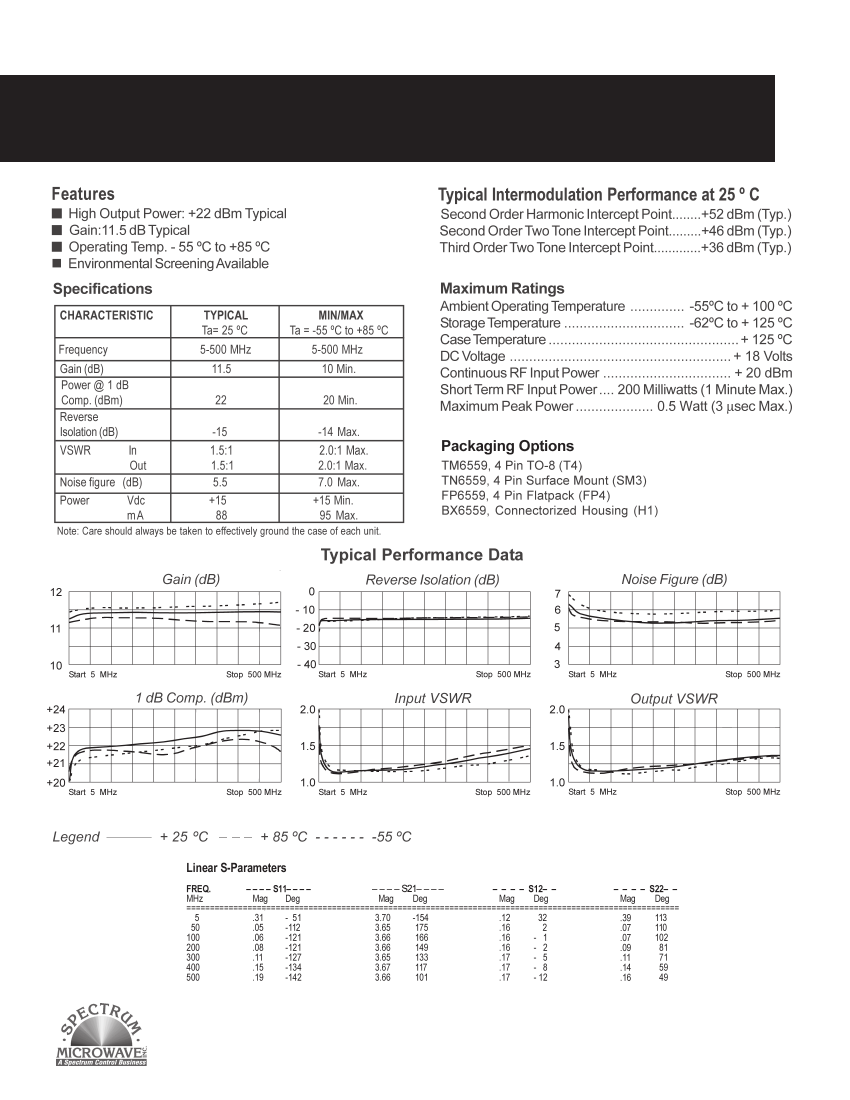

RF Amplifier

High Output Power: +22 dBm

Model TM6559

5 to 500 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

310

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	FP6559	BX6559	TN6559	TM6559
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, FP-4	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM3, 4 PIN	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, T4, TO-8, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10 dB	10 dB	10 dB	10 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	Spectrum Microwave	Spectrum Microwave	-	Spectrum Microwave
