TR9771-9 datasheet, PDF - EEWORLD Datasheet

TR9771-9: Description1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, T9, TO-8B, 12 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size631KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TR9771-9 Overview

1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, T9, TO-8B, 12 PIN

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	25 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1700 MHz
Minimum operating frequency	1200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2

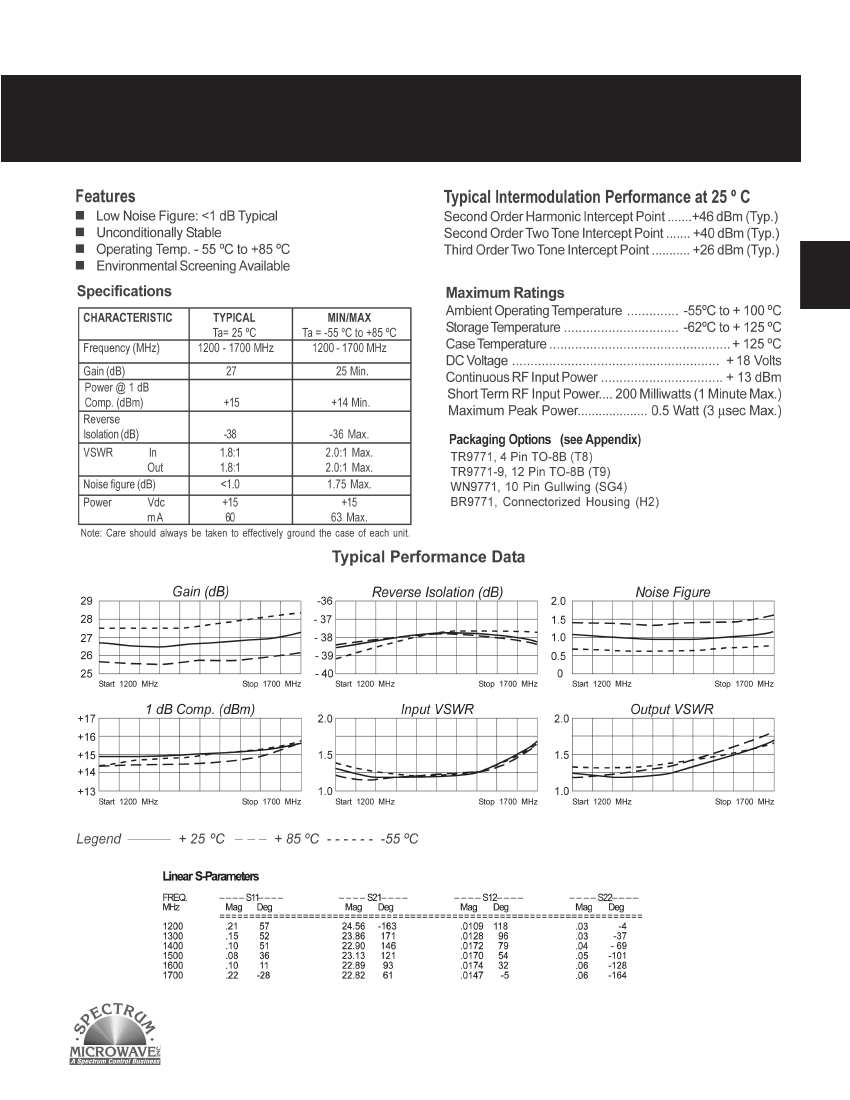

RF Amplifier

Low Noise: <1 dB

Model TR9771

1200 to 1700 MHz

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

507

Amplifiers

	TR9771-9	TR9771	WN9771	BR9771
Description	1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, T9, TO-8B, 12 PIN	1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, TO-8, 4 PIN	1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, SG4, 10 PIN	1200 MHz - 1700 MHz RF/MICROWAVE NARROW BAND LOW POWER AMPLIFIER, H2, TO-8B
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT	COMPONENT	COAXIAL
Gain	25 dB	25 dB	25 dB	25 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1700 MHz	1700 MHz	1700 MHz	1700 MHz
Minimum operating frequency	1200 MHz	1200 MHz	1200 MHz	1200 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	-	1	1	1
