GVXO-42F/SEI33.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-42F/SEI33.0MHZ

GVXO-42F/SEI33.0MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 33MHz Nom, ROHS COMPLIANT,DIP-14/4; CategoryPassive components oscillator; File Size126KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-42F/SEI33.0MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 33MHz Nom, ROHS COMPLIANT,DIP-14/4

GVXO-42F/SEI33.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	15%
linearity	10%
Manufacturer's serial number	GVXO-42F
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	33 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 30 pF
physical size	20.8mm x 13.08mm x 7.4mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

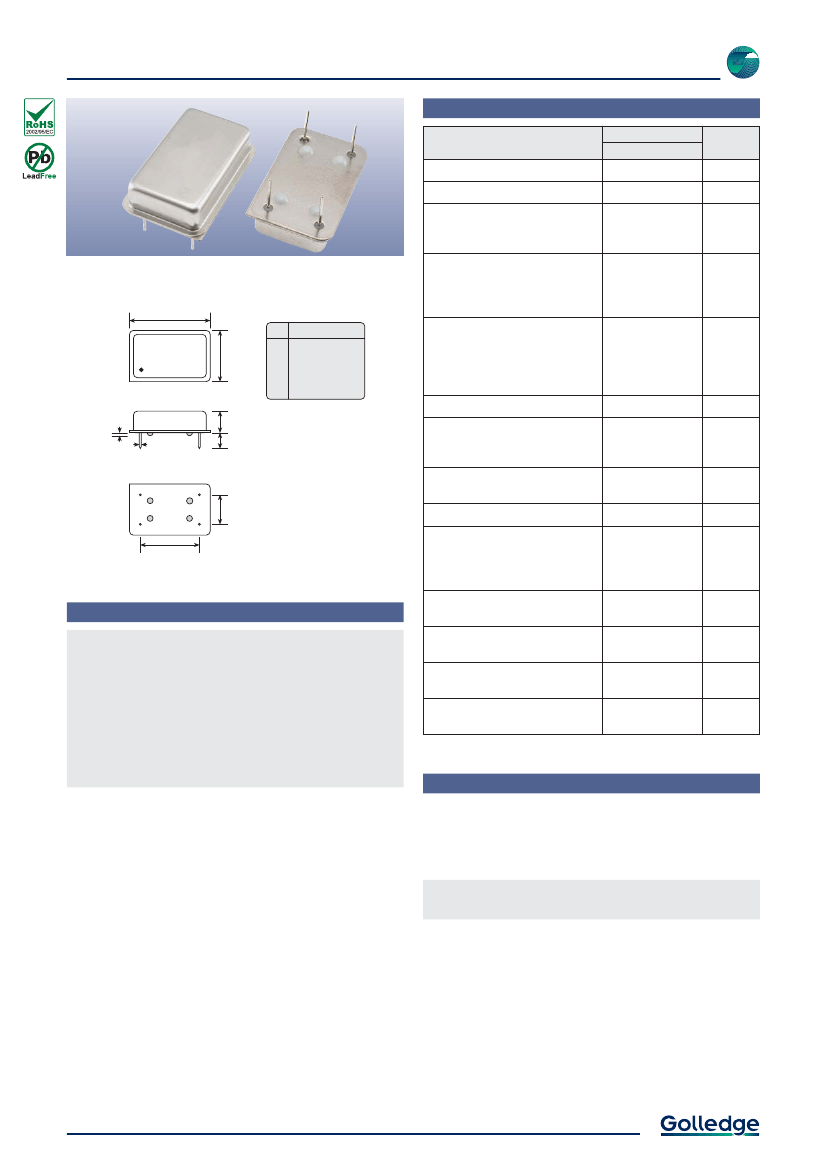

5V VCXO - High Frequency

Specifications

GVXO-42F

Parameters

Package:

14 pin DIL (full size)

33.0 ~ 160MHz

Frequency range:

Product

GVXO-42F



















Option

Codes

Voltage control:

+2.5V ±2.5V, 10% linearity

> 100kΩ input impedance

Frequency pullability (min):

±80ppm

±150ppm

±200ppm

13.08

(max)

0.80

0.46Ø

5.70

(max)

4.00

(min)

CONNECTION

Control voltage

Ground

Output

Supply

20.80

(max)

Frequency stability:

±100ppm

±50ppm

±25ppm

±20ppm

±15ppm

Ageing:

±5.0ppm max per year

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

7.62

Supply voltage (V

+5.0V (±5%)

15.24

Supply current:

30mA max (33.0 ~ 45.0MHz)

40mA max (>45.0 ~ 125MHz)

50mA max (>125 ~ 160MHz)

Driving ability:

Logic levels:

30pF HCMOS

5 LSTTL

Features



5.0V supply

Low cost for volume applications

Choice of pullability & stability

Express deliveries for non-standard items

Industrial temperature range option

‘0’ level = +0.4V max

‘1’ level = 90%V

min

Waveform symmetry @ 50%V

40:60 max

Rise / fall time:

5ns max (0.4V ~ 90%V

min)



Standard.



Optional - Please specify required code(s) when ordering

Ordering Information

Product + option codes + frequency

eg:

GVXO-42F/SC 49.1520MHz

±150ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-42F/X) denotes a custom spec.



±15ppm and ±20ppm stability may not be available over -40+85°C,

depending on frequency. Check with our sales office.

Tel:

+44 1460 256 100

12 Jul 2001

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
