IPC3PAD5LOS

Description
Pushbutton Switch, SPST, Momentary-tactile, 0.2A, 50VDC, Solder Terminal, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size289KB,8 Pages
ManufacturerAPEM
Environmental Compliance
Download Datasheet Parametric View All

IPC3PAD5LOS Overview

Pushbutton Switch, SPST, Momentary-tactile, 0.2A, 50VDC, Solder Terminal, Through Hole-straight

IPC3PAD5LOS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAPEM
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typePLUNGER
body height13.2 mm
Body length or diameter12 mm
Contact (AC) maximum rated R load.5A@48VAC
Maximum contact current (AC)0.5 A
Maximum contact current (DC)0.2 A
Contact (DC) maximum rated R load.2A@50VDC
Maximum contact voltage (AC)48 V
Maximum contact voltage (DC)50 V
Electrical life500000 Cycle(s)
illuminationRED LED
Manufacturer's serial numberIP
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force5 N
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
method of packingBULK
sealEPOXY TERMINAL SEALED; IP67
surface mountNO
Switch actionMOMENTARY-TACTILE
switch functionSPST
Switch typePUSHBUTTON SWITCH
Termination typeSOLDER

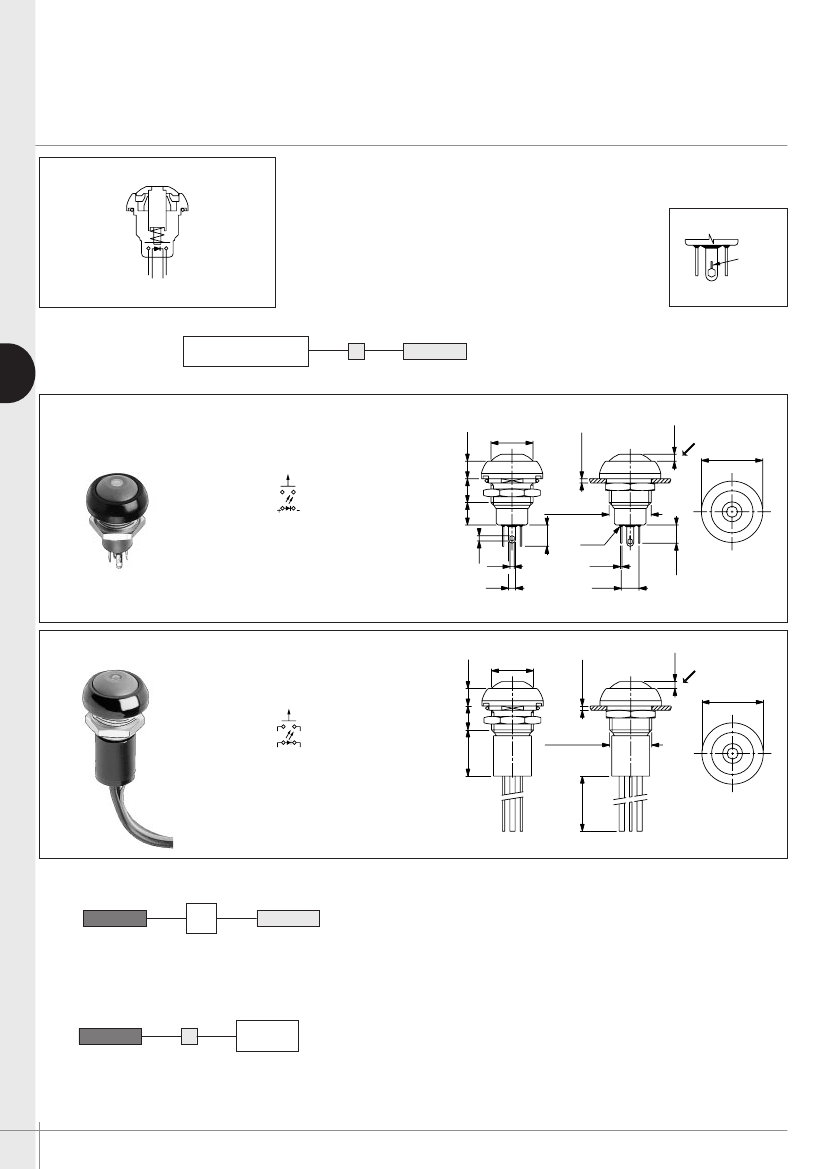

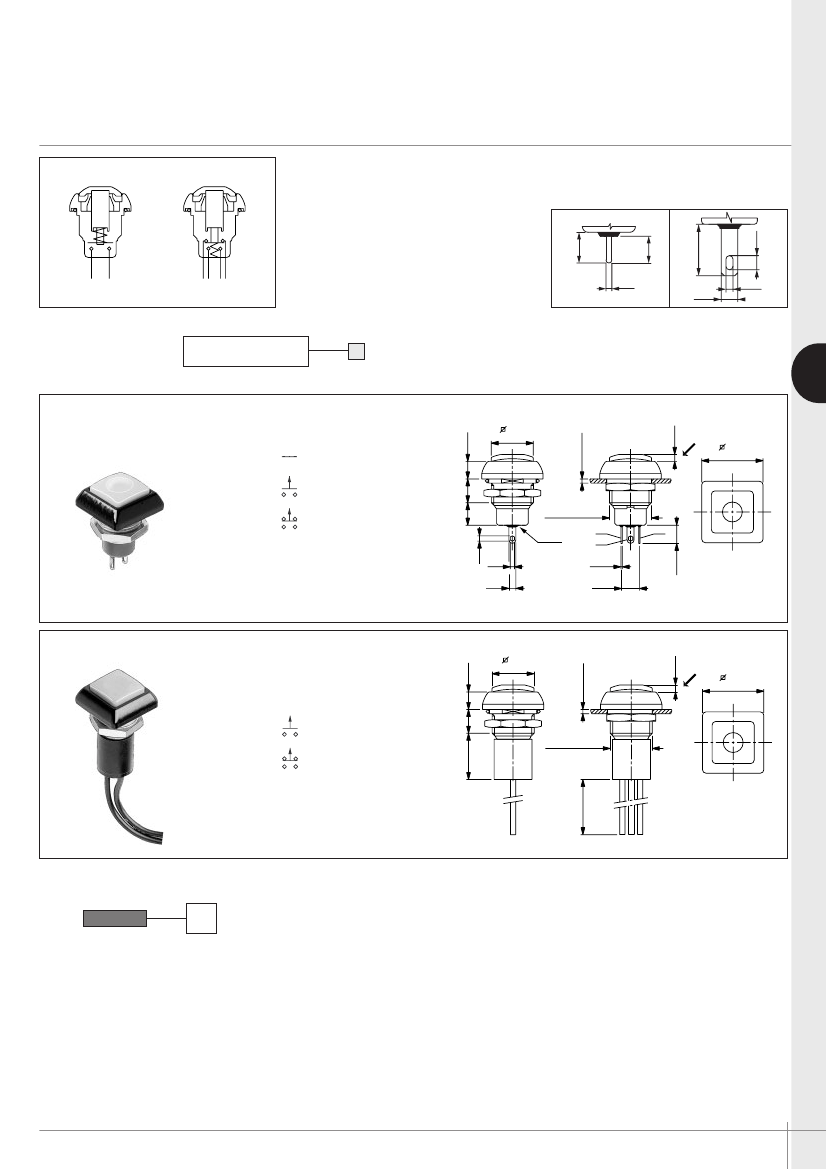

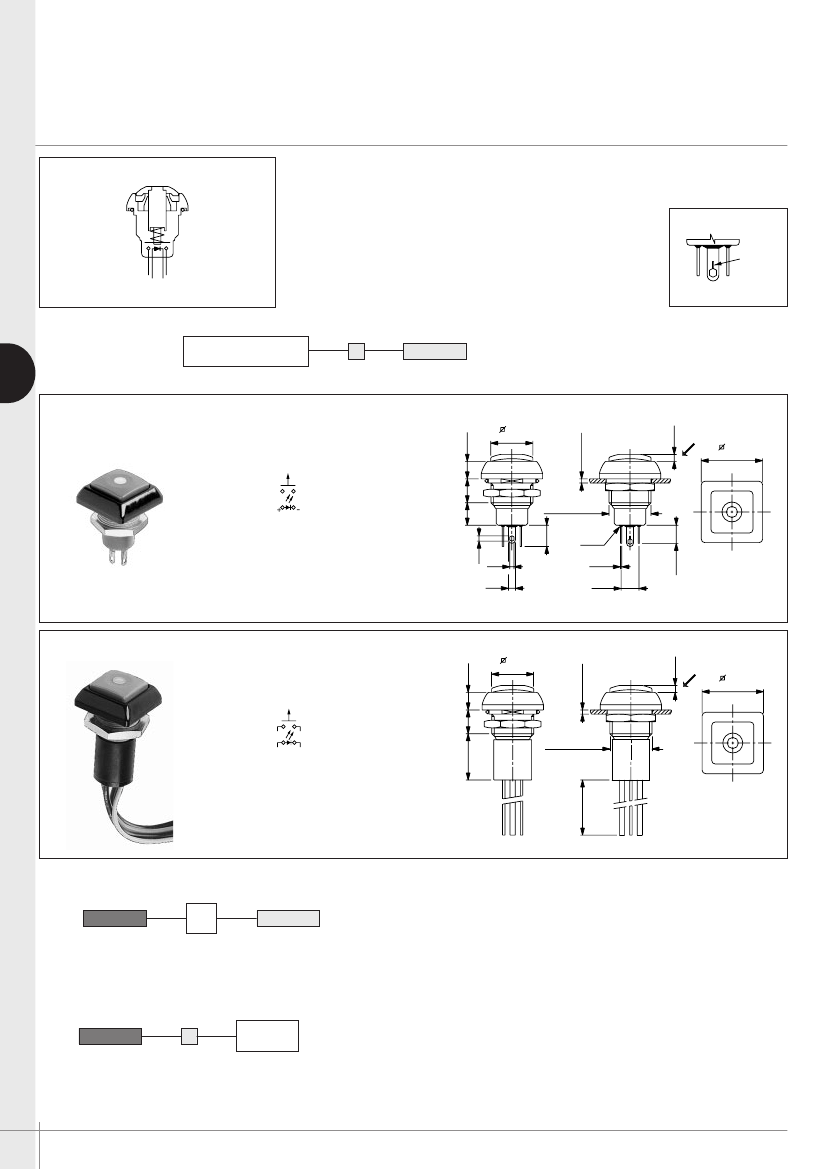

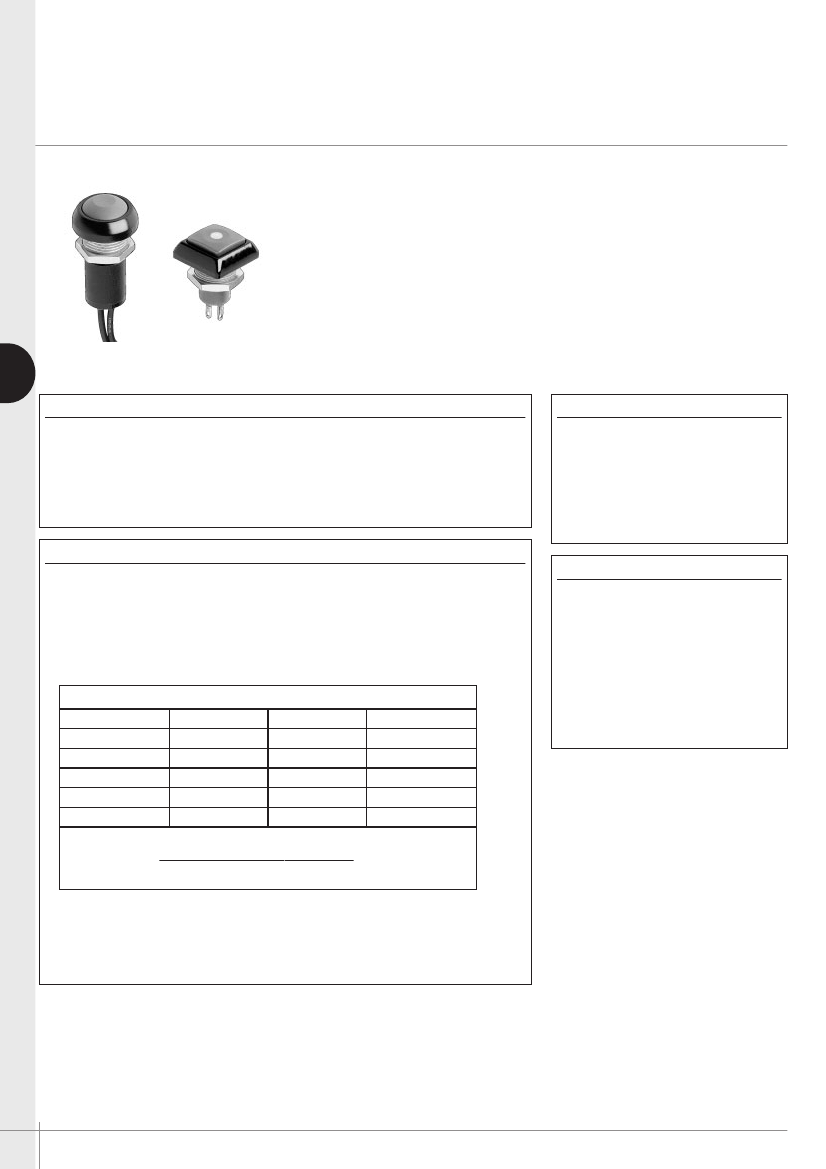

IP series
Momentary pushbutton switches for harsh environments
Distinctive features and specifications
Illuminated and non-illuminated
Tactile feedback
Wide variety of configurations
Sealed to IP 67
B
ENVIRONMENTAL SPECIFICATIONS
GENERAL SPECIFICATIONS
• Degree of protection : IP 67
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Salt spray : IEC 512-6, test 11f
• Robustness (non-illuminated sw.) : IK06 according to EN 50102 (1 joule)
• Operating temperature : -40°C to +125°C
ELECTRICAL SPECIFICATIONS
• Panel thickness : 1,5 mm (.059) min.
4 mm (.157 max.)
• Total travel : 1,5 mm (.059)
• Operating force : 2N to 5N
• Mechanical life : 1.000.000 cycles
• Torque : 1,5 Nm max. applied to nut
• Soldering : 320°C max. for 3 sec.
MATERIALS
• Max. current/voltage rating with resistive load :
500mA 48VAC - 200mA 50VDC - 200mA 250VAC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.500 VAC rms
• Electrical life at full load : 500.000 cycles
• Contact bounce : 10 ms
LED COMPONENT SPECIFICATIONS
LED colour
Super red (L0S)
Yellow (L0Y)
Green (L0G)
Blue (L0B)
White (L0W)
Forward current
20mA
20mA
10mA
10mA
20mA
Forward Voltage Max. lumin. intensity
2V
2V
2V
3,5V
3,5V
125 mcd
125 mcd
20 mcd
20 mcd
280 mcd
• Case : thermoplastic UL94-V0
• Plunger : polyamide 6/6
• Bushing/bezel : zinc die-cast
(zamac), black painted
• Contacts : silver, gold plated
• Multi-wire lead AWG20,
section 0,6 mm
2
, UL approved
• LED wire : AWG26
• Lens : polycarbonate
• Terminal seal : epoxy
A resistor must be series-connected by the user.
Resistor value = supply voltage - LED forward voltage
LED forward current
B-30
www.apem.com
APEM
