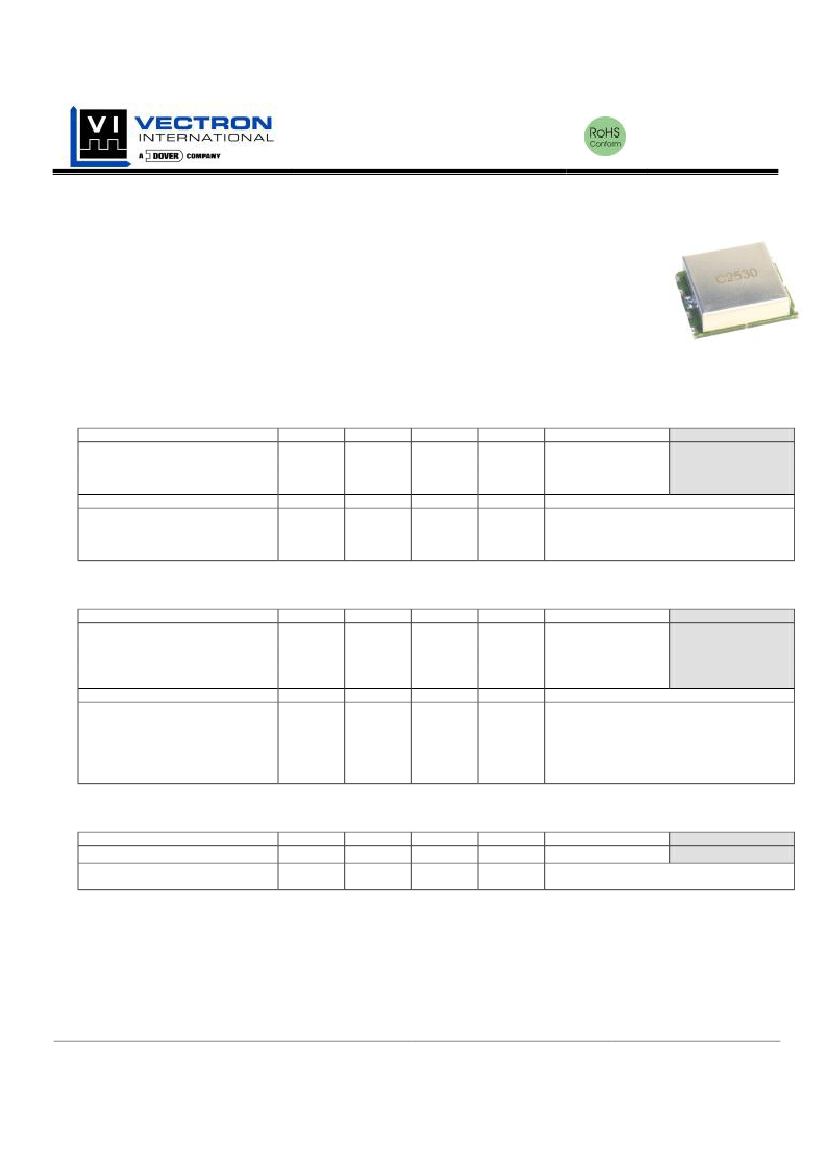

C2530 Overview

PCS Base Stations

C2530
Typical Applications
PCS Base Stations
Land Mobile Radio
Cellular Telephony
Radio in the Local Loop
TCXO
Features
Wide Frequency range
EFC Standard
Standard Surface Mount Package
Meets Stratum 3
STO200
Previous Corning Model Numbers
Frequency range
Standard frequencies
Frequency stabilities
1
[ Standard TCXO]
Parameter
vs. operating temperature range
(Referenced to +25°C)
Min
-2.0
-1.0
-1.0
-0.5
Min
- 1.0
- 0.2
- 0.2
- 1.0
Typ
30 MHz – 900 MHz
67.584; 69.12; 79.488; 155.52, 242.733, 278.08 MHz
Parameter
Initial tolerance
vs. supply voltage change
vs. load change
vs aging /1. Year
Typ
Max.
+2.0
+1.0
+1.0
+0.5
Max.
+1.0
+0.2
+0.2
+1.0
Units
ppm
ppm
ppm
ppm
Units
ppm
ppm
ppm
ppm
Operating temp range
Ordering Code
-20 … +70°C
D206
-20 … +70°C
D106
0 … +50°C
B106
0 … +50°C
B507
Condition
at time of shipment, nominal EFC
V
S
± 5%
Load ± 10%
5
Frequency stabilities
1
[ Stratum 3 TCXO]
Parameter
vs. operating temperature range
(Referenced to +25°C)
Min
-0.8
-0.28
-0.8
-0.28
-0.28
Min
- 1.0
- 0.2
- 0.1
- 2.5
-4.6
Typ
Max.
+0.8
+0.28
+0.8
+0.28
+0.28
Max.
+1.0
+0.2
+0.1
+2.5
-4.6
Units
ppm
ppm
ppm
ppm
ppm
Units
ppm
ppm
ppm
ppm
ppm
Operating temp range
Ordering Code
-40 … +85°C
F807
-30 … +85°C
G287
-20 … +70°C
D807
-20 … +70°C
D287
0 … +50°C
B287
Condition
at time of shipment, nominal EFC
V
S
± 5%
Load ± 10%
5
Parameter
Initial tolerance
vs. supply voltage change
vs. load change
vs aging /15 Years
overall tolerance
Typ
(*Stratum 3 per GR-1244-CORE:
<±4.6 ppm for all causes and 20 years aging,Holdover: <±0.37
ppm over 24 hours (Code: D287 & B287)
Supply voltage (Vs)
Parameter
Supply voltage [Standard]
Current consumption (Freq < 100MHz)
Min
3.135
Typ
3.3
Max.
3.465
50
90
Units
VDC
mA
mA
Condition
Ordering Code
SV033
5
steady state @ +25°C & 3.3VDC & CMOS
steady state @ +25°C & 3.3VDC & PECL
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2006-11-10 · page 1 of 5
Vectron Asia Pacific Sales Office
1F-2F, No 8 Workshop, No 308 Fenju
Road, WaiGaoQiao Free Trade Zone,
Pudong, Shanghai, P.R. China 200131
+86 21 5048 0777 tel.
+86 21 5048 1881 fax
