CMSH3-20MA: DescriptionSURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS; CategoryDiscrete semiconductor diode; File Size283KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMSH3-20MA Overview

SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS

CMSH3-20MA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	SMA, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CMSH3-20MA

CMSH3-40MA

CMSH3-60MA

CMSH3-100MA

w w w. c e n t r a l s e m i . c o m

SURFACE MOUNT

SILICON SCHOTTKY RECTIFIER

3 AMP, 20 THRU 100 VOLTS

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMSH3-20MA

Series 3.0 Amp Surface Mount Silicon Schottky Rectifier

is a high quality, well constructed, highly reliable

component designed for use in all types of commercial,

industrial, entertainment, computer, and automotive

applications. To order devices on 12mm Tape and Reel

(5000/13” Reel), add TR13 suffix to part number.

MARKING CODE: SEE MARKING CODE TABLE ON

FOLLOWING PAGE

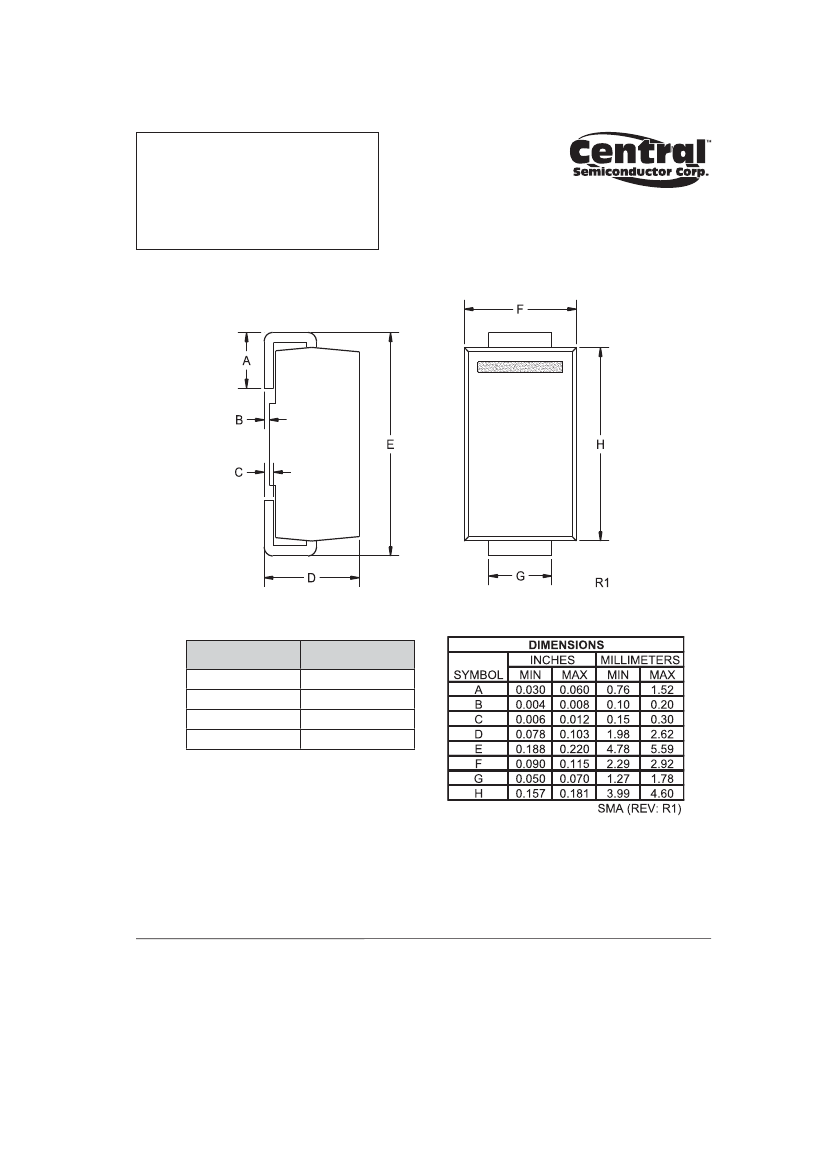

SMA CASE

FEATURES:

• High current capability

• Flammability classification UL94V-0

• Superior lot to lot consistency

• Low cost

• High reliability

• “C” bend construction provides strain relief when

mounted on pc board

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

SYMBOL

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TL=75°C)

Peak Forward Surge Current, tp=8.3ms

Operating and Storage Junction Temperature

Thermal Resistance

VRRM

VR

VR(RMS)

IO

IFSM

TJ, Tstg

Θ

JL

CMSH3 CMSH3

-20MA -40MA

20

14

40

28

3.0

80

CMSH3 CMSH3

-60MA -100MA

60

42

100

71

UNITS

V

A

°C

°C/W

-65 to +150

30

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

IR

VF

CJ

VR=Rated VRRM

VR=Rated VRRM, TA=100°C

IF=3.0A (CMSH3-20MA, -40MA)

IF=3.0A (CMSH3-60MA)

IF=3.0A (CMSH3-100MA)

VR=4.0V, f=1.0MHz

TYP

MAX

500

20

0.50

0.70

0.85

UNITS

µA

mA

V

pF

280

R2 (8-February 2010)

CMSH3-20MA Related Products

	CMSH3-20MA	CMSH3-20MA_10	CMSH3-100MA	CMSH3-40MA	CMSH3-60MA
Description	SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS	SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS	SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS	SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS	SURFACE MOUNT SILICON SCHOTTKY RECTIFIER 3 AMP, 20 THRU 100 VOLTS
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor
package instruction	SMA, 2 PIN	-	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN
Contacts	2	-	2	2	2
Reach Compliance Code	unknow	-	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V	-	0.85 V	0.5 V	0.7 V
JESD-30 code	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e0	-	e0	e0	e0
Maximum non-repetitive peak forward current	80 A	-	80 A	80 A	80 A
Number of components	1	-	1	1	1
Phase	1	-	1	1	1
Number of terminals	2	-	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C
Maximum output current	3 A	-	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20 V	-	100 V	40 V	60 V
surface mount	YES	-	YES	YES	YES
technology	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	C BEND	-	C BEND	C BEND	C BEND
Terminal location	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
