CMSSH-3E: DescriptionENHANCED SPECIFICATION SURFACE MOUNT SILICON SCHOTTKY DIODES; CategoryDiscrete semiconductor diode; File Size678KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMSSH-3E Overview

ENHANCED SPECIFICATION SURFACE MOUNT SILICON SCHOTTKY DIODES

CMSSH-3E Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.33 V
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.75 A
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CMSSH-3E

CMSSH-3AE

CMSSH-3CE

CMSSH-3SE

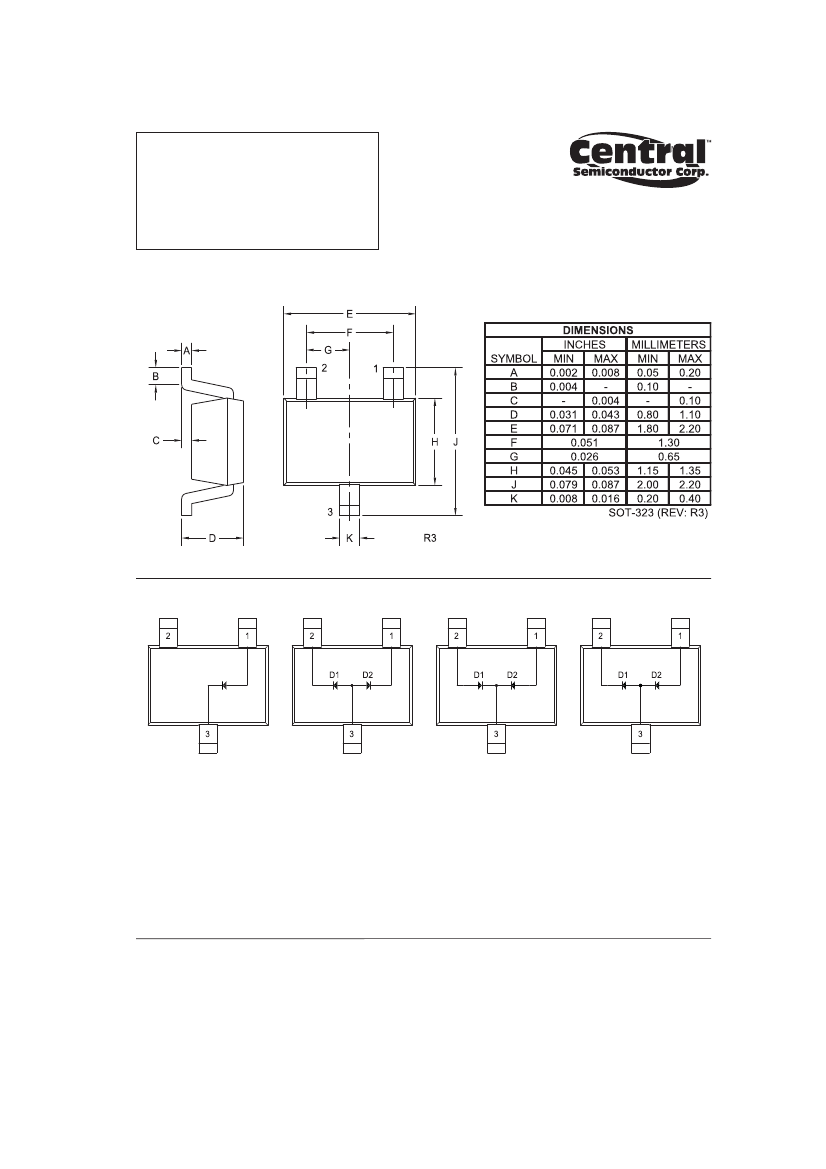

w w w. c e n t r a l s e m i . c o m

ENHANCED SPECIFICATION

SURFACE MOUNT

SILICON SCHOTTKY DIODES

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMSSH-3E

Series types are Enhanced Versions of the

CMSSH-3 Series of Silicon Schottky Diodes in an

SOT-323 Surface Mount Package.

FEATURED ENHANCED SPECIFICATIONS:

♦

from 100mA max to 200mA MAX

SOT-323 CASE

CMSSH-3E:

CMSSH-3AE:

CMSSH-3CE:

CMSSH-3SE:

SINGLE

DUAL, COMMON ANODE

DUAL, COMMON CATHODE

DUAL, IN SERIES

♦

from 30V min to 40V MIN

from 1.0V max to 0.8V MAX

CODE:

31E

3AE

3CE

3SE

UNITS

200

350

750

250

-65 to +150

500

°C

°C/W

MARKING

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

♦

Continuous Forward Current

Power Dissipation

MAXIMUM RATINGS:

(TA=25°C)

♦

Peak Repetitive Reverse Voltage

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=10ms

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

VR=25V

VR=25V, TA=100°C

IR=100µA

IF=2.0mA

IF=15mA

IF=100mA

IF=200mA

VR=1.0V, f=1.0MHz

IF=IR=10mA, Irr=1.0mA, RL=100Ω

0.29

0.37

0.61

0.65

7.0

5.0

0.33

0.42

0.80

1.0

500

100

UNITS

μA

♦

BVR

♦

♦♦

trr

♦

Enhanced specification

♦♦

Additional Enhanced specification

R2 (9-February 2010)
