CMSZDA36V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMSZDA36V

Preview

CMSZDA36V: Description2.78 V, 0.275 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size481KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CMSZDA36V Overview

2.78 V, 0.275 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

CMSZDA36V Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	SUPERMINI-3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	90 Ω
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.275 W
Certification status	Not Qualified
Nominal reference voltage	36 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5.56%
Working test current	2 mA

Preview

Download Datasheet

View All

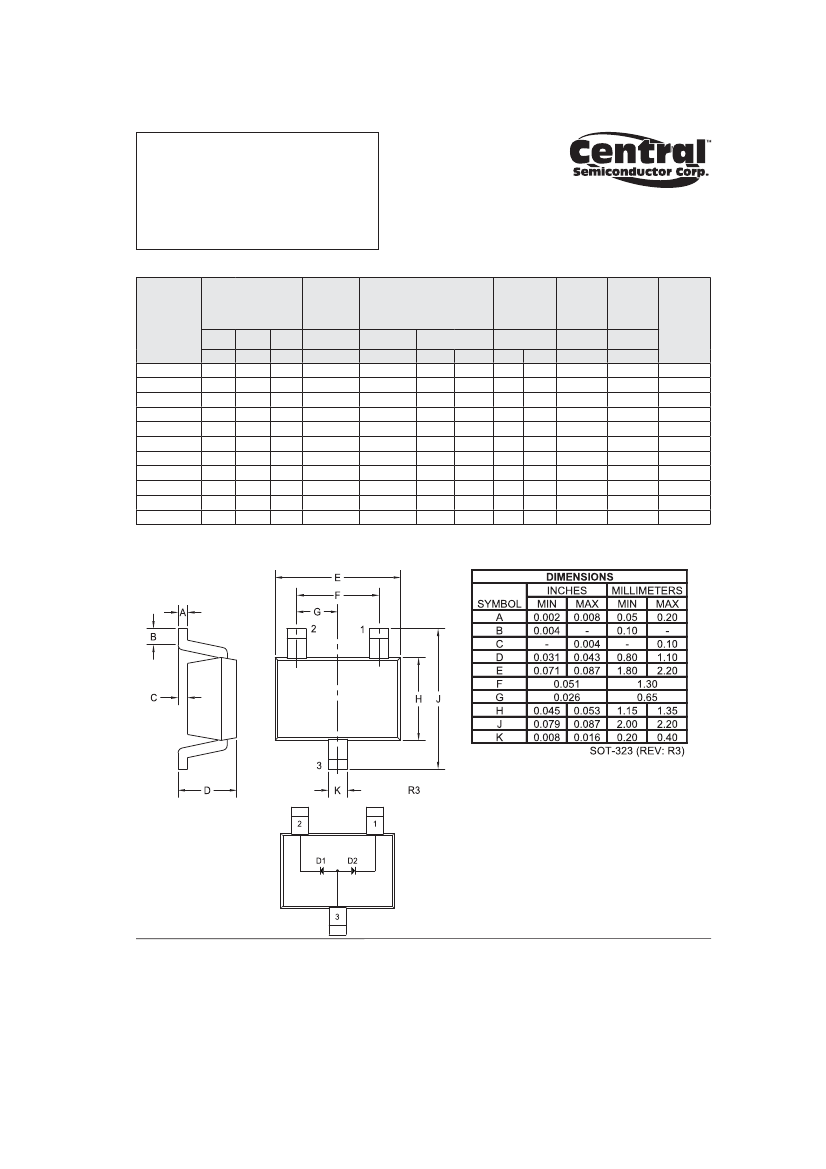

CMSZDA2V4 THRU CMSZDA47V

SURFACE MOUNT

DUAL, COMMON ANODE

SILICON ZENER DIODES

275mW, 2.4 THRU 47 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMSZDA2V4

Series silicon dual zener diode is a highly quality

voltage regulator, connected in a common anode

configuration, for use in industrial, commercial,

entertainment and computer applications.

MARKING CODE: SEE MARKING CODES ON

ELECTRICAL CHARACTERISTICS TABLE

SOT-323 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

PD

TJ, Tstg

Θ

JA

275

-65 to +150

455

UNITS

mW

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C) VF=0.9V MAX @ IF=10mA (for all types)

ZENER

VOLTAGE

TYPE

MIN

V

CMSZDA2V4

CMSZDA2V7

CMSZDA3V0

CMSZDA3V3

CMSZDA3V6

CMSZDA3V9

CMSZDA4V3

CMSZDA4V7

CMSZDA5V1

CMSZDA5V6

CMSZDA6V2

CMSZDA6V8

CMSZDA7V5

CMSZDA8V2

CMSZDA9V1

CMSZDA10V

CMSZDA11V

CMSZDA12V

CMSZDA13V

CMSZDA15V

CMSZDA16V

2.2

2.5

2.8

3.1

3.4

3.7

4.0

4.4

4.8

5.2

5.8

6.5

7.0

7.7

8.5

9.4

10.4

11.4

12.4

13.8

15.3

VZ @ IZT

NOM

V

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

10

11

12

13

15

16

MAX

V

2.6

2.9

3.2

3.5

3.8

4.1

4.6

5.0

5.4

6.0

6.6

7.2

7.9

8.7

9.6

10.6

11.6

12.7

14.1

15.6

17.1

IZT

mA

5.0

ZZT @ IZT

Ω

100

95

90

80

60

40

10

15

20

25

30

40

ZZK @ IZK

Ω

600

500

480

400

150

80

100

150

170

200

mA

1.0

IR @ VR

μA

50

20

10

5.0

2.0

1.0

3.0

2.0

1.0

3.0

2.0

1.0

0.7

0.5

0.2

0.1

0.05

V

1.0

2.0

4.0

5.0

6.0

7.0

8.0

10.5

11.2

IZM

mA

63

57

54

47

45

43

40

38

35

32

28

25

23

21

18

16

15

13

12

11

10

TEST

CURRENT

MAXIMUM

ZENER IMPEDANCE

MAXIMUM

REVERSE

CURRENT

MAXIMUM

ZENER

CURRENT

MAXIMUM

ZENER

VOLTAGE

TEMP.

COEFF.

ΘV

Z

% / °C

-0.06

-0.05

-0.03

0.02

0.03

0.04

0.05

0.06

0.07

0.08

W3W

W4W

W5W

W6W

W7W

W8W

W9W

Z1Z

Z2Z

Z3Z

Z4Z

Z5Z

Z6Z

Z7Z

Z8Z

Z9Z

Y1Y

Y2Y

Y3Y

Y4Y

Y5Y

MARKING

CODE

R5 (9-February 2010)
