CMUSH2-4L_10: DescriptionSURFACE MOUNT HIGH CURRENT, LOW VF SILICON SCHOTTKY DIODE; File Size476KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet View All

CMUSH2-4L_10 Overview

SURFACE MOUNT HIGH CURRENT, LOW VF SILICON SCHOTTKY DIODE

Preview

Download Datasheet

View All

CMUSH2-4L

SURFACE MOUNT

HIGH CURRENT, LOW VF

SILICON SCHOTTKY DIODE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMUSH2-4L is

a High Current Low VF Silicon Schottky Diode in an

SOT-523 Surface Mount Package.

MARKING CODE: U24

SPECIFICATIONS:

• IF = 200mA max.

• BVR = 40 V min.

• VF = 0.5V max @ 200mA

• IFSM = 1.0A

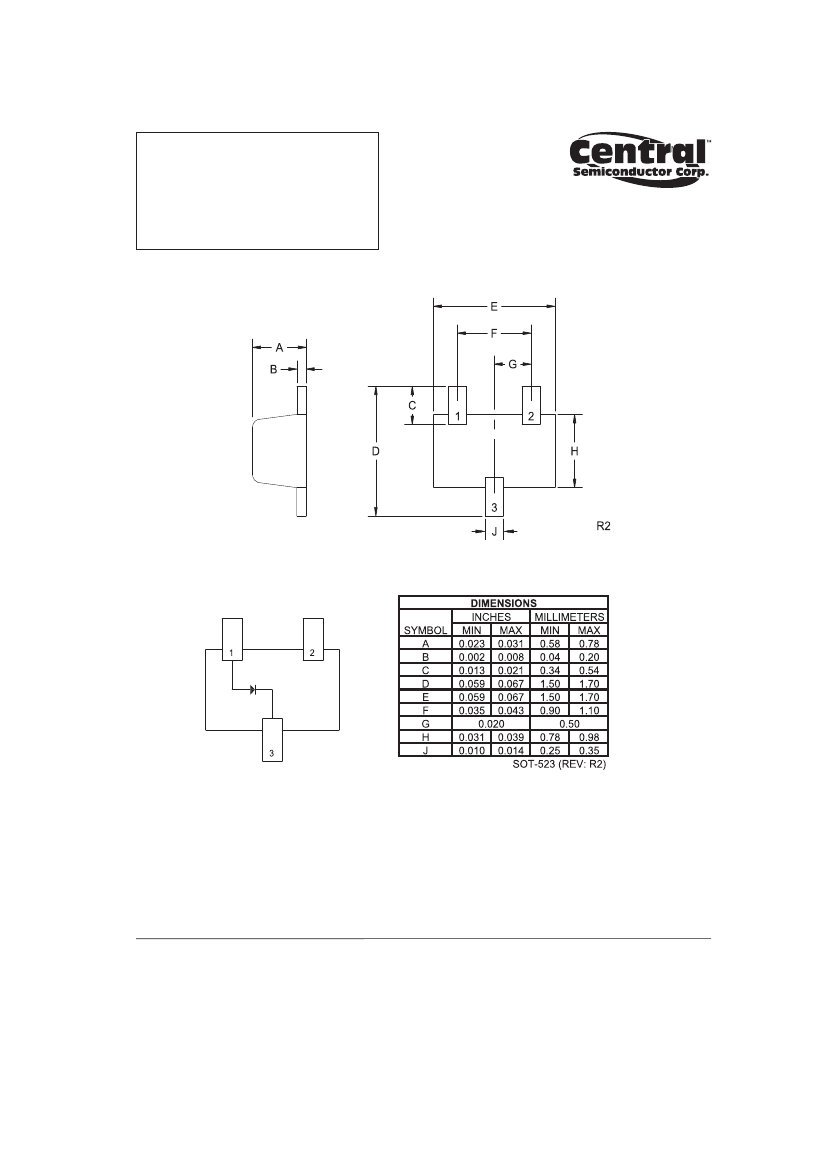

SOT-523 CASE

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=10ms

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IF

IFRM

IFSM

PD

TJ, Tstg

Θ

JA

40

200

350

1.0

250

-65 to +150

500

UNITS

V

mA

A

mW

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

IR

BVR

VF

CT

trr

TEST CONDITIONS

VR=20V

IR=100μA

IF=10mA

IF=100mA

IF=200mA

VR=4.0V, f=1.0MHz

IF=IR=10mA, Irr=1.0mA, RL=100Ω

40

MIN

TYP

11

53

0.24

0.35

0.42

8.5

4.0

0.325

0.4

0.5

10

5.0

MAX

50

UNITS

μA

V

pF

ns
