CMXZ12VTO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMXZ12VTO

CMXZ12VTO: Description36 V, 0.35 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size502KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CMXZ12VTO Overview

36 V, 0.35 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

CMXZ12VTO Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT
package instruction	SOT-26, 6 PIN
Contacts	6
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	SEPARATE, 3 ELEMENTS
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
Number of components	3
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	12 V
Maximum reverse current	0.1 µA
Reverse test voltage	8 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

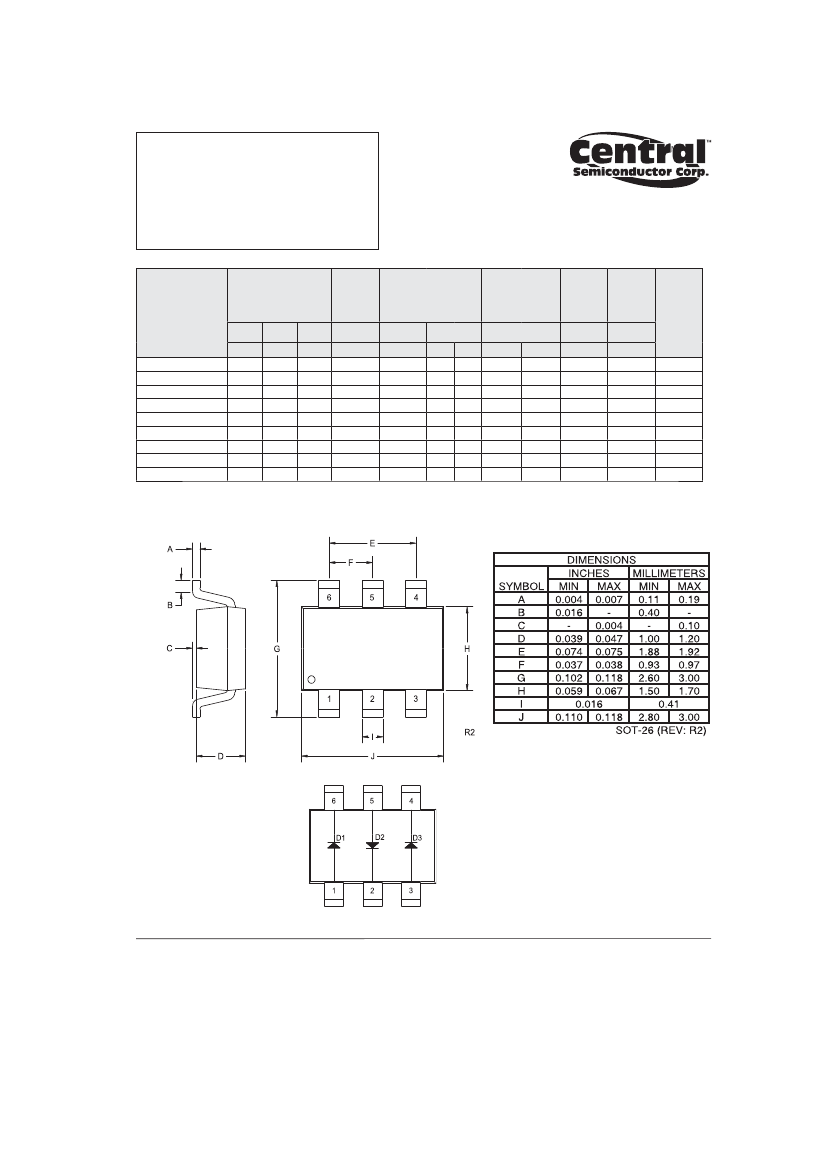

CMXZ2V4TO THRU CMXZ47VTO

SURFACE MOUNT, TRIPLE, ISOLATED

OPPOSING SILICON ZENER DIODES

2.4 VOLTS THRU 47 VOLTS

5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMXZ2V4TO

Series consists of three (3) Isolated Silicon Zener

Diodes arranged in an alternating configuration and

packaged in a surface mount SOT-26 case. These

high quality voltage regulators are for use in industrial,

commercial, entertainment, and computer applications.

MARKING CODE: SEE MARKING CODE ON

ELECTRICAL CHARACTERISTICS TABLE

SOT-26 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

TJ, Tstg

350

-65 to +150

357

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C), VF=0.9V MAX @ IF=10mA (for all types)

ZENER

VOLTAGE

TYPE

MIN

CMXZ2V4TO

CMXZ2V7TO

CMXZ3V0TO

CMXZ3V3TO

CMXZ3V6TO

CMXZ3V9TO

CMXZ4V3TO

CMXZ4V7TO

CMXZ5V1TO

CMXZ5V6TO

CMXZ6V2TO

CMXZ6V8TO

CMXZ7V5TO

CMXZ8V2TO

CMXZ9V1TO

CMXZ10VTO

CMXZ11VTO

CMXZ12VTO

CMXZ13VTO

CMXZ15VTO

CMXZ16VTO

CMXZ18VTO

CMXZ20VTO

2.280

2.565

2.850

3.135

3.420

3.705

4.085

4.465

4.845

5.320

5.890

6.460

7.125

7.790

8.645

9.50

10.45

11.40

12.35

14.25

15.20

17.10

19.0

VZ @ IZT

NOM

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

10.0

11.0

12.0

13.0

15.0

16.0

18.0

20.0

MAX

2.520

2.835

3.150

3.465

3.780

4.095

4.515

4.935

5.355

5.880

6.510

7.140

7.875

8.610

9.555

10.50

11.55

12.60

13.65

15.75

16.80

18.90

21.0

IZT

5.0

TEST

CURRENT

MAXIMUM

ZENER

IMPEDANCE

MAXIMUM

REVERSE

CURRENT

MAXIMUM

ZENER

VOLTAGE

CURRENT

TEMP.

MARKING

COEFF.

CODE

IZM

104

ΘV

% / °C

-0.06

-0.05

-0.03

0.02

0.03

0.04

0.05

0.06

0.07

0.08

CZ2V4

CZ2V7

CZ3V0

CZ3V3

CZ3V6

CZ3V9

CZ4V3

CZ4V7

CZ5V1

CZ5V6

CZ6V2

CZ6V8

CZ7V5

CZ8V2

CZ9V1

CZ10V

CZ11V

CZ12V

CZ13V

CZ15V

CZ16V

CZ18V

CZ20V

ZZT @ IZT

100

ZZK @ IZK

600

500

480

400

150

100

150

170

200

225

1.0

μA

5.0

3.0

2.0

1.0

3.0

2.0

1.0

0.7

0.5

0.2

0.1

0.05

1.0

2.0

4.0

5.0

6.0

7.0

8.0

10.5

11.2

12.6

14.0

R3 (12-February 2010)
