BH3515FV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> BH3515FV

BH3515FV: DescriptionConsumer Circuit, PDSO28, SSOP-28; CategoryOther integrated circuit (IC) Consumption circuit; File Size77KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BH3515FV Overview

Consumer Circuit, PDSO28, SSOP-28

BH3515FV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP-28
Contacts	28
Reach Compliance Code	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G28
JESD-609 code	e3/e2
length	10 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.35 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.6 mm

BH3515FV Preview

01W108A

RF amplifier for Car CD

BH3515FV

Description

BH3515FV is a RF amplifier for Car CD player

that incorporates 3 speed equalization with gain

switching and operating voltage of 3 ~ 5.5V.

Equalizer circuit is applied to x1 time speed,

x1.5 times speed, and x2 times speed.

Gain switching pin is incorporated for CD-RW

Dimension (Units : mm)

10.0 ± 0.2

7.6 ± 0.3

5.6 ± 0.2

1.15 ± 0.1

0.1

0.15 ± 0.1

0.65

0.1

0.22 ± 0.1

Features

1) Multi-read type (CD, CD-R, CD-RW)

2) For x1speed, x1.5speed, x2speed

3) Operating power supply voltage range: 3V~5.5V

SSOP-B28

Applications

CD, CD-R, CD-RW read type Car CD,

Car CD with shock-proof function

Absolute Maximum Ratings

(Ta=25°C)

Parameter

Power supply voltage

Power dissipation

Operating temperature range

Storage temperature range

Derating : 8.0mW/°C for operation above Ta=25°C

Symbol

Vcc

Topr

Tstg

–40

–55

Limits

7.0

800

Unit

+85

+125

°C

October, 2001

0.3Min.

Recommended Operating Conditions

(Ta=25°C)

Parameter

Power supply voltage

Symbol

Min.

3.0

Typ.

3.3

Max.

5.5

Unit

Electrical characteristics

(Unless otherwise noted; Ta=25°C, Vcc=3.3V)

Parameter

No load consumption current

Adder amp. gain 1 (at normal)

Adder amp. gain 2 (at RW)

AGC operation level 1

AGC operation level 2

Frequency characteristic 1

Frequency characteristic 2

Frequency characteristic 3

RFDET detection level

Symbol

RF1

RF2

OPAGC1

OPAGC2

RFDET

Min.

580

0.95

Typ.

700

1.15

3.5

100

Max.

820

1.35

130

Unit

mVp-p

Vp-p

mVp-p

Normal gain

Gain up

Conditions

VCC=3.3V, f=500kHz, VIN=500mVpp

VCC=5V, f=500kHz, VIN=500mVpp

f=144k/720k, SPDCTL=Low (x1 speed)

f=216k/1.08M, SPDCTL=Hi–Z (x1.5 speed)

f=288k/1.44M, SPDCTL=High (x2 speed)

f=500kHz, RFDET=H®L

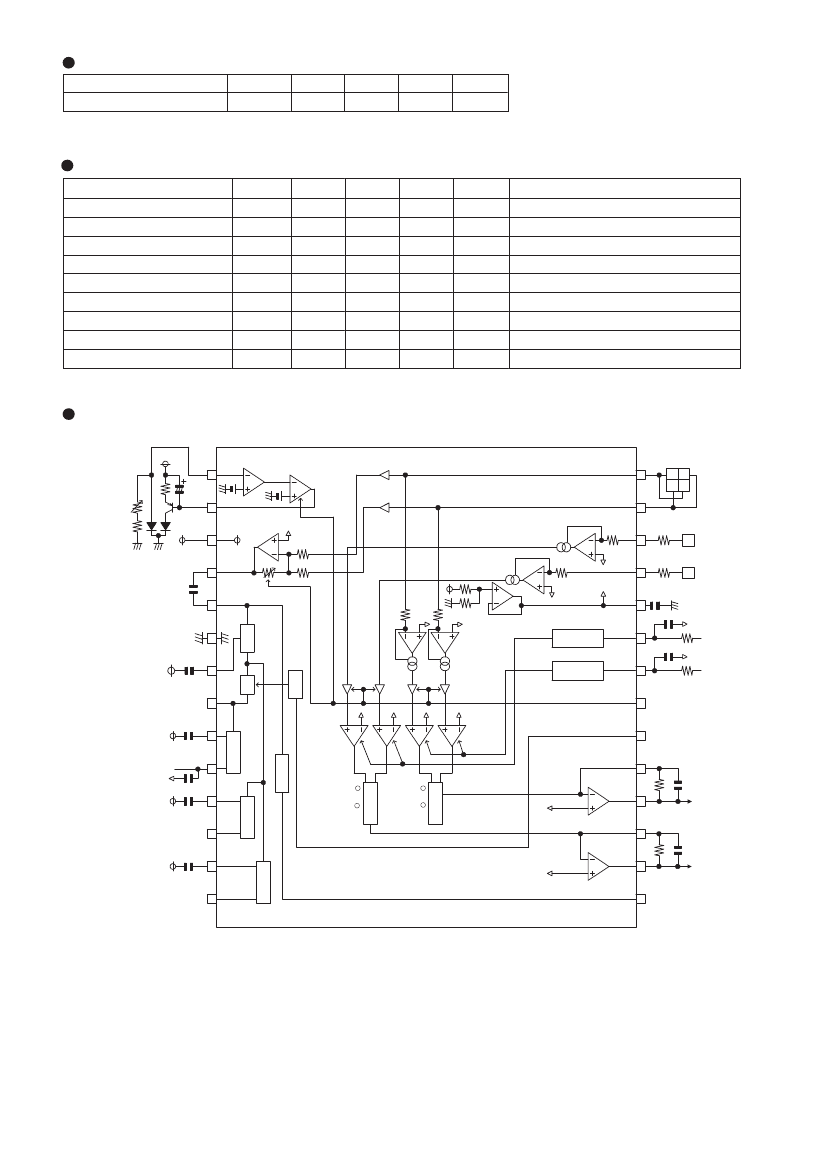

Application Circuit

A+C

10µ

A B

D C

2.2K

B+D

RTIN

VCC

RFO

1µ

(inversion)

RTIN

VREF

RFI

12K

1µ

0.1µ

AGC

GND

0.1µ

(inversion)

Balance control

TBAL

0.1µ

68K

SPD

CAGC

ARF

0.033µ

Balance control

FBAL

68K

GCTL

CEA

ENVO

ENV DET

SPDCTL

VGA

RF DET

VGA

FEN

CFE

0.01µ

2200p

Subtraction

RFE

BDO

CSBDO

BDO

2200p

E-F

BAL

B-A

BAL

FEO

TEN

CTE

RTE

OFTR

CSBRT

OFTR

TEO

NRFDET

BH3515FV

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document use silicon as a basic material.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.0
