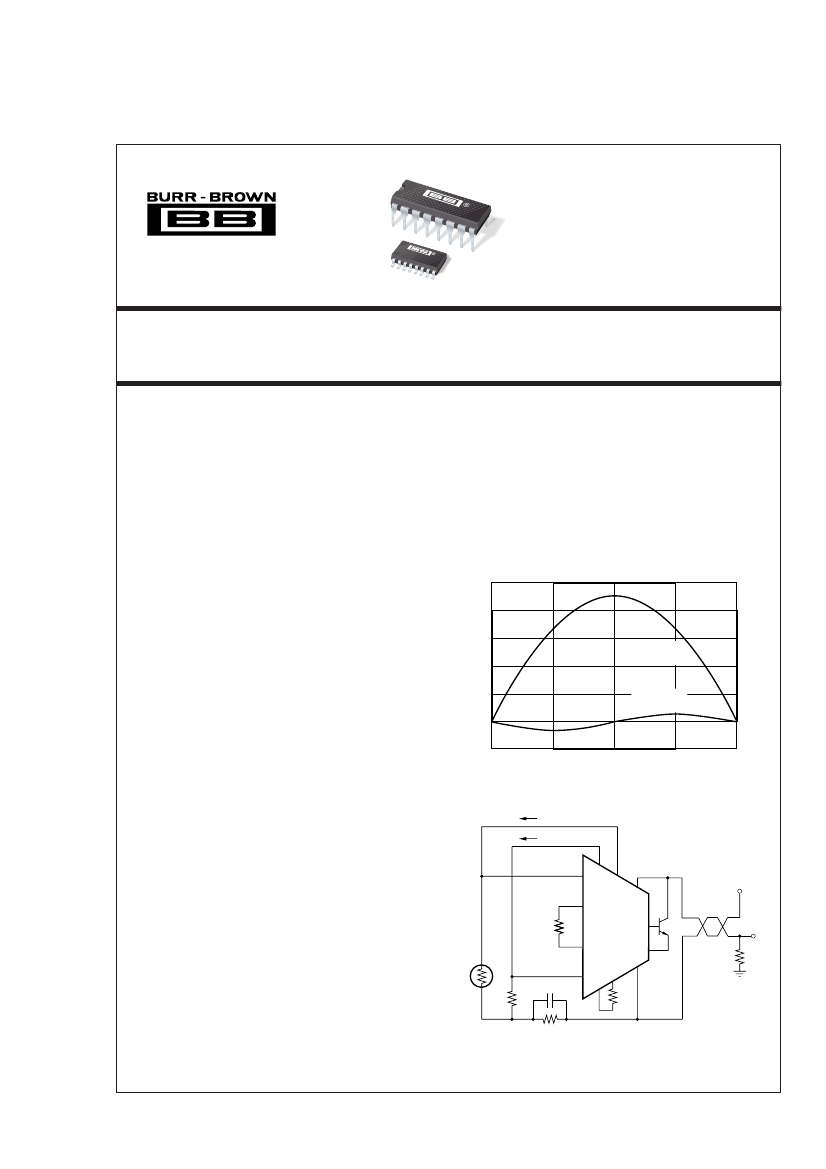

current transmitter designed for Platinum RTD tem-
perature sensors. It provides complete RTD current
excitation, instrumentation amplifier, linearization, and
current output circuitry on a single integrated circuit.
Versatile linearization circuitry provides a 2nd-order
correction to the RTD, typically achieving a 40:1
improvement in linearity.
Instrumentation amplifier gain can be configured for a
wide range of temperature measurements. Total
adjusted error of the complete current transmitter,
including the linearized RTD is less than
±1%
over the
full –40 to +85°C operating temperature range. This
includes zero drift, span drift and nonlinearity. The
XTR103 operates on loop power supply voltages down
to 9V.
The XTR103 is available in 16-pin plastic DIP and
SOL-16 surface-mount packages specified for the
–40°C to +85°C temperature range.
Nonlinearity (%)
4
3
2
1
0
–1
–200°C
Process Temperature (°C)
+850°C
Uncorrected
RTD Nonlinearity
Corrected
Nonlinearity
I
R
= 0.8mA
I
R
= 0.8mA
9 to 40V
+
V
PS
4-20 mA
R
G
RTD
–
R
LIN
XTR103
V
O
R
L
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
NOTES: (1) Includes corrected Pt100 nonlinearity for process measurement spans greater than 100°C, and over-temperature zero and span effects. Does not include
initial offset and gain errors which are normally trimmed to zero at 25°C. (2) Describes accuracy of the 4mA low-scale offset current. Does not include input amplifier
effects. Can be trimmed to zero. (3) Voltage measured with respect to I
O
pin. (4) Does not include TCR of gain-setting resistor, R
Storage Temperature Range ........................................ –55°C to +125°C
Lead Temperature (soldering, 10s) .............................................. +300°C
Output Current Limit ............................................................... Continuous
Junction Temperature ................................................................... +165°C
Zero Adjust
Zero Adjust
–
V
IN
+
V
IN
1
2
3
4
5
6
7
8
16 Zero Adjust
15 B (Base)
14 E
INT
(Internal Emitter)
13 I
R2
12 I
R1
11 E (Emitter)
10 V+
9
R
LIN
R
G
R
G
I
O
R
LIN
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
PACKAGE/ORDERING INFORMATION
PACKAGE
DRAWING
NUMBER
(1)
180
180
211
211
TEMPERATURE
RANGE
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
PRODUCT
XTR103AP
XTR103BP
XTR103AU
XTR103BU
PACKAGE
16-pin Plastic DIP
16-pin Plastic DIP
SOL-16 Surface Mount
SOL-16 Surface Mount
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix C of Burr-Brown IC Data Book.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant

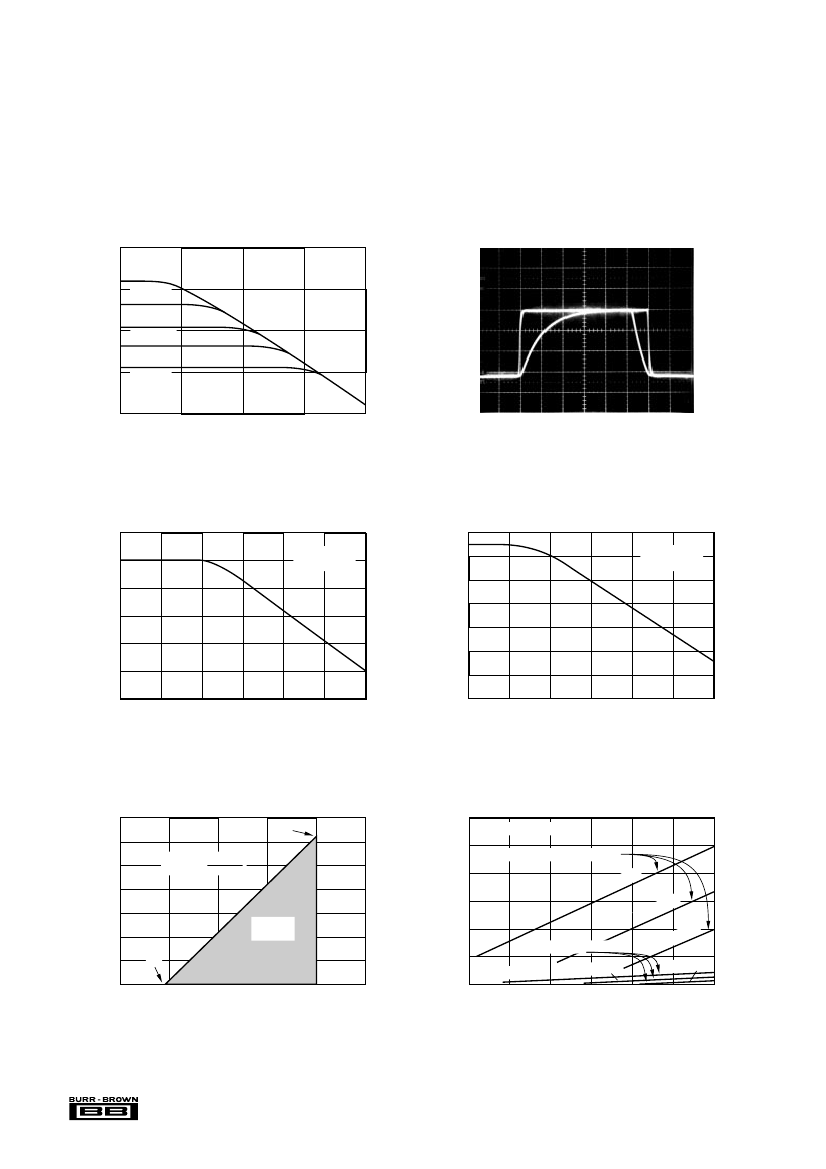

any BURR-BROWN product for use in life support devices and/or systems.
