BA3702 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> BA3702

Preview

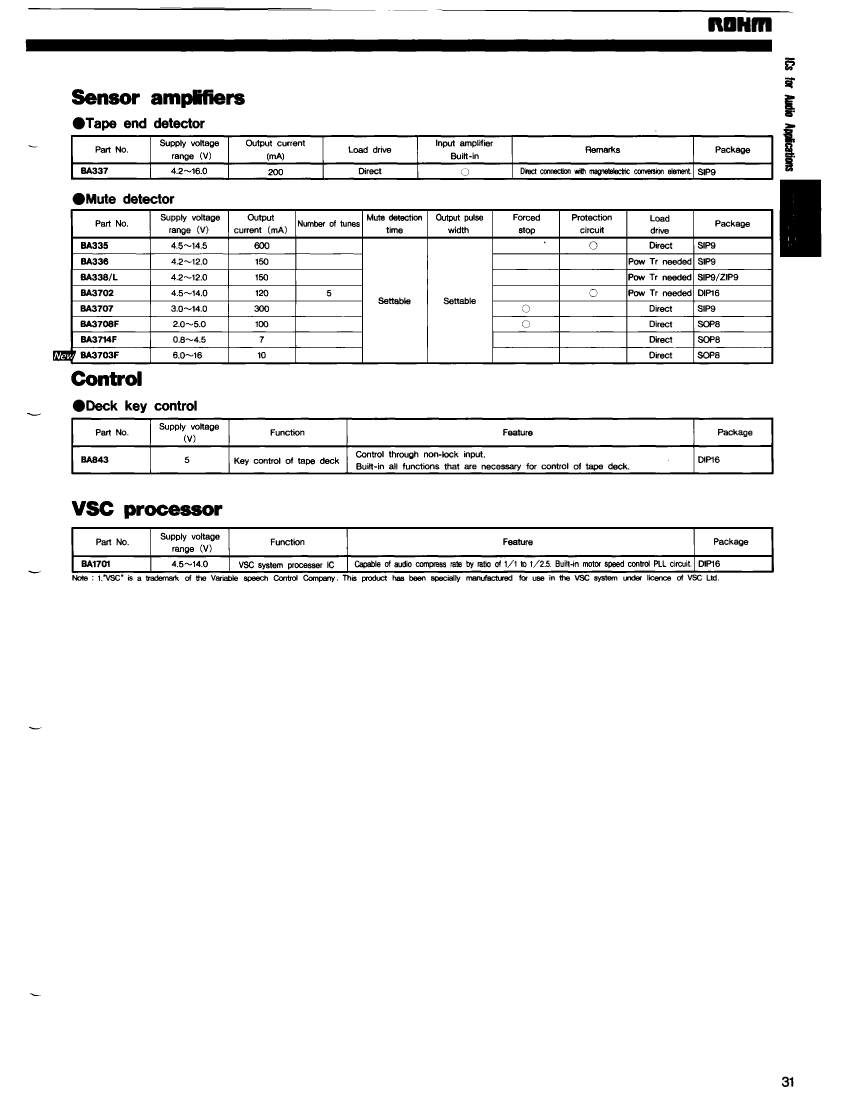

BA3702: DescriptionConsumer Circuit, PDIP16, DIP-16; CategoryOther integrated circuit (IC) Consumption circuit; File Size24KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA3702 Overview

Consumer Circuit, PDIP16, DIP-16

BA3702 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T16
length	19.4 mm
Number of functions	1
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.55 mm
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

BA3702 Related Products

	BA3702	BA3708FT2	BA3708FE1	BA3703FT2	BA3703FT1	BA337	BA3714FT2	BA3714FE1	BA843
Description	Consumer Circuit, PDIP16, DIP-16	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PSIP9, SIP-9	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PDSO8, SOP-8	Consumer Circuit, PDIP16, DIP-16
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	SIP	SOIC	SOIC	DIP
package instruction	DIP,	SOP-8	SOP-8	SOP-8	SOP-8	SIP,	SOP-8	SOP-8	DIP,
Contacts	16	8	8	8	8	9	8	8	16
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown	compliant	compliant	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T16	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PSIP-T9	R-PDSO-G8	R-PDSO-G8	R-PDIP-T16
length	19.4 mm	5 mm	5 mm	5 mm	5 mm	21.8 mm	5 mm	5 mm	19.4 mm
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	16	8	8	8	8	9	8	8	16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	LSOP	LSOP	LSOP	LSOP	SIP	LSOP	LSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.55 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	7.2 mm	1.6 mm	1.6 mm	4.55 mm
Maximum supply voltage (Vsup)	14 V	5 V	5 V	16 V	16 V	16 V	4.5 V	4.5 V	5 V
Minimum supply voltage (Vsup)	4.5 V	2 V	2 V	6 V	6 V	4.2 V	0.8 V	0.8 V	5 V
surface mount	NO	YES	YES	YES	YES	NO	YES	YES	NO
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	SINGLE	DUAL	DUAL	DUAL
width	7.62 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	2.8 mm	4.4 mm	4.4 mm	7.62 mm
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free	-
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-	conform to	conform to	-
JESD-609 code	-	e3/e2	e3/e2	e3/e2	e3/e2	-	e3/e2	e3/e2	-
Peak Reflow Temperature (Celsius)	-	260	260	260	260	-	260	260	-
Terminal surface	-	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	-	TIN/TIN COPPER	TIN/TIN COPPER	-
Maximum time at peak reflow temperature	-	10	10	10	10	-	10	10	-
Base Number Matches	-	1	1	1	1	1	-	-	-
