86093961113755000E1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86093961113755000E1

86093961113755000E1: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093961113755000E1 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle

86093961113755000E1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LATCH
body width	0.567 inch
body length	3.689 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Filter function	NO
IEC compliance	NO
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	16u inch
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96

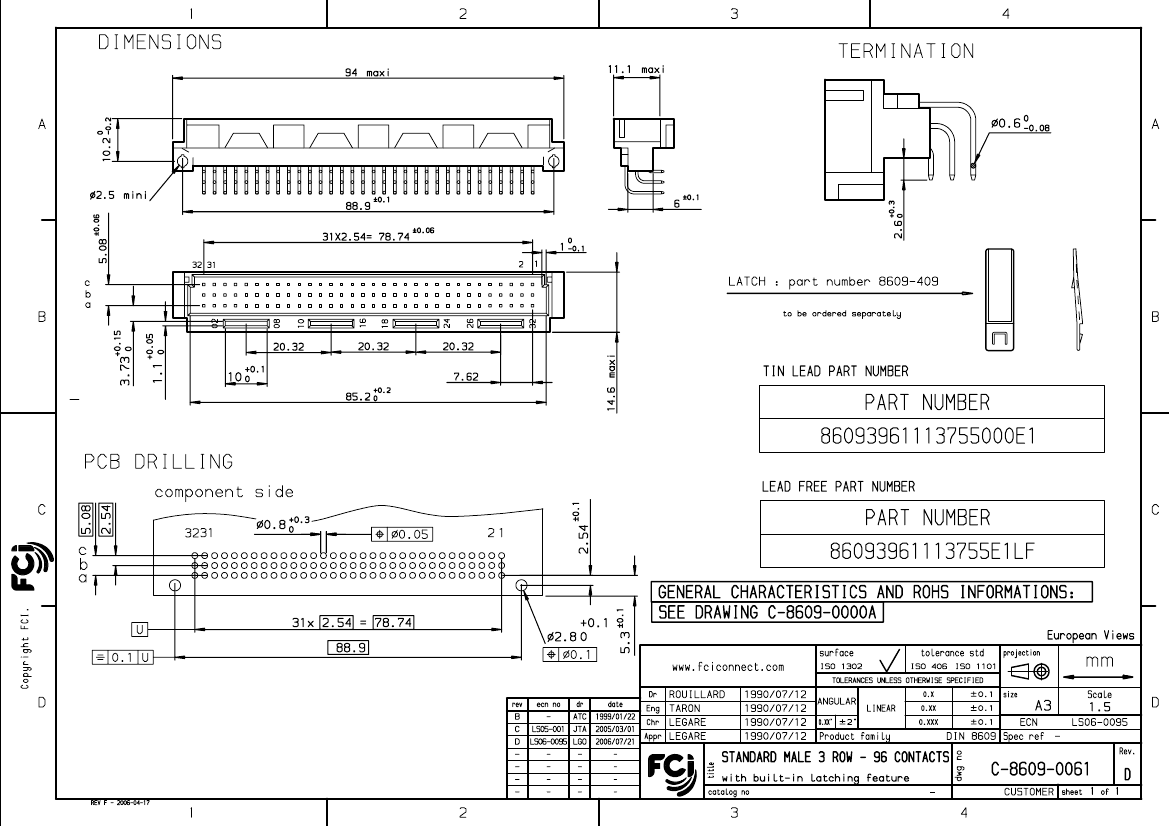

86093961113755000E1 Preview

PDM: Rev:D

STATUS:

Released

Printed: May 14, 2011

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

86093961113755000E1 Related Products

	86093961113755000E1	8609.396.11.13.755.000.E1	86093961113755E1LF
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	GOLD	GOLD	MATTE TIN (295) OVER NICKEL
Contact point gender	MALE	MALE	MALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	YES	NO
MIL compliance	NO	YES	NO
Manufacturer's serial number	8609	8609	8609
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96
Other features	LATCH	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED	-
body width	0.567 inch	0.575 inch	-
body length	3.689 inch	3.7 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Contact to complete cooperation	AU	AU ON NI	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Plug contact pitch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-
Installation option 1	HOLE .099-.111	LATCH	-
Loaded row name	A,B,C	A,B,C	-
PCB row number	3	3	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.102 inch	0.108 inch	-
