SURFACE MOUNT SILICON CONTROLLED RECTIFIER 12 AMP, 600 THRU 800 VOLTS

CSDD-12N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	D2PAK
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	_compli
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	15 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

CSDD-12M

CSDD-12N

SURFACE MOUNT

SILICON CONTROLLED RECTIFIER

12 AMP, 600 THRU 800 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CSDD-12M series

type is an Epoxy Molded Silicon Controlled Rectifier

designed for sensing circuit applications and control

systems.

MARKING: FULL PART NUMBER

D

2

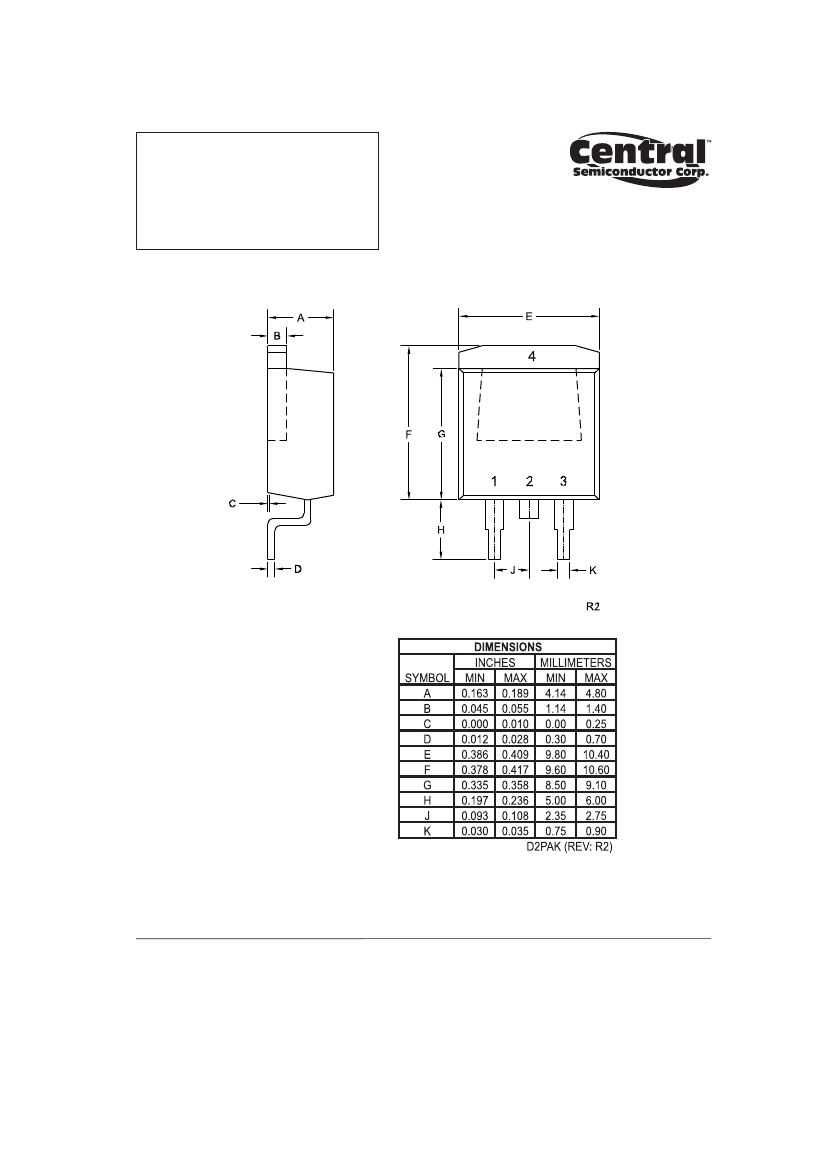

PAK CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL

CSDD-12M

CSDD-12N

Peak Repetitive Off-State Voltage

VDRM, VRRM

600

800

RMS On-State Current (TC=90°C)

IT(RMS)

12

Peak One Cycle Surge, t=10ms

I

2

t Value for Fusing, t=10ms

Peak Gate Power, tp=10μs

Average Gate Power Dissipation

Peak Forward Gate Current, tp=10μs

Peak Forward Gate Voltage, tp=10μs

Peak Reverse Gate Voltage, tp=10μs

Critical Rate of Rise of On-State Current

Operating Junction Temperature

Storage Temperature

Thermal Resistance

ITSM

I

2

t

PGM

PG(AV)

IFGM

VFGM

VRGM

di/dt

TJ

Tstg

Θ

JA

Θ

JC

110

60

40

1.0

4.0

16

5.0

100

-40 to +125

-40 to +150

60

2.5

UNITS

V

A

2

s

W

A

V

A/μs

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

IDRM,

IGT

IH

VGT

VTM

dv/dt

IRRM

Rated VDRM,

VRRM

VRRM, TC=125°C

VD=12V, RL=10Ω

TYP

MAX

10

3.0

UNITS

μA

mA

V

V/μs

3.5

8.7

0.64

1.21

200

15

20

1.50

1.60

IT=100mA

VD=12V, RL=10Ω

ITM=24A, tp=380μs

VD=

2

/

3

VDRM, TC=125°C

R2 (17-February 2010)
