CSDD-25M: DescriptionSURFACE MOUNT SILICON CONTROLLED RECTIFIER 25 AMP, 600 THRU 800 VOLTS; CategoryAnalog mixed-signal IC Trigger device; File Size407KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CSDD-25M Overview

SURFACE MOUNT SILICON CONTROLLED RECTIFIER 25 AMP, 600 THRU 800 VOLTS

CSDD-25M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	D2PAK
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	_compli
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	30 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	25 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

CSDD-25M

CSDD-25N

SURFACE MOUNT

SILICON CONTROLLED RECTIFIER

25 AMP, 600 THRU 800 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CSDD-25M series

type is an Epoxy Molded Silicon Controlled Rectifier

designed for sensing circuit applications and control

systems.

MARKING: FULL PART NUMBER

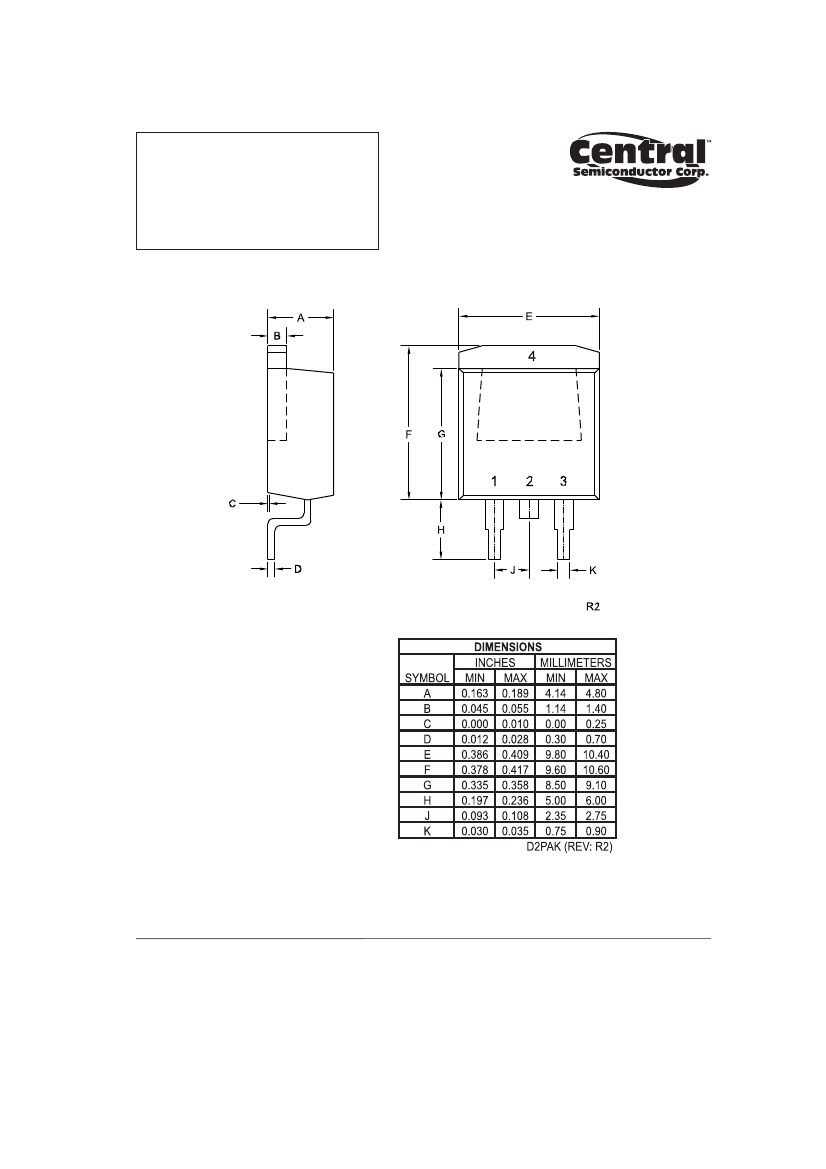

D

2

PAK CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

Peak Repetitive Off-State Voltage

RMS On-State Current (TC=90°C)

Peak Non-Repetitive Surge Current, t=8.3ms

Peak Non-Repetitive Surge Current, t=10ms

I

2

t Value for Fusing, t=10ms

Peak Gate Power, tp=10μs

Average Gate Power Dissipation

Peak Forward Gate Current, tp=10μs

Peak Forward Gate Voltage, tp=10μs

Peak Reverse Gate Voltage, tp=10μs

Critical Rate of Rise of On-State Current

Operating Junction Temperature

Storage Temperature

Thermal Resistance

SYMBOL

VDRM, VRRM

IT(RMS)

ITSM

I

2

t

PGM

PG(AV)

IFGM

VFGM

VRGM

di/dt

TJ

Tstg

Θ

JA

Θ

JC

CSDD-25M

600

CSDD-25N

800

25

UNITS

V

A

2

s

W

A

V

A/μs

°C

°C/W

260

250

310

40

1.0

4.0

16

5.0

100

-40 to +125

-40 to +150

60

1.3

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

IDRM, IRRM

IGT

IH

VGT

VTM

dv/dt

VRRM, TC=125°C

VD=12V, RL=10Ω

IT=100mA

VD=12V, RL=10Ω

ITM=50A, tp=380μs

VD=

2

/

3

VDRM, TC=125°C

200

Rated VDRM,

VRRM

TYP

MAX

10

4.0

UNITS

μA

mA

V

V/μs

4.2

12.5

0.65

30

50

1.50

1.80

R2 (17-February 2010)
