86094647894755526E1 datasheet, PDF

86094647894755526E1: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86094647894755526E1 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64

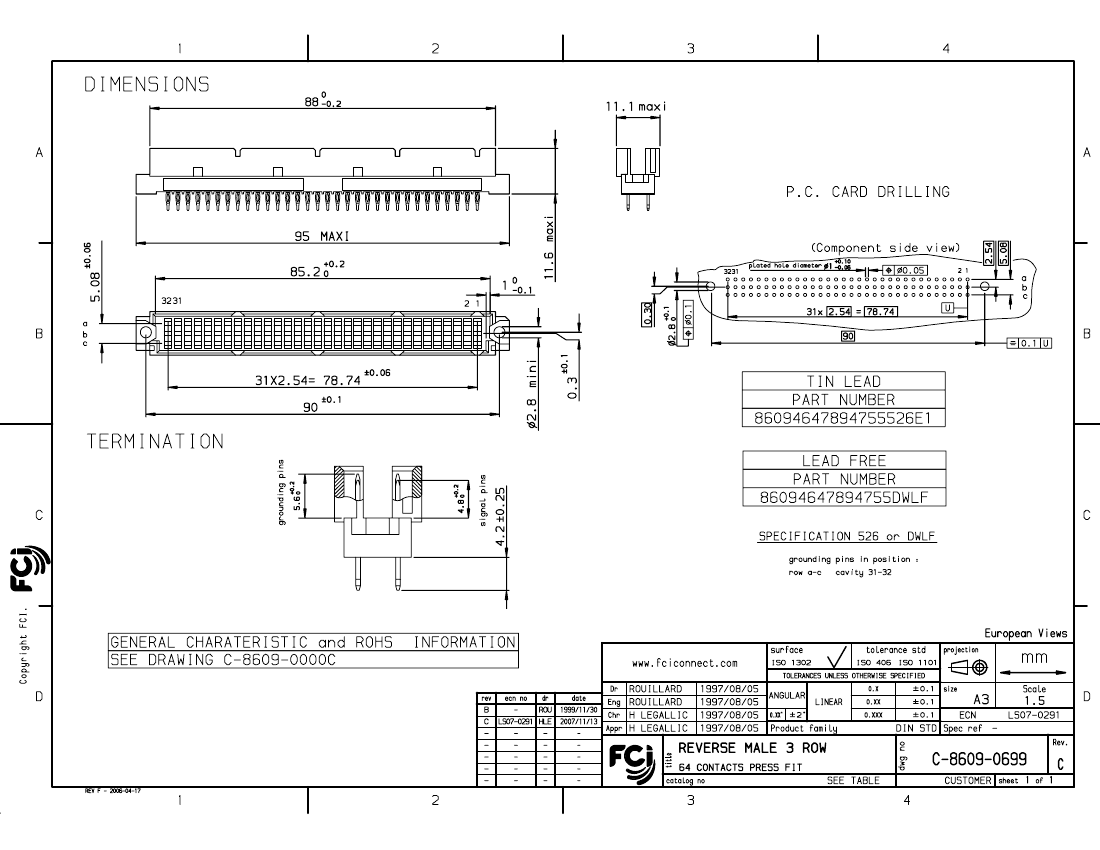

PDM: Rev:C

STATUS:

Released

Printed: May 14, 2011

.

	86094647894755526E1	86094647894755DWLF
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	8609	8609
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	64	64
