LH534500AT-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH534500AT-15

LH534500AT-15: DescriptionMASK ROM, 512KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48; Categorystorage storage; File Size130KB，6 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH534500AT-15 Overview

MASK ROM, 512KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48

LH534500AT-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown
Maximum access time	150 ns
Other features	AUTOMATIC POWER-DOWN
Spare memory width	16
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	16.4 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	12 mm

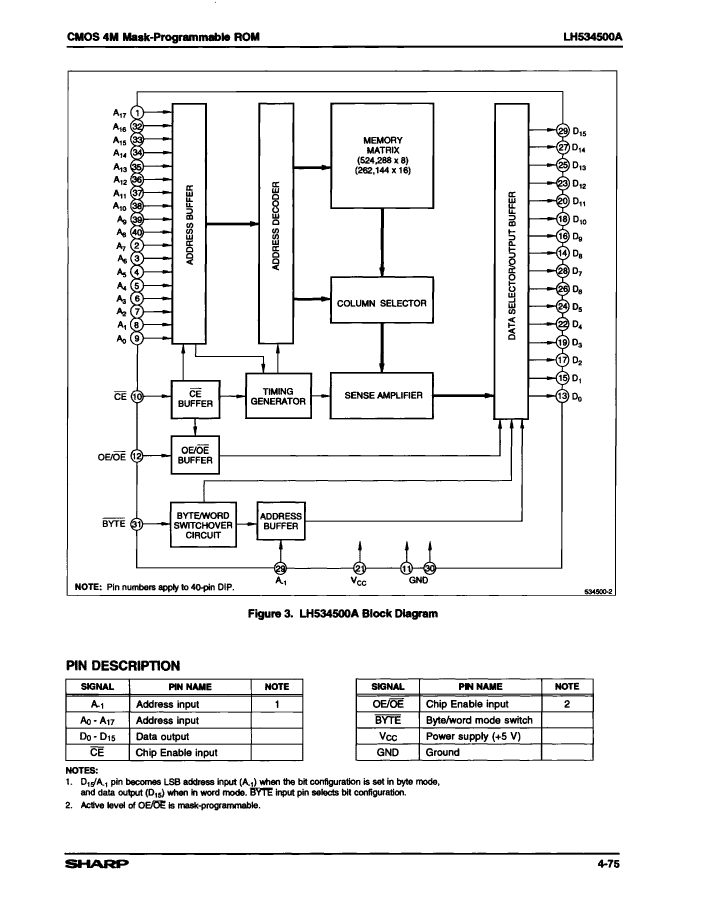

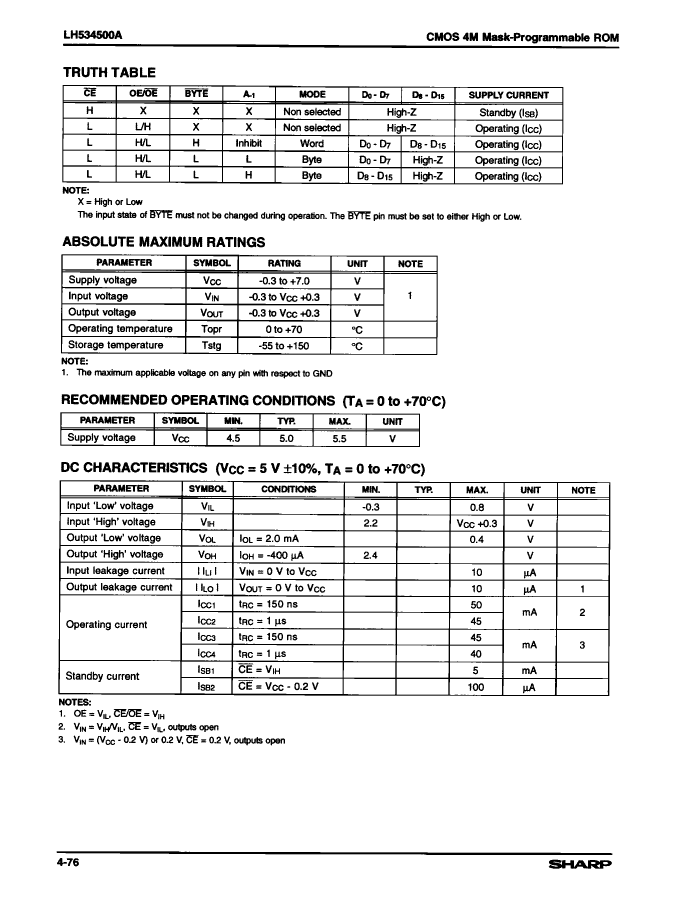

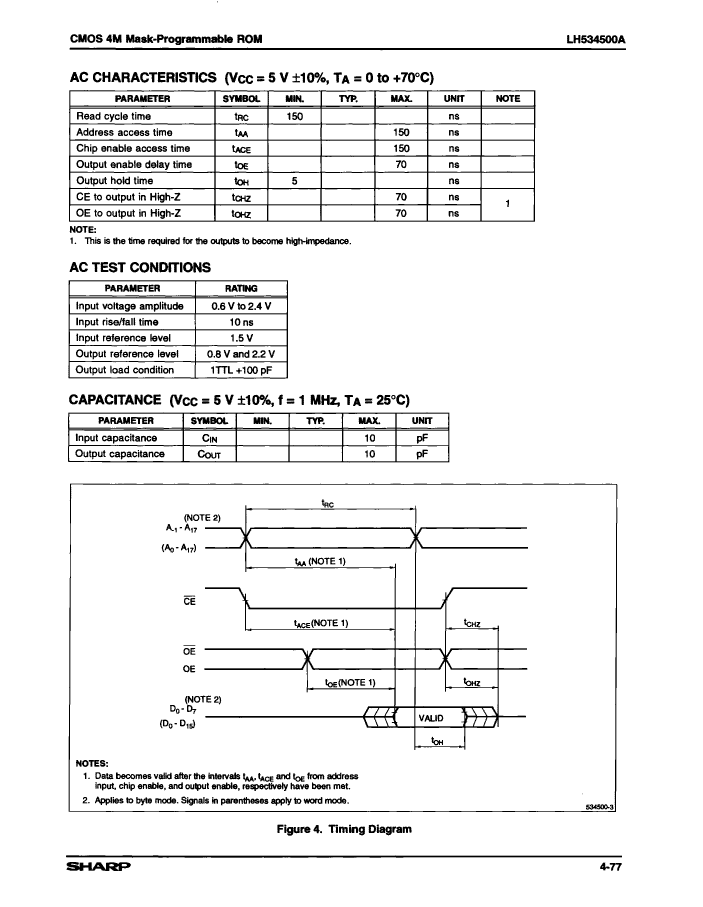

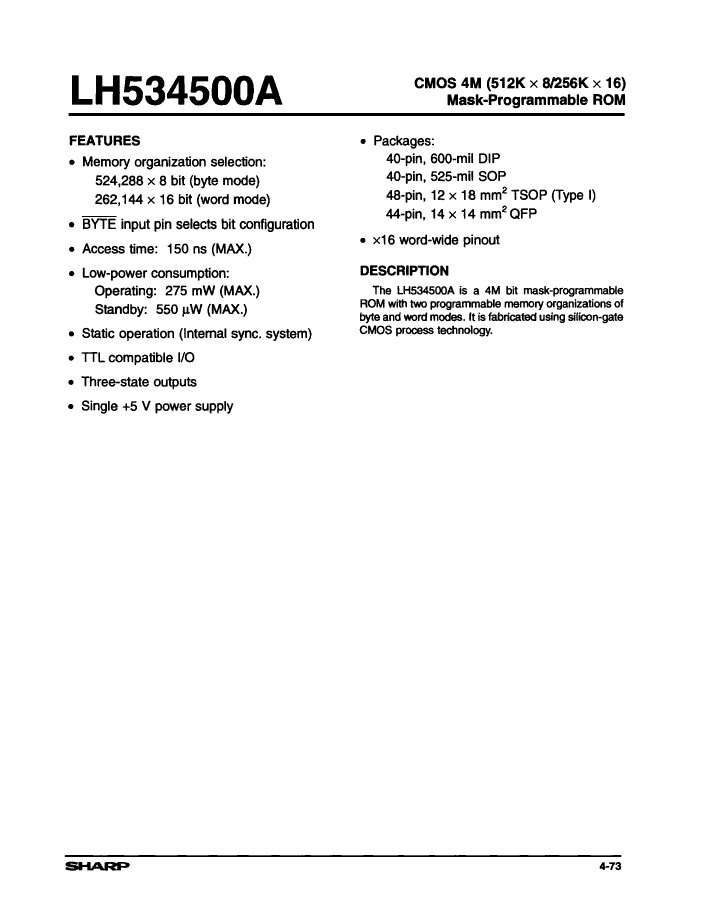

Preview

Download Datasheet

View All

LH534500AT-15 Related Products

	LH534500AT-15	LH534500AN-15	LH534500AD-15	LH534500AM-15
Description	MASK ROM, 512KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 512KX8, 150ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40	MASK ROM, 512KX8, 150ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 512KX8, 150ns, CMOS, PQFP44, 14 X 14 MM, PLASTIC, QFP-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	12 X 18 MM, PLASTIC, TSOP1-48	0.525 INCH, PLASTIC, SOP-40	0.600 INCH, PLASTIC, DIP-40	14 X 14 MM, PLASTIC, QFP-44
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	150 ns	150 ns	150 ns	150 ns
Other features	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
Spare memory width	16	16	16	16
JESD-30 code	R-PDSO-G48	R-PDSO-G40	R-PDIP-T40	S-PQFP-G44
JESD-609 code	e0	e0	e0	e0
length	16.4 mm	26.3 mm	52 mm	14 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	48	40	40	44
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SOP	DIP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3.1 mm	5.4 mm	2.3 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.5 mm	1.27 mm	2.54 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	12 mm	11.3 mm	15.24 mm	14 mm
Base Number Matches	-	1	1	1
