LH5332500BN: DescriptionMASK ROM, 4MX8, 150ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size170KB，9 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH5332500BN Overview

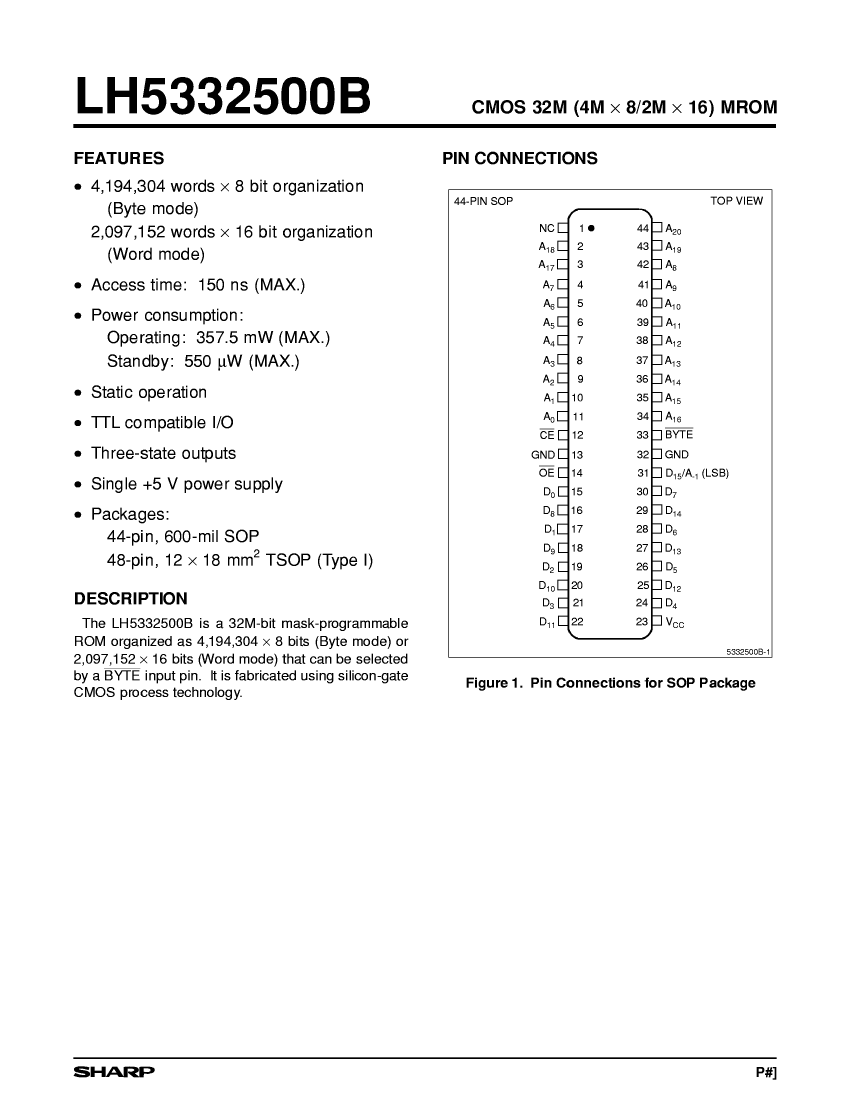

MASK ROM, 4MX8, 150ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44

LH5332500BN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.600 INCH, PLASTIC, SOP-44
Reach Compliance Code	unknown
Maximum access time	150 ns
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.2 mm
memory density	33554432 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.25 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	13.2 mm

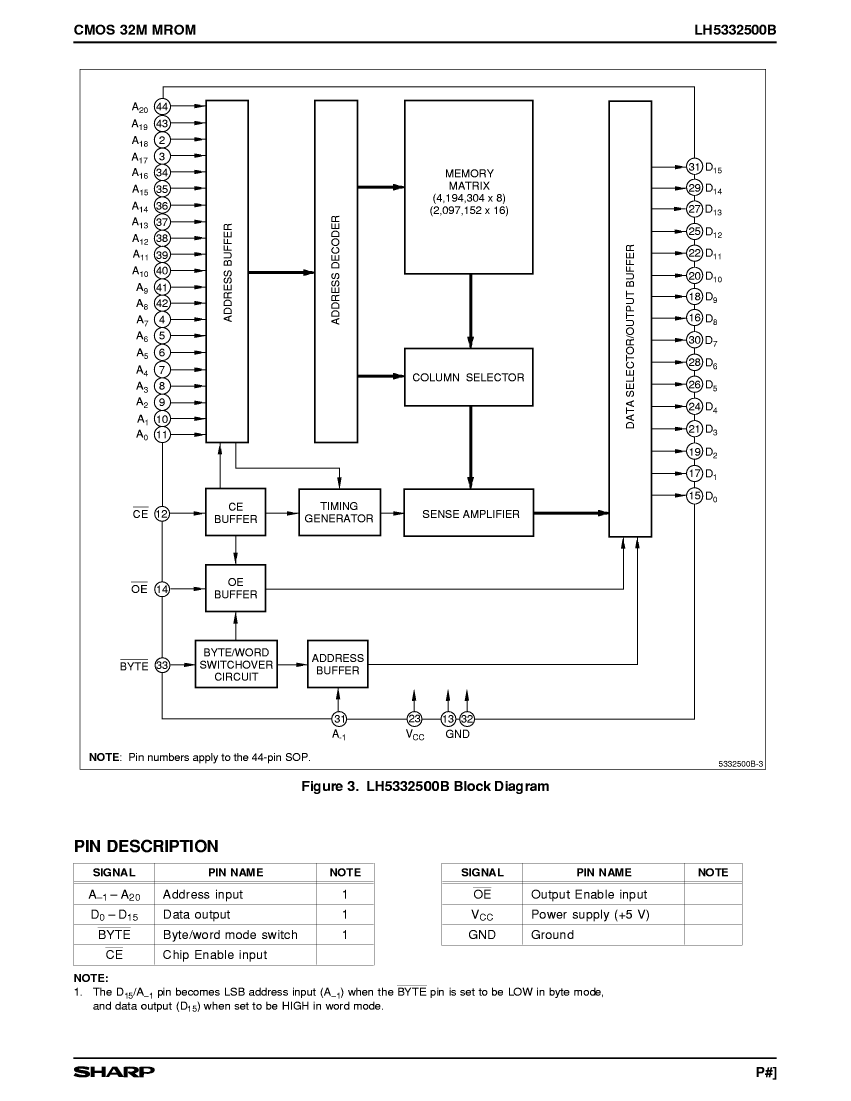

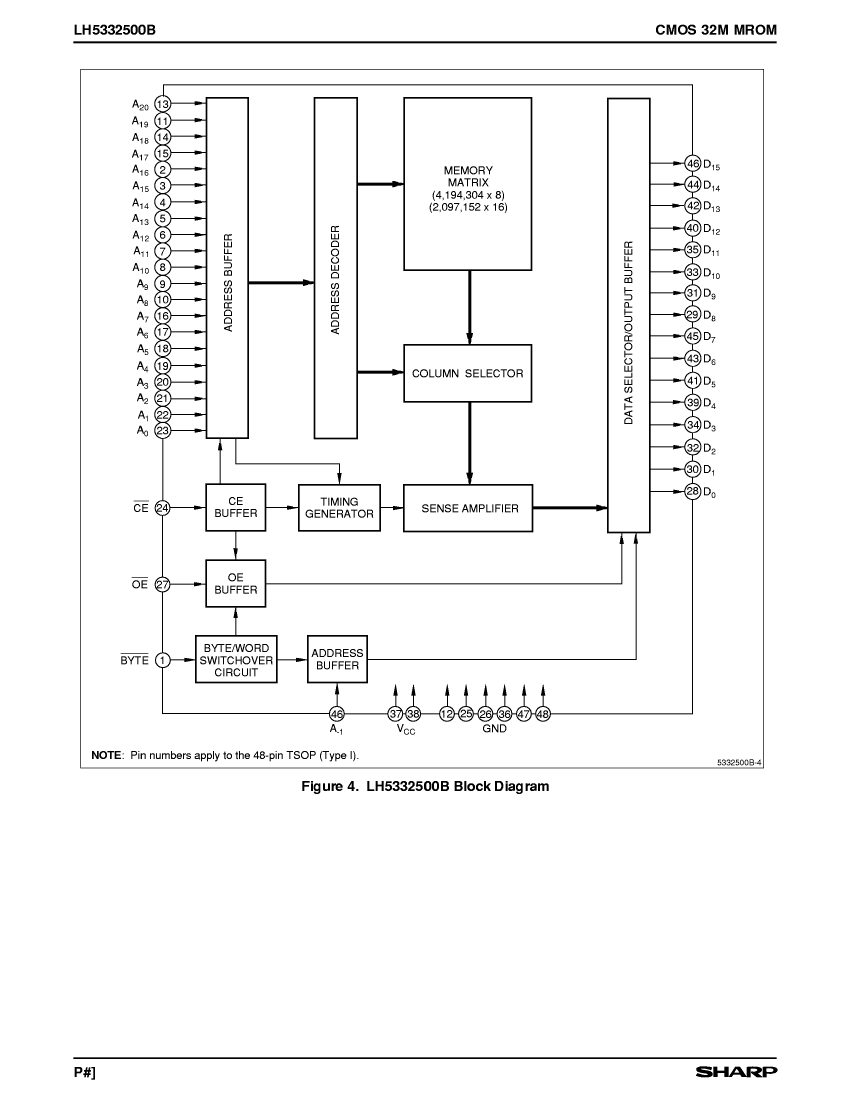

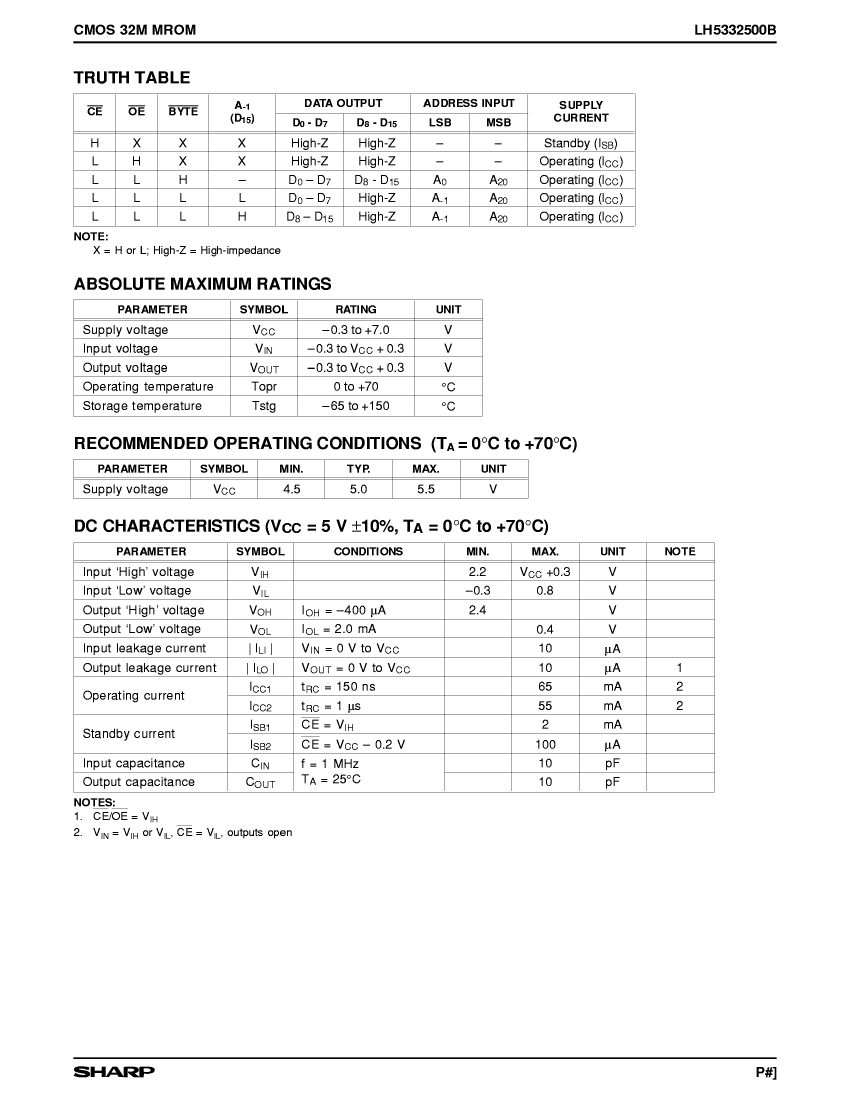

Preview

Download Datasheet

View All

LH5332500BN Related Products

	LH5332500BN	LH5332500BT	LH5332500BTR

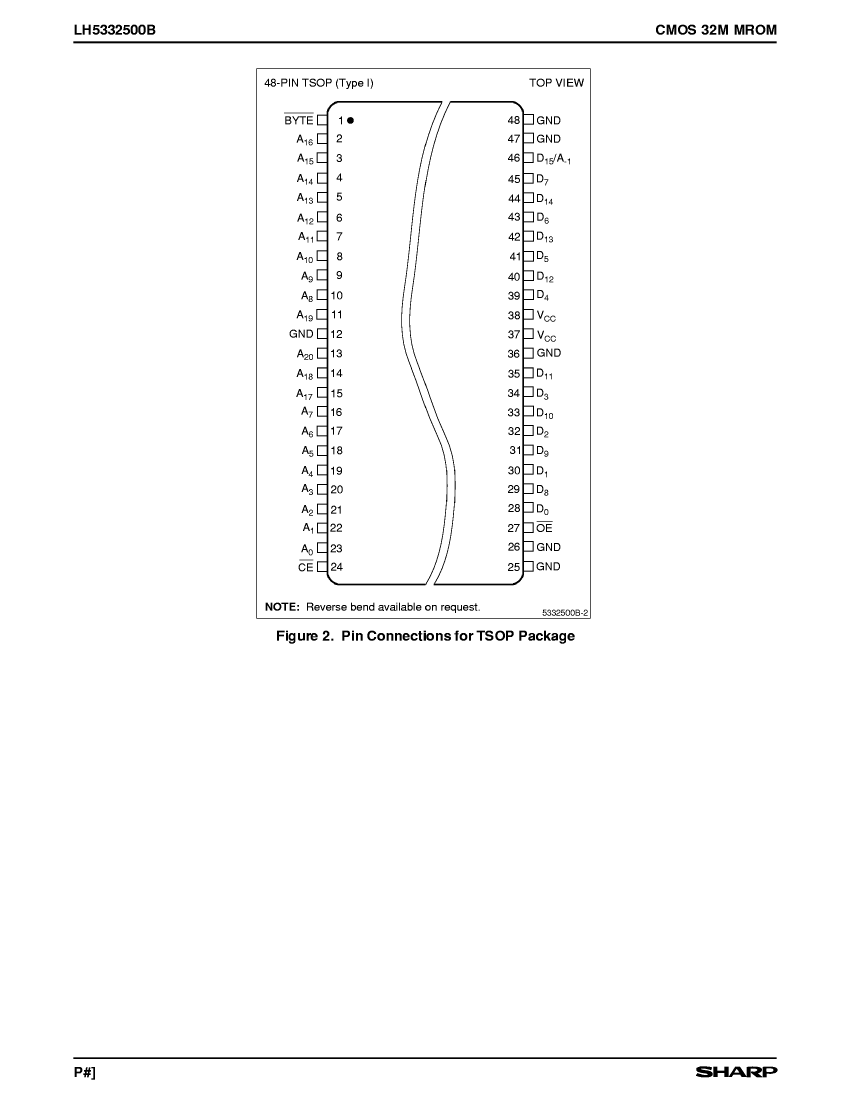

Description	MASK ROM, 4MX8, 150ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44	MASK ROM, 4MX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 4MX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	0.600 INCH, PLASTIC, SOP-44	12 X 18 MM, PLASTIC, TSOP1-48	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	150 ns	150 ns	150 ns
JESD-30 code	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0
length	28.2 mm	16.4 mm	16.4 mm
memory density	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	44	48	48
word count	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	4MX8	4MX8	4MX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	TSOP1-R
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.25 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	13.2 mm	12 mm	12 mm
Maker	SHARP	-	SHARP
