84-3-8-502 datasheet, PDF - EEWORLD Datasheet

84-3-8-502: DescriptionRESISTOR, TRIMMER, WIRE WOUND, 1 TURN(S), 1.5 W, 5000 ohm, 1/2 INCH, ROUND, 3 PINS; CategoryPassive components The resistor; File Size290KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

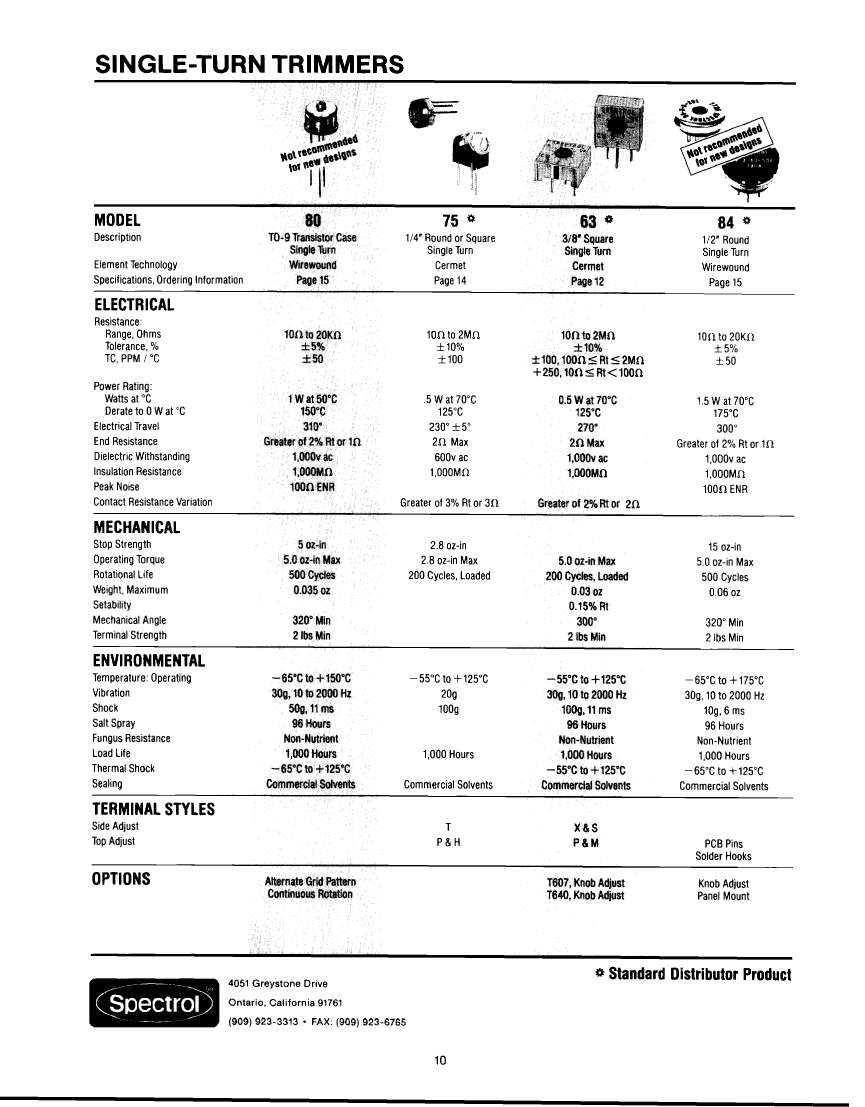

84-3-8-502 Overview

RESISTOR, TRIMMER, WIRE WOUND, 1 TURN(S), 1.5 W, 5000 ohm, 1/2 INCH, ROUND, 3 PINS

Parameter Name	Attribute value
Maker	Vishay
package instruction	PCB Mount,
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Wirewound
Lead diameter	1.4 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package diameter	12.7 mm
Package length	6.121 mm
Package shape	CIRCULAR PACKAGE
Package form	PCB Mount
Rated power dissipation(P)	1.5 W
Rated temperature	70 °C
resistance	5000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	300 deg
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	50 ppm/°C
Terminal shape	WIRE
Tolerance	5%

	84-3-8-502	84-3-8-103	84-3-8-500
Description	RESISTOR, TRIMMER, WIRE WOUND, 1 TURN(S), 1.5 W, 5000 ohm, 1/2 INCH, ROUND, 3 PINS	RESISTOR, TRIMMER, WIRE WOUND, 1 TURN(S), 1.5 W, 10000 ohm, 1/2 INCH, ROUND, 3 PINS	RESISTOR, TRIMMER, WIRE WOUND, 1 TURN(S), 1.5 W, 50 ohm, 1/2 INCH, ROUND, 3 PINS
Maker	Vishay	Vishay	Vishay
package instruction	PCB Mount,	PCB Mount,	PCB Mount,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Actuator direction	VERTICAL	VERTICAL	VERTICAL
Actuator type	SCREW	SCREW	SCREW
structure	Wirewound	Wirewound	Wirewound
Lead diameter	1.4 mm	1.4 mm	1.4 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3	3
number of turns	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Package diameter	12.7 mm	12.7 mm	12.7 mm
Package length	6.121 mm	6.121 mm	6.121 mm
Package shape	CIRCULAR PACKAGE	CIRCULAR PACKAGE	CIRCULAR PACKAGE
Package form	PCB Mount	PCB Mount	PCB Mount
Rated power dissipation(P)	1.5 W	1.5 W	1.5 W
Rated temperature	70 °C	70 °C	70 °C
resistance	5000 Ω	10000 Ω	50 Ω
resistance law	LINEAR	LINEAR	LINEAR
Resistor type	TRIMMER	TRIMMER	TRIMMER
rotation angle	300 deg	300 deg	300 deg
surface mount	NO	NO	NO
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND
Terminal shape	WIRE	WIRE	WIRE
Tolerance	5%	5%	5%
Temperature Coefficient	50 ppm/°C	50 ppm/°C	-
