MBR1045BF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> MBR1045BF

MBR1045BF: Description10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC; Categorysemiconductor Discrete semiconductor; File Size515KB，8 Pages; ManufacturerJSMC; Websitehttp://www.hwdz.com.cn/

Download Datasheet Parametric Compare View All

MBR1045BF Overview

10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC

MBR1045BF Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	GREEN, PLASTIC PACKAGE-2
state	ACTIVE
packaging shape	Rectangle
Package Size	Flange mounting
Terminal form	THROUGH-hole
terminal coating	PURE Tin
Terminal location	single
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	single
Shell connection	CATHODE
Diode component materials	silicon
Diode type	rectifier diode
application	EFFICIENCY
Phase	1
Maximum repetitive peak reverse voltage	45 V
Maximum average forward current	10 A
Maximum non-repetitive peak forward current	150 A

Preview

Download Datasheet

View All

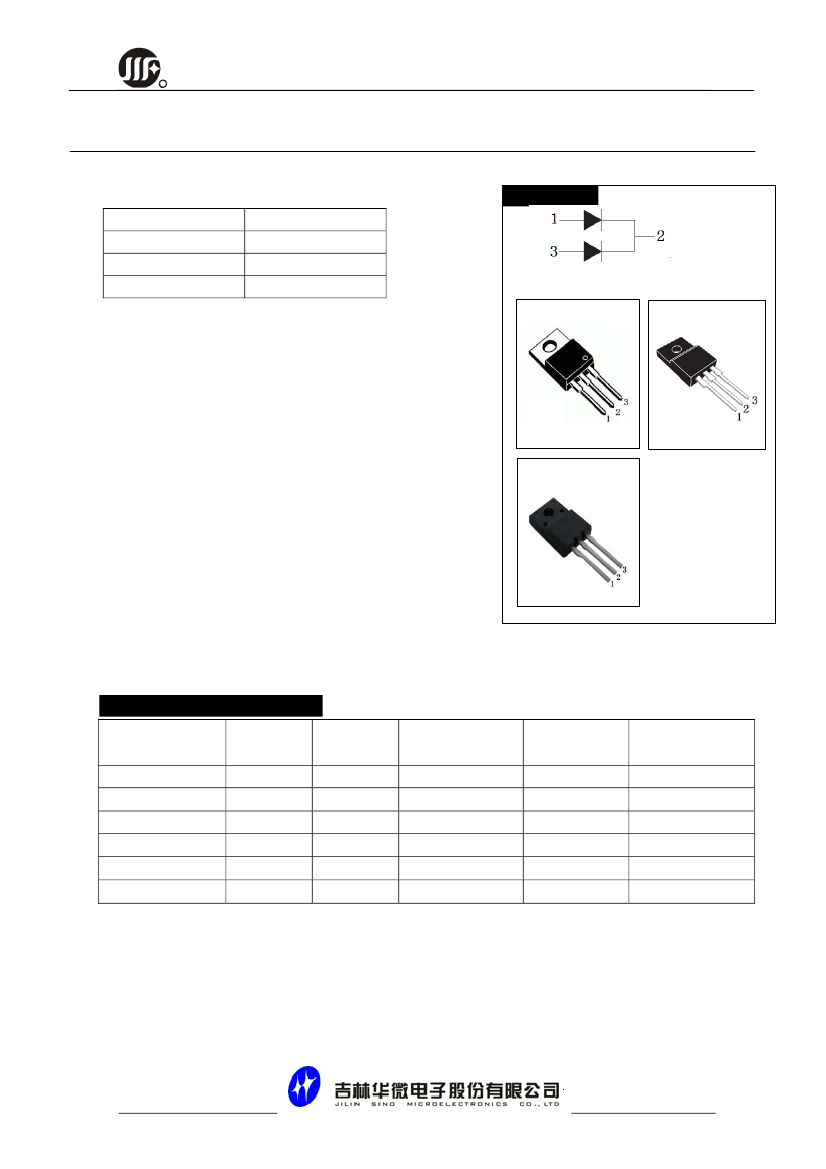

肖特基势垒二极管

SCHOTTKY BARRIER DIODE

MBR1045

主要参数

(AV)

RRM

(max)

用途

高频开关电源

½压续流电路和保护电

路

MAIN

CHARACTERISTICS

封装

Package

10（2×5） A

45 V

150

℃

0.48V （

Tj=125℃）

TO-22O

TO-22OBF

APPLICATIONS

High frequency switch

power supply

Free wheeling diodes,

polarity protection

applications

TO-22OHF

产品特性

共阴结构

½功耗，高效率

良½的高温特性

有过压保护环，

高可靠性

环保（RoHS）产品

FEATURES

Common cathode structure

Low power loss, high efficiency

High Operating Junction

Temperature

Guard ring for overvoltage

protection，High reliability

RoHS product

订货信息

ORDER MESSAGE

订货型号

Order codes

MBR1045Z

MBR1045ZR

MBR1045BF

MBR1045BFR

MBR1045HF

MBR1045HFR

印

记

封

装

否

是

否

是

否

是

无卤素

Halogen Free

YES

包

装

器件重量

Device Weight

1.98 g(typ)

1.70 g(typ)

Marking

MBR1045

Package

TO-220

TO-220BF

TO-220HF

Packaging

条管

Tube

条管

Tube

条管

Tube

条管

Tube

条管

Tube

条管

Tube

版本(Rev.):201003E

1/7

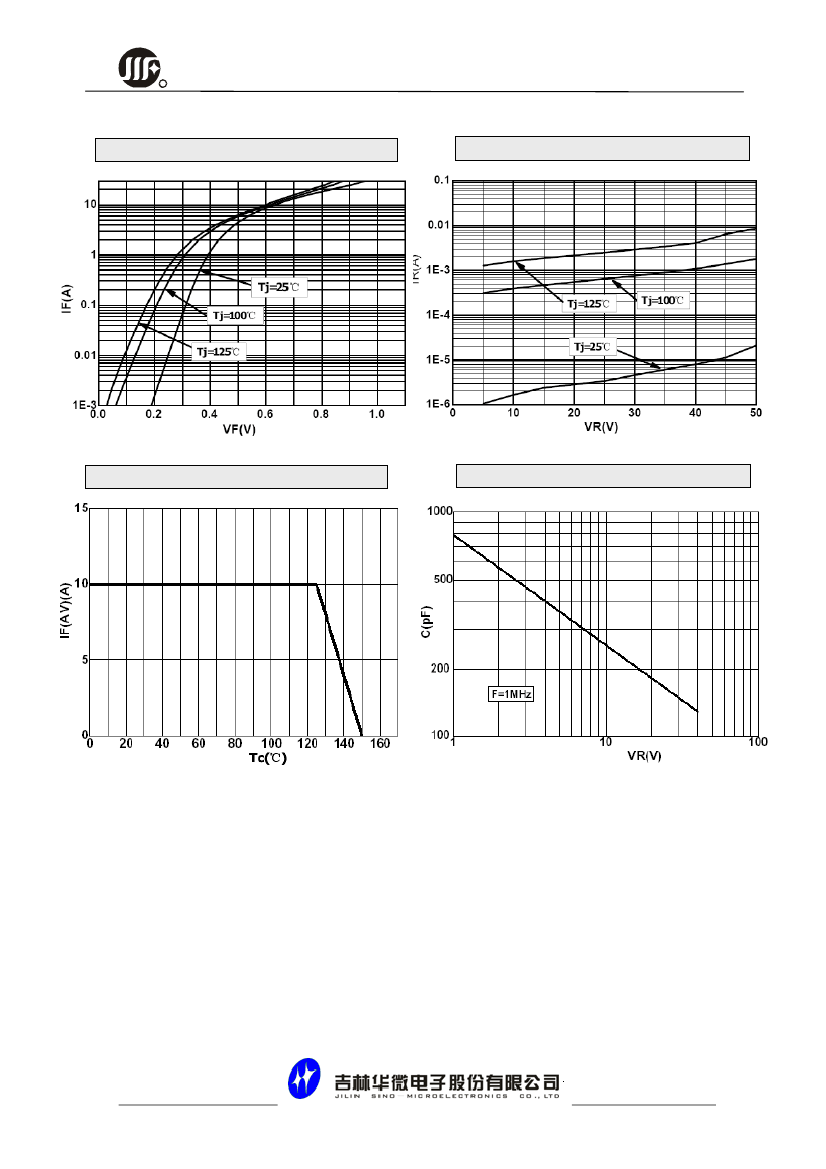

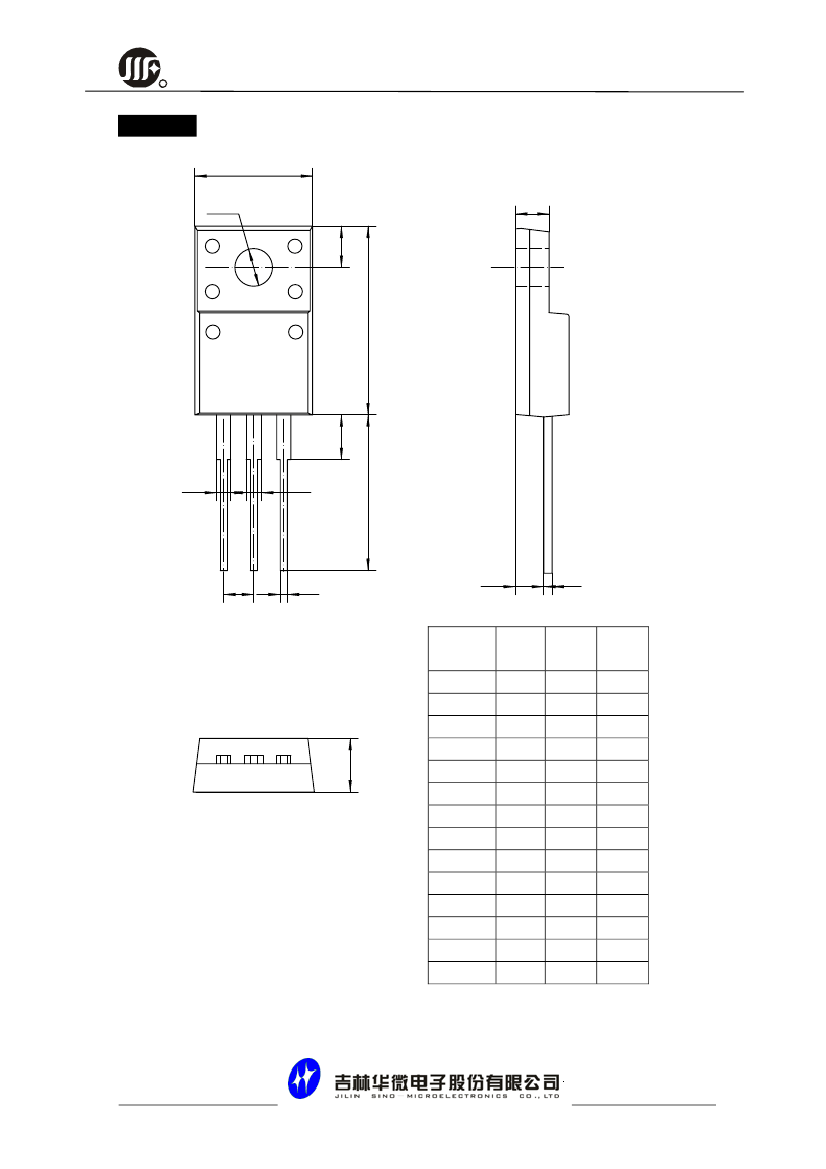

MBR1045BF Related Products

	MBR1045BF	MBR1045HF	MBR1045Z	MBR1045	MBR1045BFR	MBR1045HFR	MBR1045ZR
Description	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC	10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC
Number of terminals	2	2	2	2	2	2	2
Number of components	1	1	1	1	1	1	1
Processing package description	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting
Terminal form	THROUGH-hole	THROUGH-hole	THROUGH-hole	THROUGH-hole	THROUGH-hole	THROUGH-hole	THROUGH-hole
terminal coating	PURE Tin	PURE Tin	PURE Tin	PURE Tin	PURE Tin	PURE Tin	PURE Tin
Terminal location	single	single	single	single	single	single	single
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
Craftsmanship	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
structure	single	single	single	single	single	single	single
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Diode component materials	silicon	silicon	silicon	silicon	silicon	silicon	silicon
Diode type	rectifier diode	rectifier diode	rectifier diode	rectifier diode	rectifier diode	rectifier diode	rectifier diode
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Phase	1	1	1	1	1	1	1
Maximum repetitive peak reverse voltage	45 V	45 V	45 V	45 V	45 V	45 V	45 V
Maximum average forward current	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A	150 A
