L7C181CME15 datasheet, PDF - EEWORLD Datasheet

L7C181CME15: DescriptionCache Tag SRAM, 4KX4, 15ns, CMOS, CDIP22, 0.300 INCH, CERDIP-22; Categorystorage storage; File Size269KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

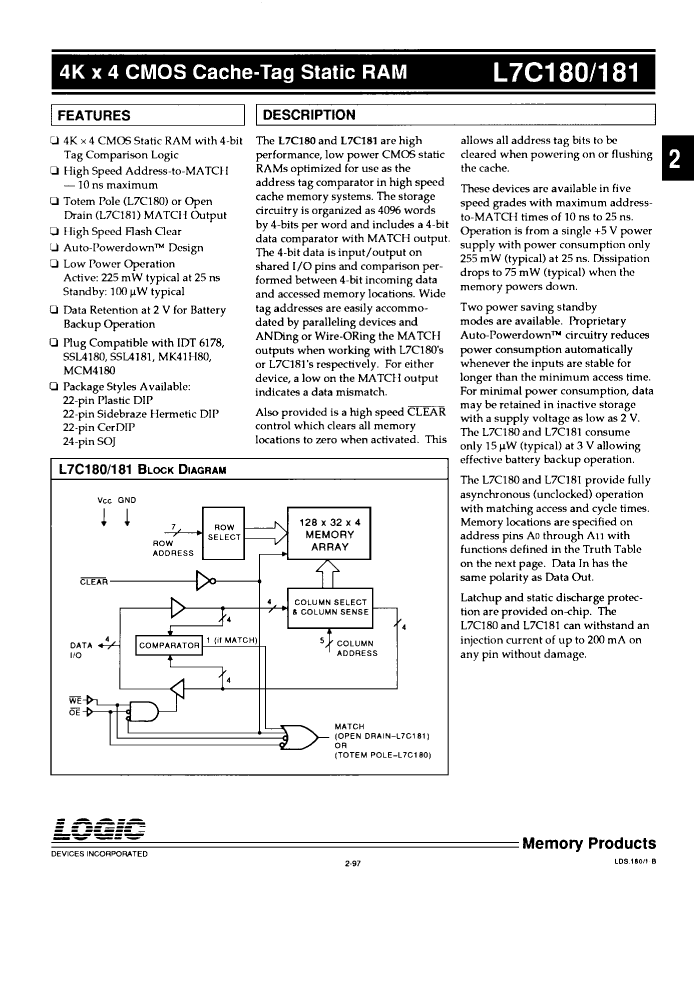

L7C181CME15 Overview

Cache Tag SRAM, 4KX4, 15ns, CMOS, CDIP22, 0.300 INCH, CERDIP-22

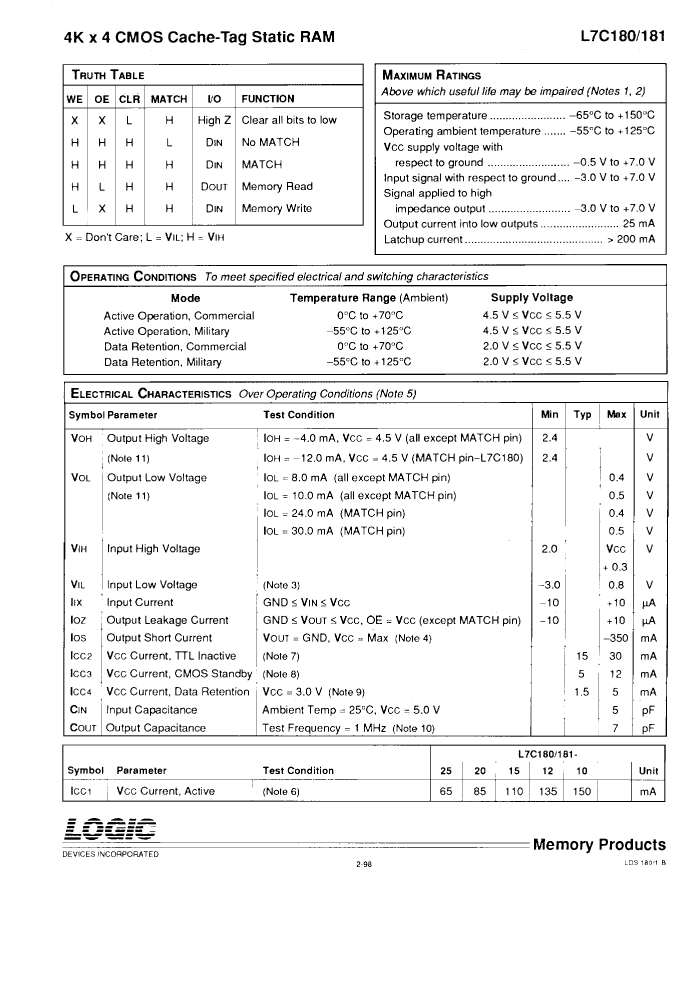

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	DIP, DIP22,.3
Contacts	22
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

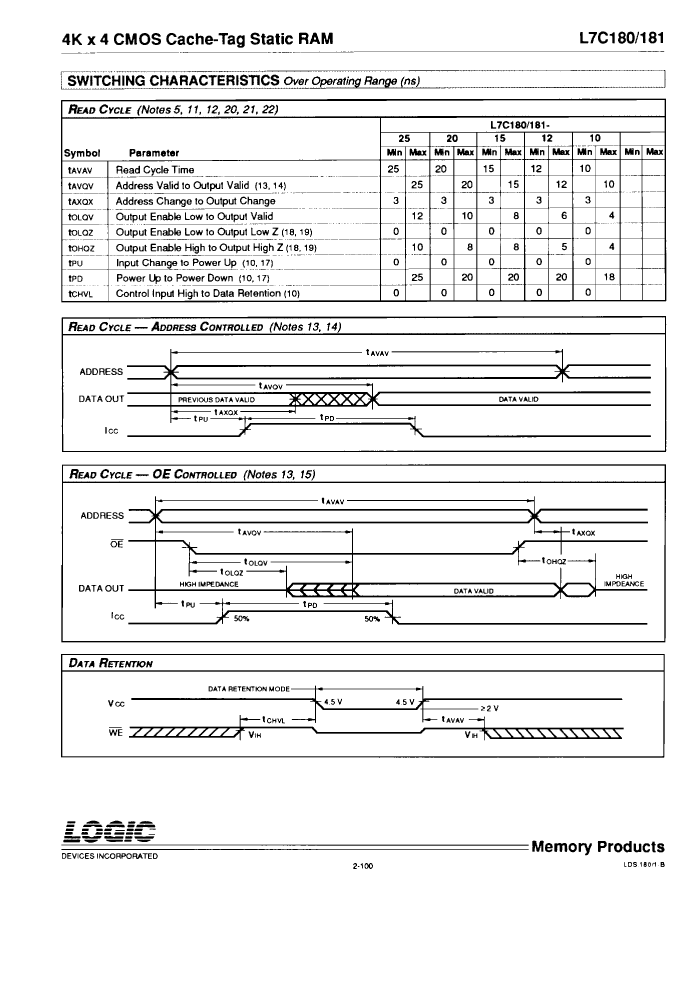

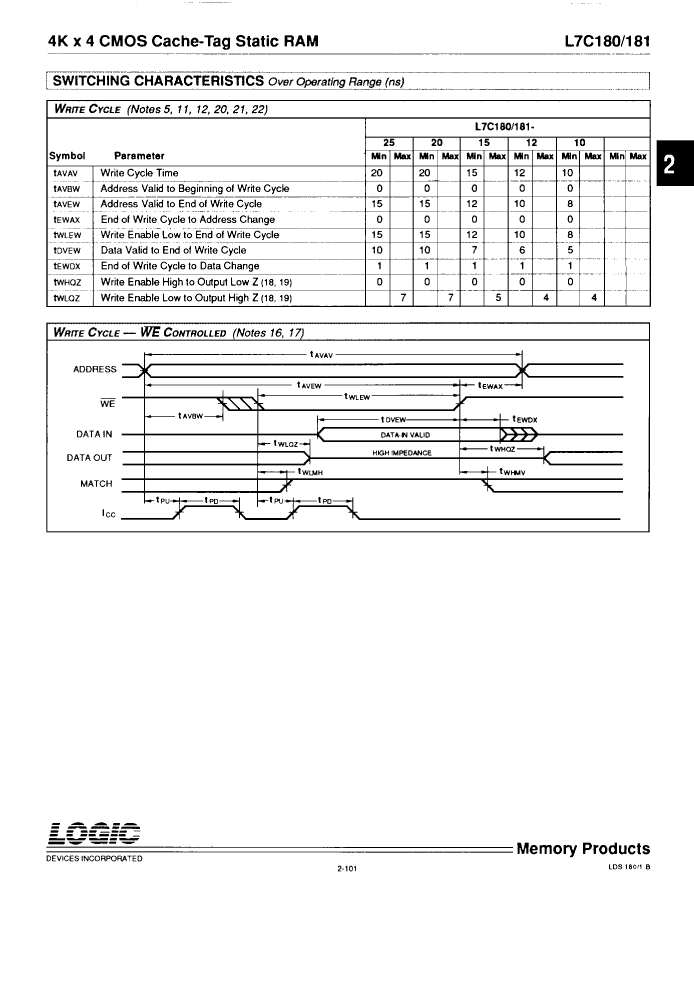

Maximum access time	15 ns

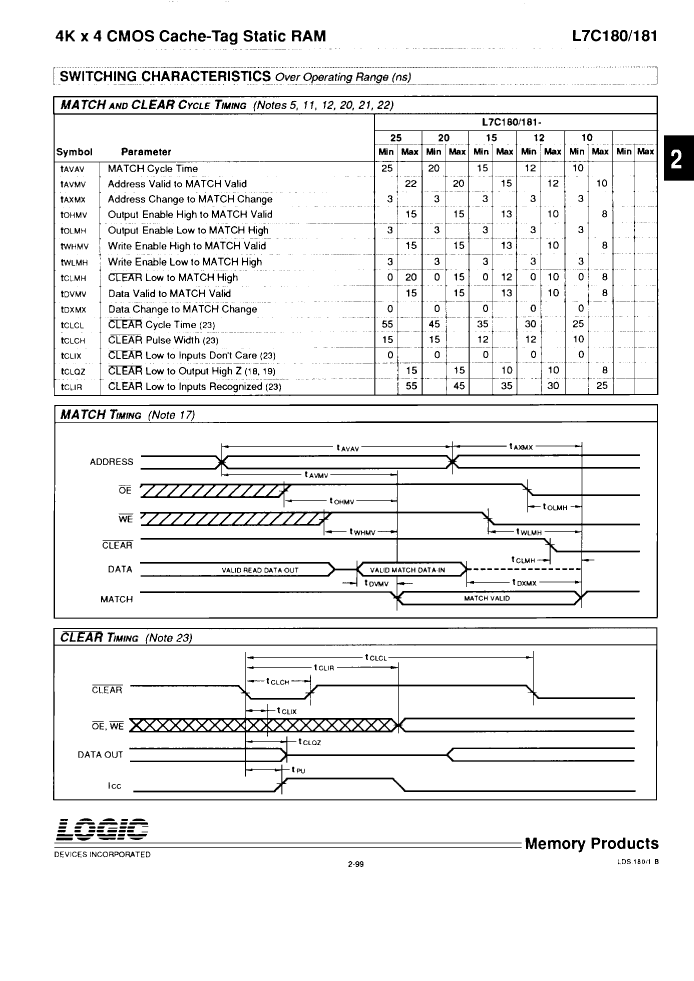

Other features	AUTOMATIC POWER-DOWN; MATCH OUTPUT; FLASH CLEAR
JESD-30 code	R-GDIP-T22
JESD-609 code	e0
length	27.178 mm
memory density	16384 bit
Memory IC Type	CACHE TAG SRAM
memory width	4
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	22
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Maximum seat height	5.08 mm
Maximum standby current	0.00005 A
Minimum standby current	2 V
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
