OVAL(4mm) HYPER RED LED LAMP
L7123SURC HYPER RED
Features
!
HYPER
Description
The Hyper Red (SUR) source color devices are made
with DH InGaAlP on GaAs substrate Light Emitting Diode.
MATERIAL EFFICIENCY.
BRIGHTNESS.
AND RUGGED.
!
OUTSTANDING
!
RELIABLE
!
I.C.
COMPATIBLE.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
D
i
g
i
t
a
l
l
y
s
i
g
n
e
d
b
y
Y
A
N
G
S
H
O
U
F
E
N
c
n
=
Y
A
N
G
S
H
O
U
F
E
N
,
o
u
=
K
I
N
G
B
R
I
H
G
T
,
o
=
4
2
,
c
=
U
S
D
a
t
e
:
2
0
0
1
.
1
1
.
1
2
2
0
:
2
3
:
0
7
+
0
8
'0
0
'R
e
a
s
o
n
:
D
o
c
u
m
e
n
SPEC NO: CDA0758
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 1 OF 3
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
L7123SURC
HYPER RED (InGaAlP)
WATER CLEAR
300
Ty p .
60 0
V i ew i n g
An g l e
2θ1/2
30
°
(H)
88
°
(V)
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Ty p .
640
6 28
27
45
1.9
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VR=0V;f=1MHz
IF=20mA
V R = 5V
°
Absolute Maximum Ratings at T
)
=25°C
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
H y p e r R ed
17 0
30
18 5
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
SPEC NO: CDA0758
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 2 OF 3

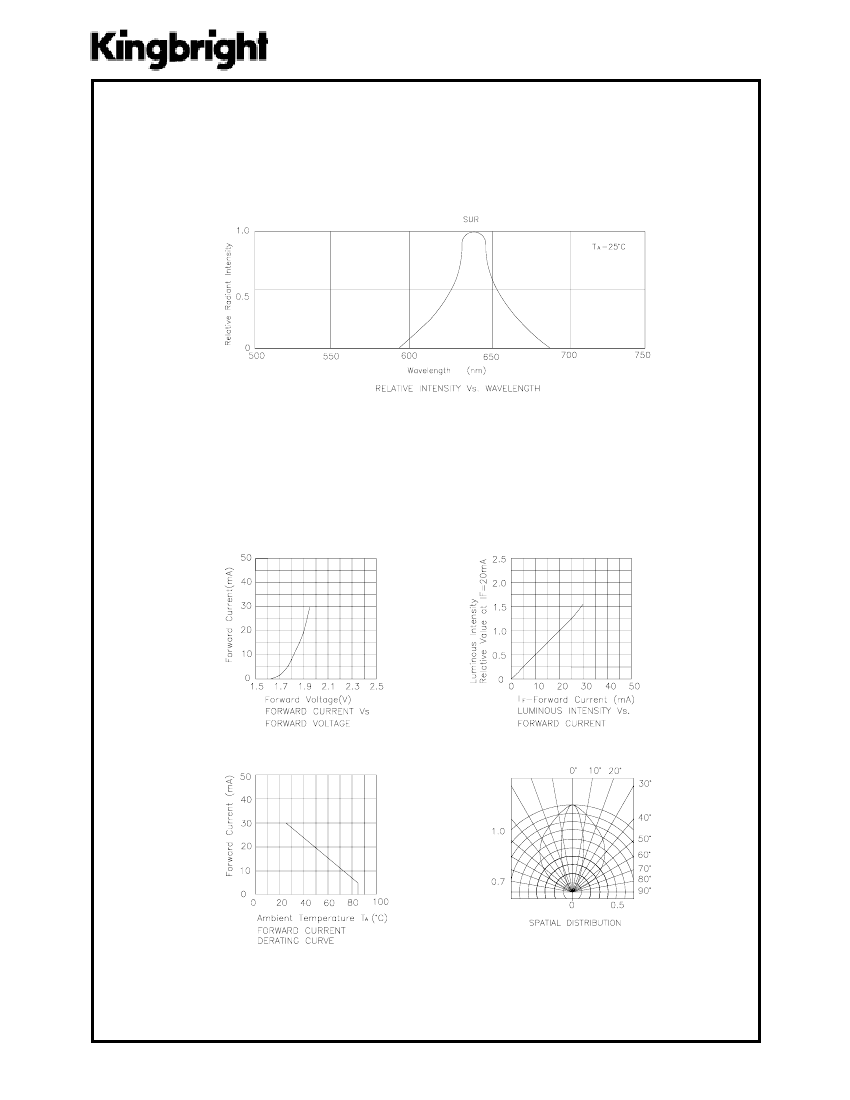

Hyper Red L7123SURC
SPEC NO: CDA0758
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 3 OF 3
