Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LY3341-JME7500

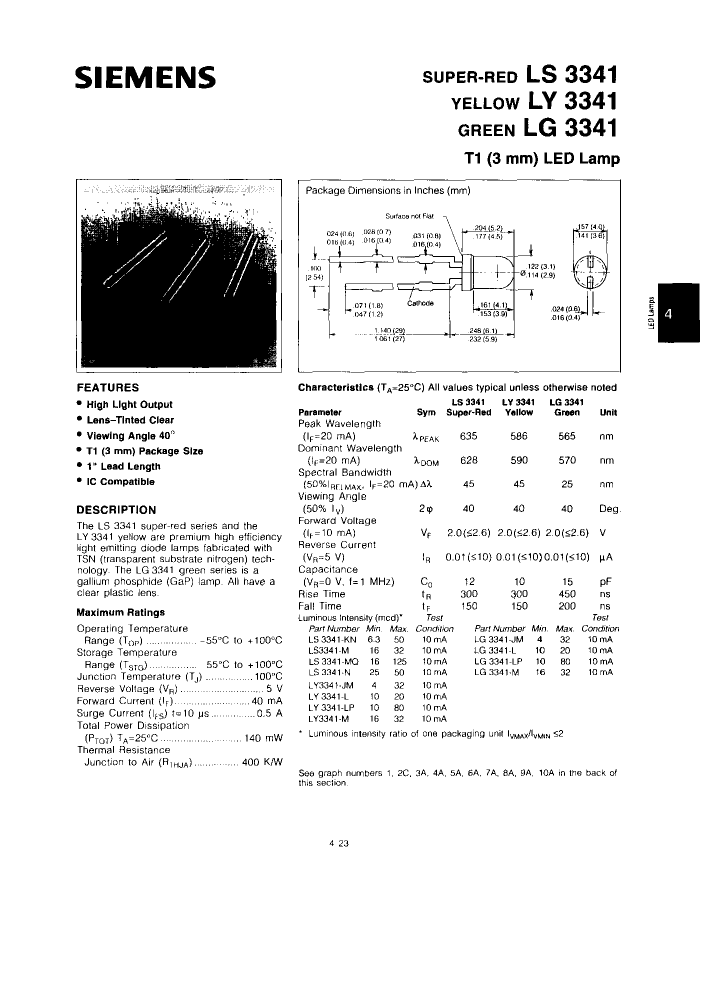

Preview

LY3341-JME7500: DescriptionSingle Color LED, Yellow, Tinted Clear, T-1, 3mm; CategoryLED optoelectronic/LED photoelectric; File Size29KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LY3341-JME7500 Overview

Single Color LED, Yellow, Tinted Clear, T-1, 3mm

LY3341-JME7500 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Other features	IC COMPATIBLE
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	TINTED CLEAR
Nominal luminous intensity	18 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.85 mm
method of packing	BULK
peak wavelength	586 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

LY3341-JME7500 Related Products

	LY3341-JME7500	LY3341-LE7500	LS3341-KNE7500	LY3341-JM	LG3341-LE7500	LG3341-L	LG3341-LPE7500	LG3341-LP
Description	Single Color LED, Yellow, Tinted Clear, T-1, 3mm	Single Color LED, Yellow, Tinted Clear, T-1, 3mm	Single Color LED, Super Red, Tinted Clear, T-1, 3mm	Single Color LED, Yellow, Tinted Clear, T-1, 3mm	Single Color LED, Green, Tinted Clear, T-1, 3mm	Single Color LED, Green, Tinted Clear, T-1, 3mm	Single Color LED, Green, Tinted Clear, T-1, 3mm	Single Color LED, Green, Tinted Clear, T-1, 3mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	YELLOW	YELLOW	SUPER RED	YELLOW	GREEN	GREEN	GREEN	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Lens type	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR	TINTED CLEAR
Nominal luminous intensity	18 mcd	15 mcd	28.15 mcd	18 mcd	15 mcd	15 mcd	45 mcd	45 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	586 nm	586 nm	635 nm	586 nm	565 nm	565 nm	565 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	40 deg	40 deg	40 deg	40 deg	40 deg	40 deg	40 deg	40 deg
Maker	SIEMENS	-	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
