FEATURES
PETERMANN
TECHNIK
- HIGH RELIABILITY FOR LOW COST
Time & Frequency Components
- WIDE FREQUENCY RANGE UP TO 700.0 MHz
- AVAILABLE IN 5.0 AND 3.3 VOLT
- EXCELLENT JITTER PERFORMANCE
- CHEAPEST AVAILABLE LEADED VCXO IN DIP PACKAGE WITH PECL OUTPUT SIGNAL
- EXTENDED TEMPERATURE RANGE TO -40/+85°C AVAILABLE
- APPLICATIONS: FIBER CHANEL, GIGABIT ETHERNET, SDH/SONET, BROADBAND, TELECOM, ETC.
M7502
DIP 14 PACKAGE
96.0 ~ 160.0 MHz
5.0 VOLT
FREQUENCY RANGE
480.0 ~ 700.0 MHz
3.3 VOLT
5 VOLT = +-20 ~ +-100 ppm max.
VS. TEMPERATURE
3.3 VOLT = +-50 ~ +-100 ppm
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
+-5 ppm max.
+-1 ppm max.
VS. LOAD
+-5 ppm max. / first year
VS. AGING
OPERATING TEMPERATURE RANGE
-10/+60°C ~ -40/+85°C
-55/+125°C
STORAGE TEMPERATURE RANGE
VOLTAGE
+5.0 VDC +-5%
+3.3 VDC +-5%
INPUT
CURRENT
100 mA max.
100 mA max.
40/60%
STANDARD
SYMMETRY
45/55%
OPTION
SIGNAL FOR 5.0 VOLT
PECL
SIGNAL FOR 3.3 VOLT
PECL
OUTPUT RISE AND FALL TIME
1.5 ns max. (20% TO 80% PECL)
VDD-1.62 V max.
"0" LEVEL
FOR PECL
VDD-1.02 V min.
"1" LEVEL
NO LOAD
FOR 5.0 VOLT
LOAD
50
Ω
to VDD-2VDC
FOR 3.3 VOLT
START-UP TIME
10 mS max.
INPUT IMPEDANCE
50 kΩ min.
25 ps typ. for 5.0 volt version
PERIOD JITTER RMS
8 ps typ. for 3.3 volt version
CONTROL VOLTAGE RANGE STANDARD
0.5 ~ 4.5 VDC
0 ~ 3.3 VDC
CONTROL VOLTAGE OPTIONAL
0 ~ 5.0 VDC
CENTER VOLTAGE
2.5 VDC
1.65 VDC
PULLABILITY
+-50 ppm min.
LINEARITY
10% max.
SLOPE
POSITIVE
PIN 1
CONTROL VOLTAGE
PIN 7
CASE GROUND
PIN CONNECTION
PIN 8
OUTPUT
PIN 14
SUPPLY VOLTAGE
OTHER PARAMETERS ARE AVAILABLE ON REQUEST / CREATE HERE YOUR SPECIFICATION
SERIES
PACKAGE
PETERMANN-TECHNIK | Amselweg 8 | D-86916 Kaufering
Fon: 00 49 (0) 81 91 / 30 53 95 | Fax: 00 49 (0) 81 91 / 30 53 97
http://www.petermann-technik.de | info@petermann-technik.de
PETERMANN
TECHNIK
Time & Frequency Components
PART NUMBERING GUIDE
EXAMPLE
SERIES
M7302-50-W-S-VX3-50-622.08MHz
M7502 FOR 5 VOLT
M7302 FOR 3.3 VOLT
BLANK = +- 100 ppm
50 = +-50 ppm
25 = +-25 ppm
20 = +-20 ppm
15 = +-15 ppm
X = OTHER VALUE - PLEASE INDICATE YOUR REQUIRED VALUE
BLANK = 0/+70°C
N = -10/+60°C
M = -20/+70°C
W = -40/+85°C
X = OTHER VALUE - PLEASE INDICATE YOUR REQUIRED VALUE
BLANK = 40/60%
S = 45/55%
V = 0.5 ~ 4.5 V FOR 5 VOLT VERSION
VX = 0 ~ 5.0 V FOR 5 VOLT VERSION
V3 = 0.3 ~ 3.0 V FOR 3.3 VOLT VERSION
VX3 = 0 ~ 3.3 V FOR 3.3 VOLT VERSION
BLANK = +-50 ppm min.
IF YOU REQUIRE ANOTHER VALUE PLEASE INDICATE THE REQUIRED VALUE
FREQUENCY IN MHz
G
STABILITY VS. TEMPERATURE
TEMPERATURE RANGE
SYMMETRY
CONTROL VOLTAGE
PULLING RANGE
FREQUENCY
SMD-GULLWING PACKAGE
OUTLINE DRAWING OF M7502 AND M7302
4-00.55max
#1
#7(Grounded to the Case)
13.1max
7.62
6.05max 7.6max
0.8
#14
15.24 #8
20.4max
PIN Connection
#1 CONTROL V
#7
GND
#8
OUTPUT
V
DD
#14
Unit:mm
PETERMANN-TECHNIK | Amselweg 8 | D-86916 Kaufering
Fon: 00 49 (0) 81 91 / 30 53 95 | Fax: 00 49 (0) 81 91 / 30 53 97
http://www.petermann-technik.de | info@petermann-technik.de
PETERMANN
TECHNIK
Time & Frequency Components

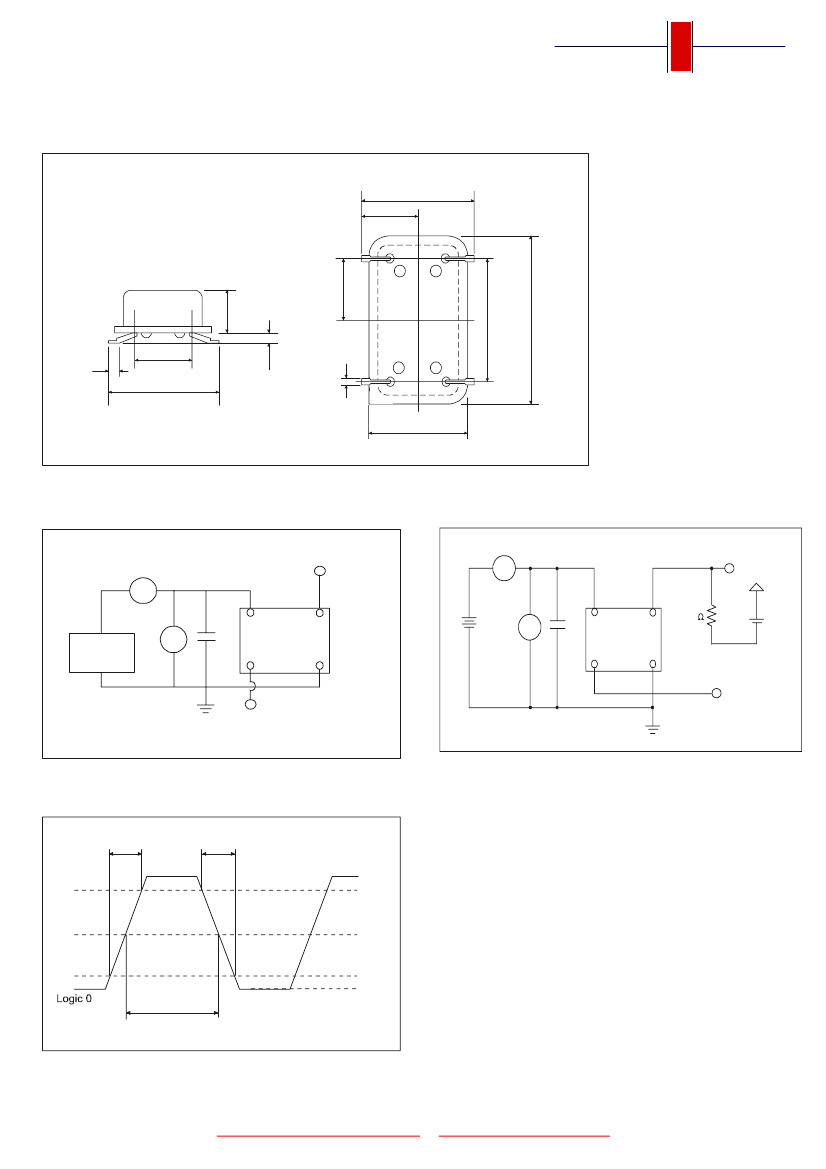

OUTLINE DRAWING OF SMD-GULLWING PACKAGE
14.98+0.2
-
7.49+0.1
-
#7
7.62+0.1
-
#8
7.6 max.
1.14
7.62+0.1
-
14.98+0.2
-
0.63+0.1
-
TYP(4 PLACES)
1.35+0.1
-
#1
#14
12.95max
Unit: mm
TEST CIRCUIT FOR PECL TYPE M7502
TEST CIRCUIT FOR PECL TYPE M7302
+
mA
M
-
#14
+
VM
-
TEST
POINT
#8
15.24+0.1
-
A
V
DD
#14
POWER
SUPPLY
V
#8
50
+
-
2.0 V
20.57max
+
POWER
SUPPLY
-
V
DD
OUT
OSCILLATOR
0,1µF
GND
#1
CONTROL
VOLTAGE
#7
V
DD
OUT
0,1µF OSCILLATOR
GND
#1
#7
CONTROL
VOLTAGE
OUTPUT WAVE FORM OF PECL
Tr
Logic 1
Tf
V
OH
80%
20%
V
OL
Symmetry
