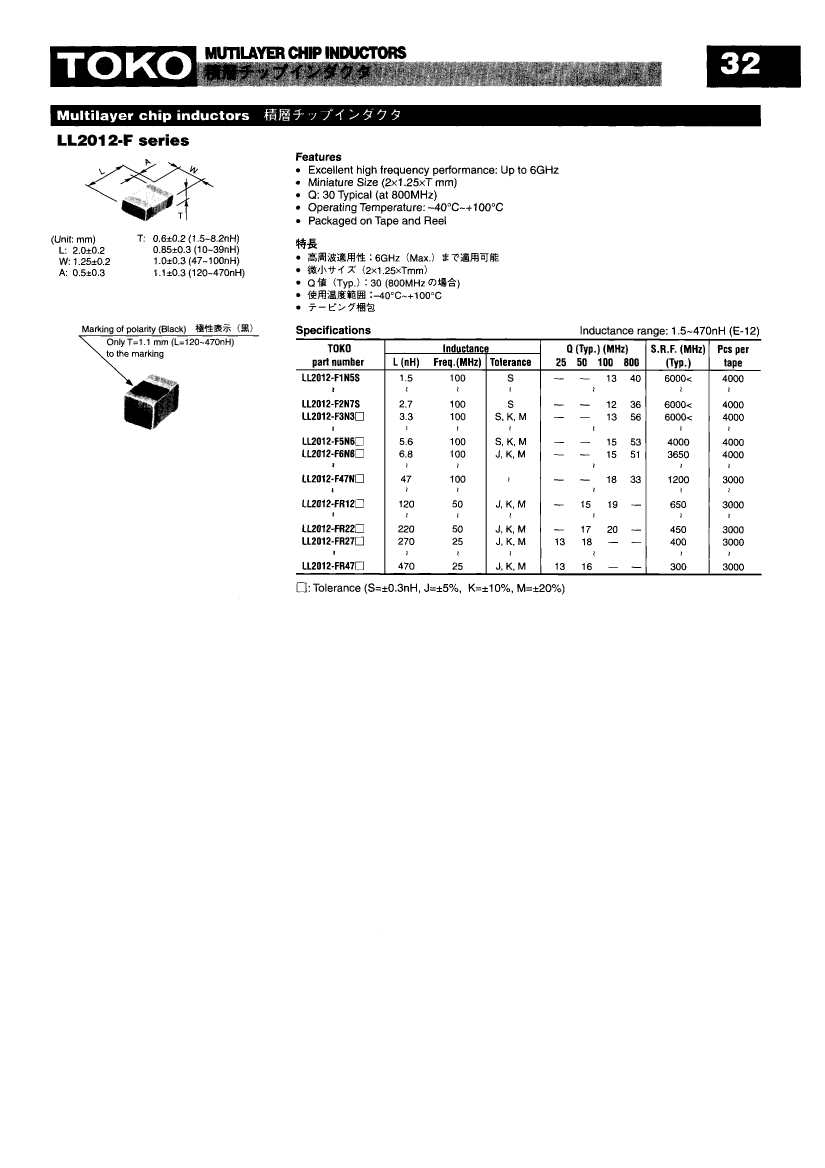

LL2012-FR47M datasheet, PDF - EEWORLD Datasheet

LL2012-FR47M: DescriptionGeneral Purpose Inductor, 0.47uH, 20%, 1 Element, Ceramic-Core, SMD; CategoryPassive components inductor; File Size448KB，7 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

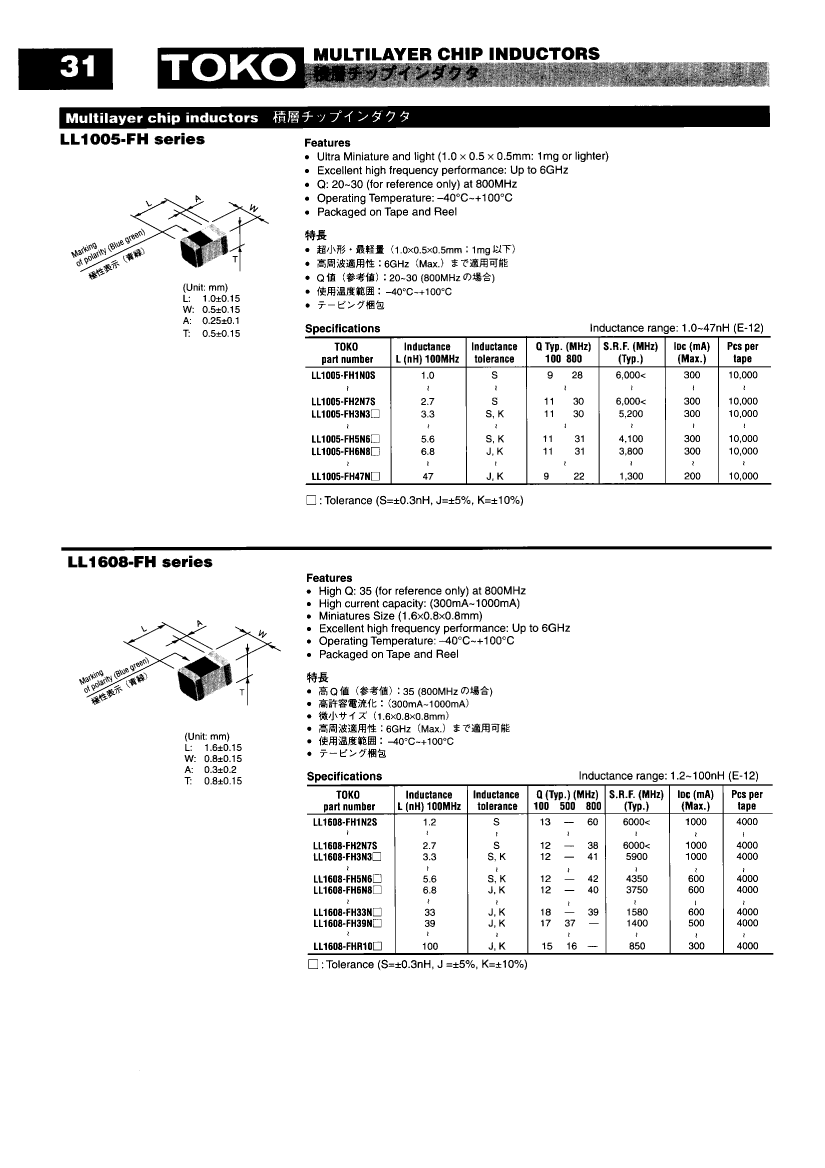

LL2012-FR47M Overview

General Purpose Inductor, 0.47uH, 20%, 1 Element, Ceramic-Core, SMD

Parameter Name	Attribute value
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	4 Ω
Nominal inductance(L)	0.47 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.1 A
self resonant frequency	300 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	MULTILAYER
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	20%

	LL2012-FR47M	LL2012-F6N8M	LL2012-F5N6M	LL2012-F3N3M
Description	General Purpose Inductor, 0.47uH, 20%, 1 Element, Ceramic-Core, SMD	General Purpose Inductor, 0.0068uH, 20%, 1 Element, Ceramic-Core, SMD	General Purpose Inductor, 0.0056uH, 20%, 1 Element, Ceramic-Core, SMD	General Purpose Inductor, 0.0033uH, 20%, 1 Element, Ceramic-Core, SMD
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
core material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
DC Resistance	4 Ω	0.25 Ω	0.23 Ω	0.13 Ω
Nominal inductance(L)	0.47 µH	0.0068 µH	0.0056 µH	0.0033 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	0.1 A	0.3 A	0.3 A	0.3 A
self resonant frequency	300 MHz	3650 MHz	4000 MHz	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO
special characteristics	MULTILAYER	MULTILAYER	MULTILAYER	MULTILAYER
surface mount	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	100 MHz	100 MHz	100 MHz	100 MHz
Tolerance	20%	20%	20%	20%
Maker	TOKO, INC.	-	TOKO, INC.	TOKO, INC.
