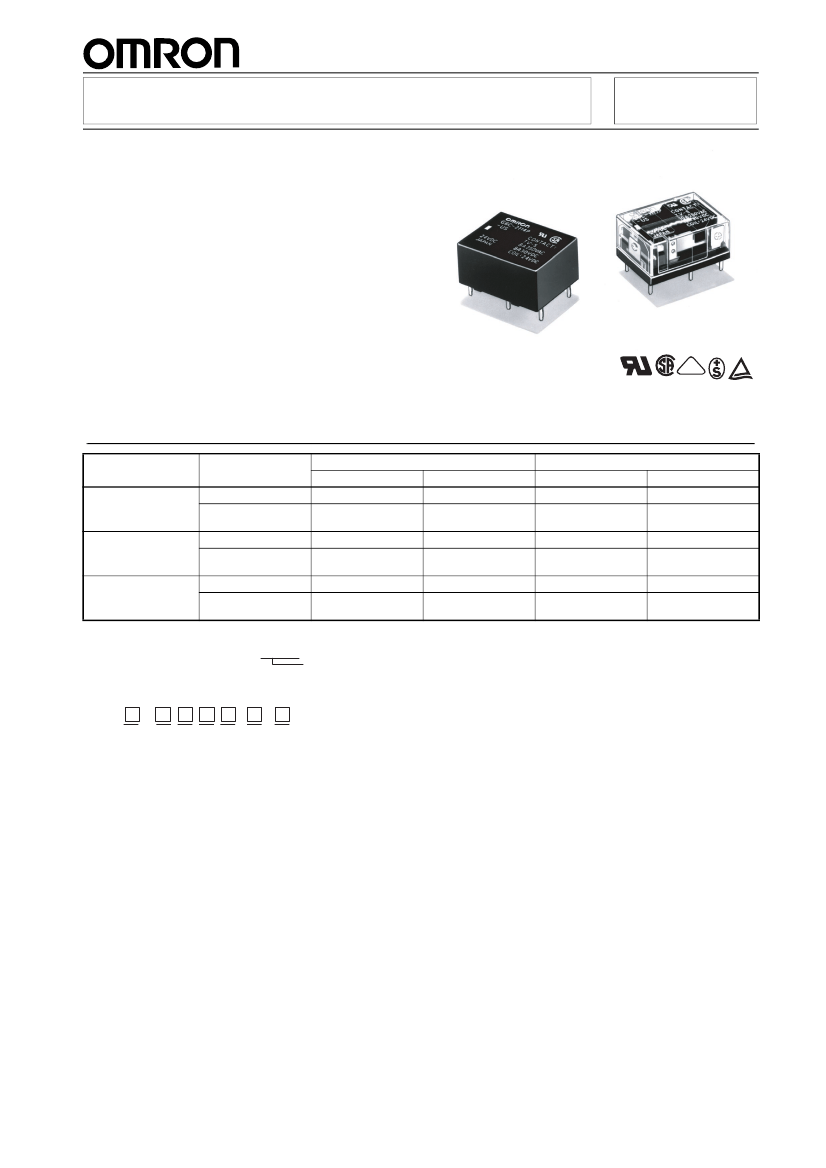

PCB Relay
SPST-NO Type Breaks 10-A Loads;
SPST-NO + SPST-NC Type
Breaks 8-A Load
I
I
I
I
I
G6C
Compact: 20
15
10 mm (L
W
H).
Low power consumption: 200 mW.
Flux protection or fully sealed construction avail-
able.
Unique moving loop armature reduces relay size,
magnetic interference, and contact bounce.
Single- and double-winding latching types also
available
R
C
X
+E
VDE
Ordering Information
Classification
Single-side stable
Contact form
SPST-NO
SPST-NO + SPST-
NC
Single-winding
latching
Double-winding
latching
SPST-NO
SPST-NO + SPST-
NC
SPST-NO
SPST-NO + SPST-
NC
Straight PCB
Flux protection
G6C-1117P-US
G6C-2117P-US
G6CU-1117P-US
G6CU-2117P-US
G6CK-1117P-US
G6CK-2117P-US
Fully sealed
G6C-1114P-US
G6C-2114P-US
G6CU-1114P-US
G6CU-2114P-US
G6CK-1114P-US
G6CK-2114P-US
Self-clinching PCB
Flux protection
G6C-1117C-US
G6C-2117C-US
G6CU-1117C-US
G6CU-2117C-US
G6CK-1117C-US
G6CK-2117C-US
Fully sealed
G6C-1114C-US
G6C-2114C-US
G6CU-1114C-US
G6CU-2114C-US
G6CK-1114C-US
G6CK-2114C-US
Note:
When ordering, add the rated coil voltage to the model number.
Example: G6C-1117P-US 12 VDC
Rated coil voltage
Model Number Legend
G6C
1
-
2
3
4 5
-
6
7
VDC
3. Contact Type
1: Standard
4. Enclosure Ratings
7: Flux protection
4: Fully sealed
5. Terminals
P: Straight PCB
C: Self-clinching PCB
6. Approved Standards
US: UL/CSA certified
7. Rated Coil Voltage
3, 5, 6, 12, 24 VDC
1. Relay Function
None: Single-side stable
U:
Single-winding latching
K:
Double-winding latching
2. Contact Form
11:
SPST-NO
21:
SPST-NO + SPST-NC
1
G6C
I
G6C
Accessories (Order Separately)
Applicable relay
Back connecting socket*
P6C-06P
Back Connecting Sockets
G6C(U)-1114P-US
G6C(U)-1117P-US
G6C(U)-2114P-US
G6C(U)-2117P-US
G6CK-1114P-US
G6CK-1117P-US
G6CK-2114P-US
G6CK-2117P-US
P6C-08P
*Not applicable to the self-clinching versions.
The operating current for the socket is 5 A max.
Removal Tool
Hold-down Clips
P6B-Y1
P6B-C2
Specifications
I
Coil Ratings
3 VDC
67 mA
45
W
Armature OFF
Armature ON
0.078
0.067
5 VDC
40 mA
125
W
0.22
0.18
6 VDC
33.3 mA
180
W
0.36
0.29
12 VDC
16.7 mA
720
W
1.32
1.13
24 VDC
8.3 mA
2,880
W
4.96
4.19
Single-side Stable Type
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must operate voltage
Must release voltage
Max. voltage
Power consumption
70% max. of rated voltage
10% min. of rated voltage
160% of rated voltage (at 23
C)
Approx. 200 mW
Single-winding Latching Type
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Armature OFF
Armature ON
3 VDC
67 mA
45
W
0.09
0.06
5 VDC
40 mA
125
W
0.25
0.20
6 VDC
33.3 mA
180
W
0.36
0.24
12 VDC
16.7 mA
720
W
1.75
1.17
24 VDC
8.3 mA
2,880
W
5.83
3.84
Must operate voltage
Must release voltage
Max. voltage
Power consumption
70% max. of rated voltage
70% min. of rated voltage
160% of rated voltage (at 23
C)
Approx. 200 mW
2
G6C
Double-winding Latching Type
Rated voltage
Set coil
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Reset coil
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must set voltage
Must reset voltage
Max. voltage
Power consumption
Note:
Armature OFF
Armature ON
Armature OFF
Armature ON
3 VDC
93.5 mA
32.1
W
0.03
0.02
93.5 mA
32.1
W
0.03
0.02
5 VDC
56.0 mA
89.3
W
0.07
0.06
56.0 mA
89.3
W
0.08
0.07
6 VDC
46.7 mA
129
W
0.10
0.08
46.7 mA
129
W
0.12
0.10
12 VDC
23.3 mA
514
W
0.37
0.32
23.3 mA
514
W
0.47
0.38
24 VDC
11.7 mA
2,056
W
1.56
1.18
11.7 mA
2,056
W
1.46
1.13
G6C
70% max. of rated voltage
70% min. of rated voltage
130% of rated voltage (at 23
C)
Set coil:
Approx. 280 mW
Reset coil: Approx. 280 mW
1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The minimum pulse width of the set and reset voltage is 20 ms.
I
Contact Ratings
Item
SPST-NO
Resistive load
(cos
f
= 1)
10 A at 250 VAC;
10A at 30 VDC
AgCdO
10 A
10 A
2,500 VA, 300 W
10 mA at 5 VDC
1,250 VA, 220 W
8A
8A
2,000 VA, 240 W
875 VA, 170 W
380 VAC, 125 VDC (the case of latching 250 VAC, 125 VDC)
Inductive load
(cos
f
= 0.4; L/R = 7 ms)
5 A at 250 VAC;
5 A at 30 VDC
Resistive load
(cos
f
= 1)
8 A at 250 VAC;
8A at 30 VDC
SPST-NO+SPST-NC
Inductive load
(cos
f
= 0.4; L/R = 7 ms)
3.5 A at 250 VAC;
3.5 A at 30 VDC
Load
Rated load
Contact material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value)
I
Characteristics
30 m
W
max.
10 ms max. (mean value: approx. 5 ms)
10 ms max. (mean value: approx. 2 ms; latching types: mean value: approx. 5 ms)
Operate: 5 ms max.
Release: 5 ms max.
Latching type: 20 ms (at 23°C)
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 M
W
min. (at 500 VDC, at 250 VDC between set coil and reset coil)
2,000 VAC, 50/60 Hz for 1 min between coil and contacts
2,000 VAC, 50/60 Hz for 1 min between contacts of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
250 VAC, 50/60 Hz for 1 min between set and reset coils
6.000 V (1.2 x 50
µs)
between coil and contacts (latching types: 4,500 V, 1.2 50
µs)
Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Destruction: 1,000 m/s
2
Malfunction: 100 m/s
2
Operating:
-
25°C to 70°C (with no icing)
Operating: 5% to 85%
Mechanical: 50,000,000 operations min. (at 18,000 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr)
Approx. 5.6 g
Contact resistance
Operate (set) time
Release (reset) time
Bounce time
Min. set/reset signal width
Max. switching frequency
Insulation resistance
Dielectric strength
Impulse withstand voltage
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Endurance
Weight
3
G6C
I
G6C
Approved Standards
Model
Contact form
SPST-NO
Coil rating
3 to 60 VDC
Contact rating
10 A, 250 VAC (general use)
10 A, 30 VDC (resistive load)
1/6 hp, 125 VAC
1/4 hp, 125 VAC
1/4 hp, 250 VAC
1/3 hp, 250 VAC
TV-5
600 W, 120 VAC (tungsten)
530 VA, 20 to 265 VAC, 2 A max. (pilot duty)
43.2 VA, 30 VDC (pilot duty)
12LRA, 2.2FLA, 30 VDC (30,000 cycle)
8 A, 250 VAC (general use)
8 A, 30 VDC (resistive load)
1/6 hp, 125 VAC
1/4 hp, 125 VAC
1/4 hp, 250 VAC
TV-5
600 W, 120 VAC (tungsten)
530 VA, 20 to 265 VAC, 2 A max. (pilot duty)
43.2 VA, 30 VDC (pilot duty)
12LRA, 2.2FLA, 30 VDC (30,000 cycle)
UL508 (File No. E41643)
G6C-1114P-US
G6C-1114C-US
G6C-1117P-US
G6C-1117C-US
G6C-2114P-US
G6C-2114C–US
G6C-2117P-US
G6C-2117C-US
SPST-NO + SPST-NC
CSA C22.2 No.14 (File No. LR31928)
Model
G6C-1114P-US
G6C-1114C-US
G6C-1117P-US
G6C-1117C-US
Contact form
SPST-NO
Coil rating
3 to 60 VDC
Contact rating
10 A, 250 VAC (general use)
10 A, 30 VDC (resistive load)
1/6 hp, 125 VAC
1/4 hp, 125 VAC
1/4 hp, 250 VAC
1/3 hp, 250 VAC
TV-5
600 W, 120 VAC (tungsten)
8 A, 250 VAC (general use)
8 A, 30 VDC (resistive load)
1/6 hp, 125 VAC
1/4 hp, 125 VAC
1/4 hp, 250 VAC
TV-5
600 W, 120 VAC (tungsten)
G6C-2114P-US
G6C-2114C-US
G6C-2117P-US
G6C-2117C-US
SPST-NO + SPST-NC
3 to 60 VDC
4
G6C
G6C

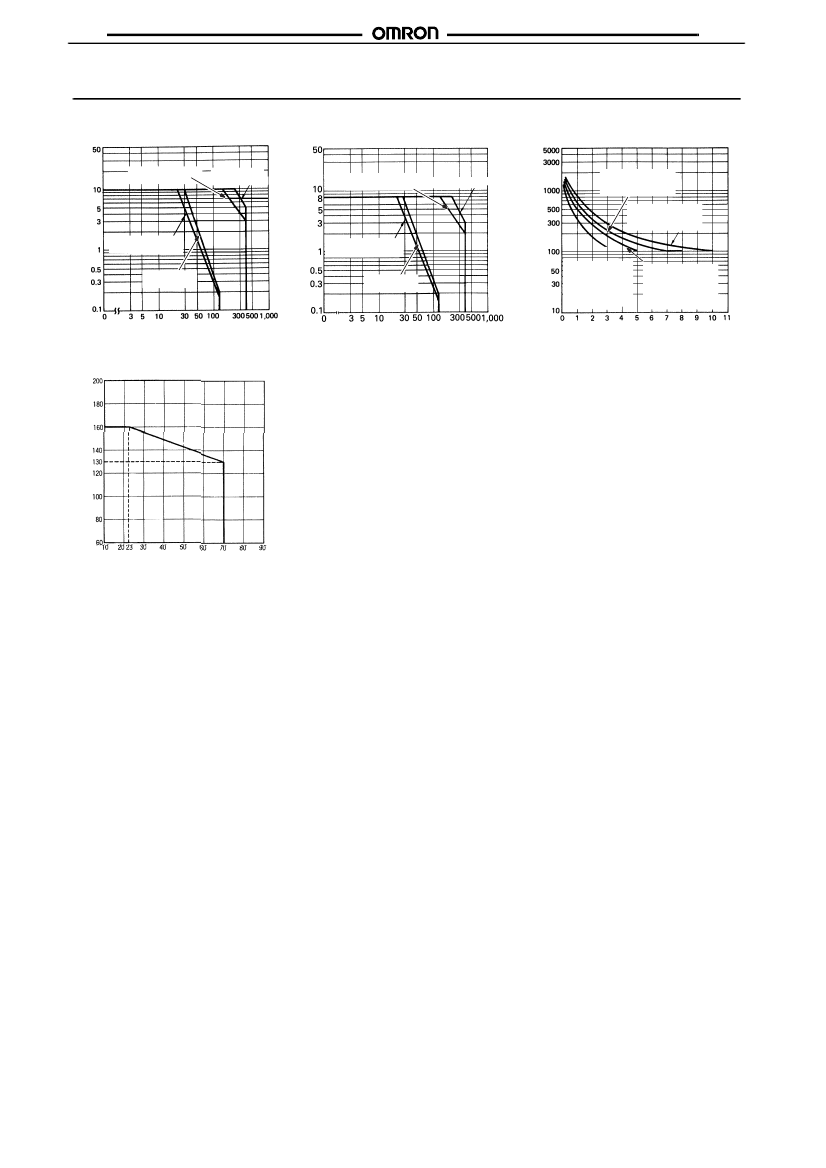

Engineering Data
Maximum Switching Power
SPST-NO
SPST-NO + SPST-NC
AC inductive load
(cosφ = 0.4)
AC resistive
load
Endurance
Endurance (x10
3
operations)
Switching current (A)
Switching current (A)
AC inductive load
(cosφ = 0.4)
AC resistive load
G6C-2114P-US
250-VAC resistive
30-VDC resistive
G6C-1114P-US
250-VAC resistive
30-VDC resistive
DC inductive load
(L/R = 7 ms)
DC resistive
load
DC inductive load
(L/R = 7 ms)
DC resistive
load
G6C-2114P-US
250-VAC induc
tive (cosφ = 0.4)
30-VDC induc
tive (L/R = 7 ms)
G6C-1114P-US
250-VAC induc
tive (cosφ = 0.4)
30-VDC inductive
(L/R = 7 ms)
Switching voltage (V)
Switching voltage (V)
Switching current (A)
Ambient Temperature vs.
Maximum Coil Voltage
Maximum coil voltage (%)
Note:
The maximum coil voltage refers to the maxi-
mum value in a varying range of operating
power voltage, not a continuous voltage.
Ambient temperature (°C)
5
