94784-118 datasheet, PDF - EEWORLD Datasheet

94784-118: DescriptionCard Edge Connector, 72 Contact(s), 1 Row(s), Female, 40 Degree, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,; CategoryThe connector The connector; File Size146KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

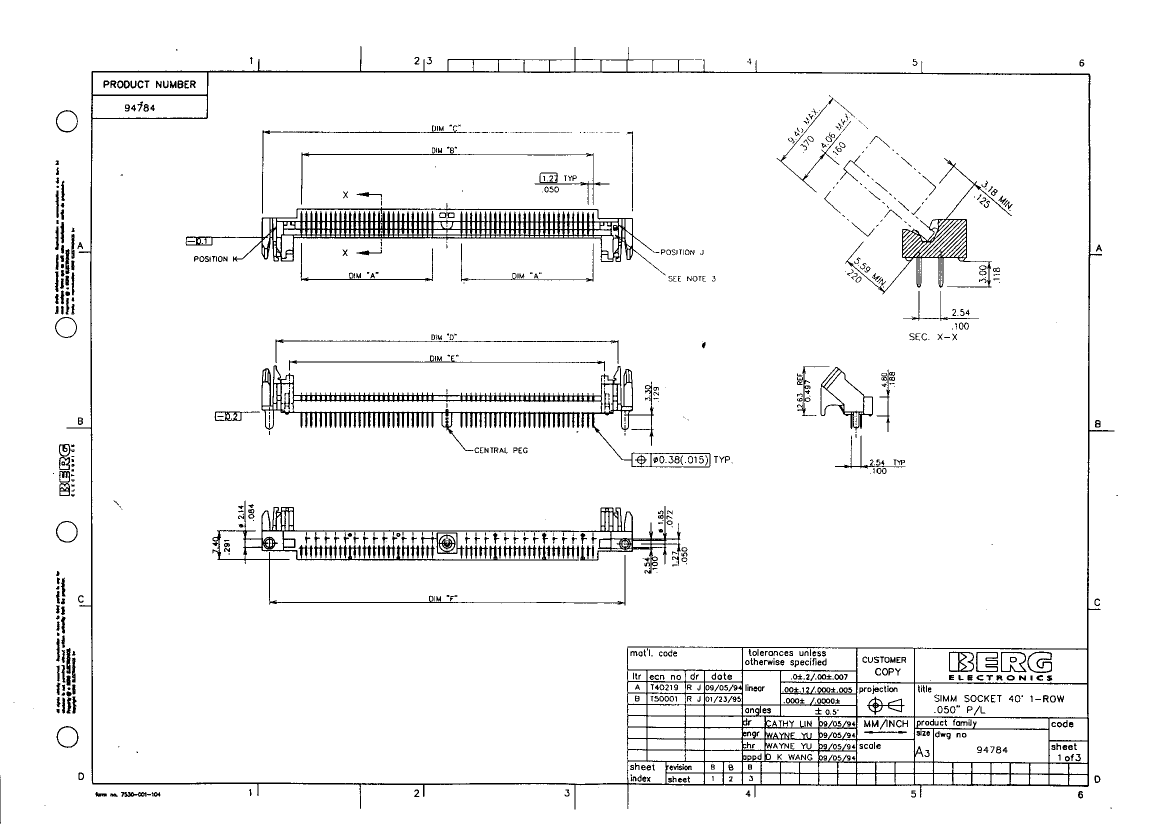

94784-118 Overview

Card Edge Connector, 72 Contact(s), 1 Row(s), Female, 40 Degree, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Board mount options	LOCATING POSTS
body width	0.291 inch
subject depth	0.48 inch
body length	4.55 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	94784
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	40 DEGREE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72
UL Flammability Code	94V-0

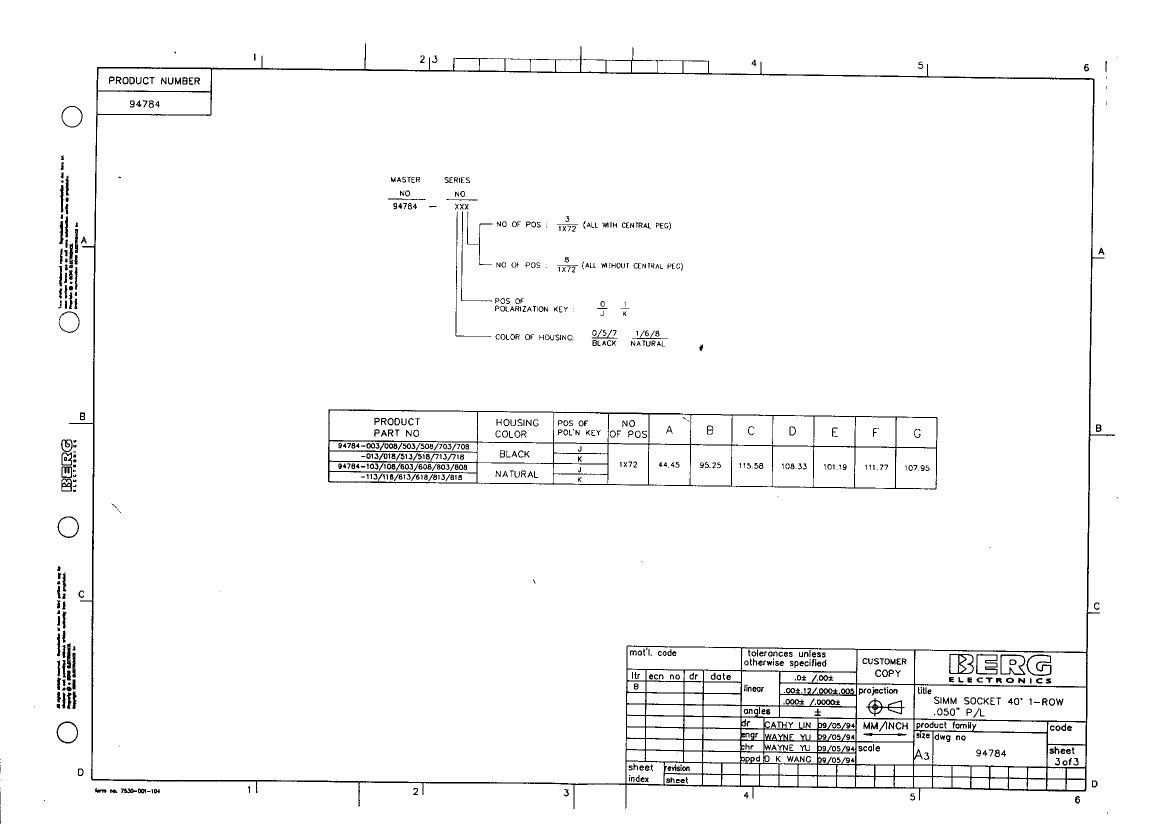

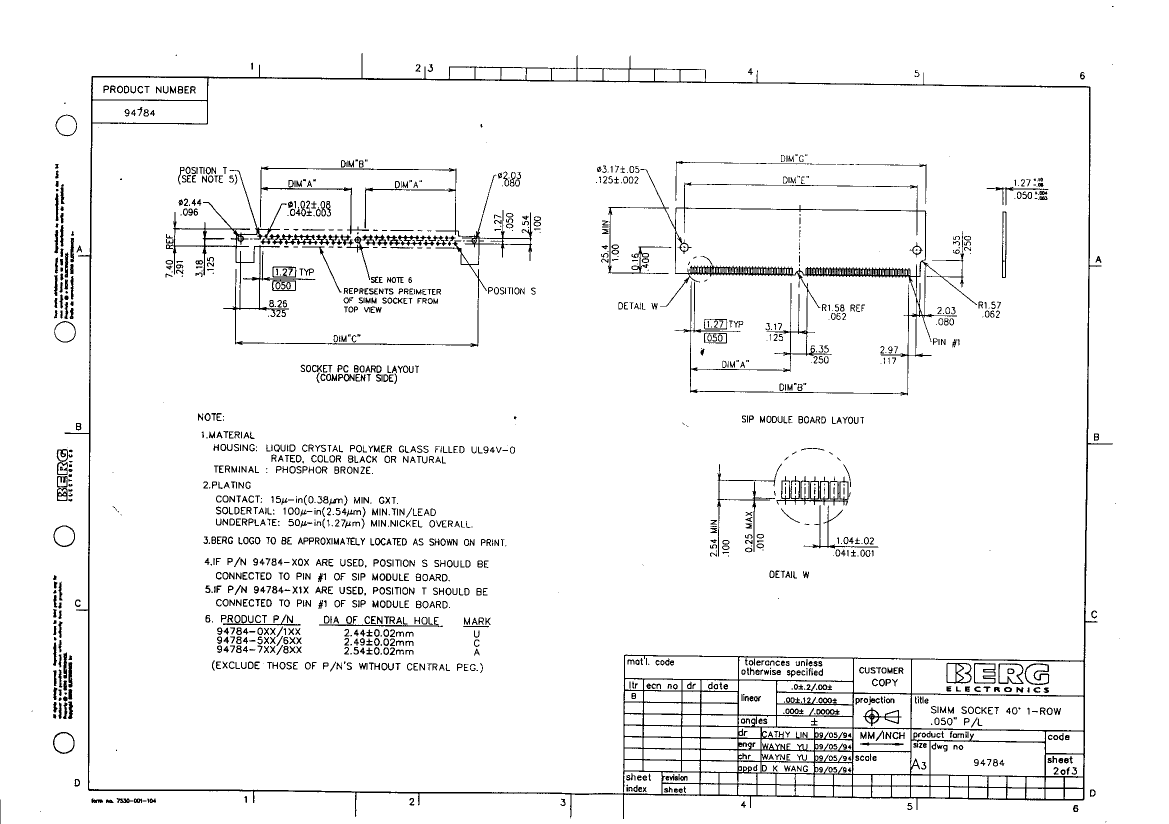

PDM: Rev:B

STATUS:

Released

Printed: Oct 17, 2003
