180-071-ZN63 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 180-071-ZN63

Preview

180-071-ZN63: DescriptionSIMPLEX FIBER OPTIC CONNECTOR, PLUG; CategoryThe connector The connector; File Size187KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-071-ZN63 Overview

SIMPLEX FIBER OPTIC CONNECTOR, PLUG

180-071-ZN63 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	POLARIZED
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	180-071
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

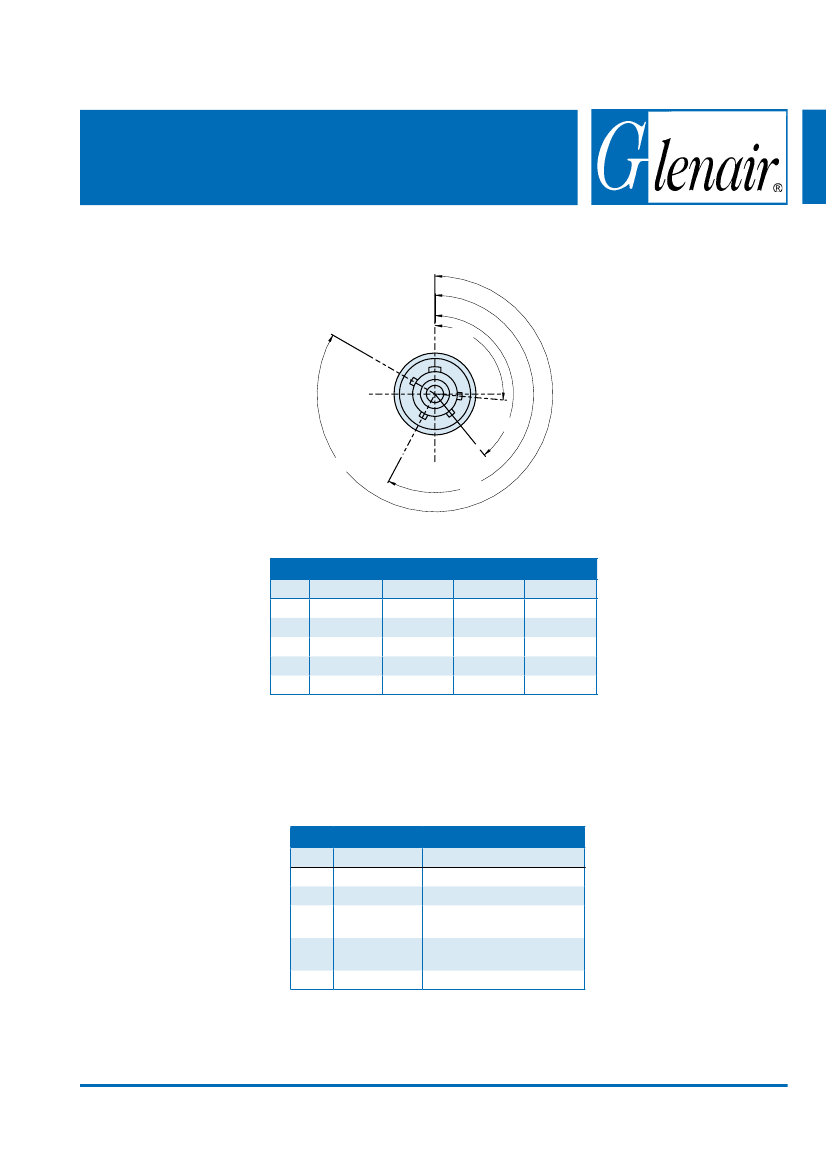

MIL-DTL-38999

Connectors

Polarizing

Master

Key

Environment Resistant

for Glenair 181-001 and 181-002 Termini

180-071 (-6) Plug

Single Channel Fiber Optic Plug Connector

180-071-C 6 1

Product Series

Basic Number

Finish

(Table II)

6 = Plug

Assembly

Alternate Key Position

(1,2,3,4, & 5) (Table I)

O-ring

.375-.05p-.1L-DS-2B

1.300 (33.0)

Max

.375-24 UNF-2A

O

.670 (17.0) Max

-6

PLUG ASSEMBLY

APPLICATION NOTES

1.

2.

Assembly packaged in plastic bag and tag identified with

manufacturer's name and part number.

Glenair 180-071 Connector features:

A. Plug Body: Aluminum Alloy (See Table II).

B. O-Ring: Fluorosilicone.

C. Fiber Optic Termini: Glenair 181 Series (Not supplied).

D. Operating Temperature Range: -55°C to +125°C.

Metric dimensions (mm) are in parentheses.

3.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

B-26
