8115: DescriptionRF/Microwave Termination, 0MHz Min, 26500MHz Max, 50ohm, FM-1; CategoryWireless rf/communication Radio frequency and microwave; File Size110KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

8115 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8115	-	-	View	Buy Now

8115 Overview

RF/Microwave Termination, 0MHz Min, 26500MHz Max, 50ohm, FM-1

8115 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EMC Technology RF Labs
package instruction	FM-1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=100W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	26500 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

TITLE:

SPECIFICATION CONTROL DRAWING

PART IDENTIFIER:

8115

DESCRIPTION:

50 OHM FLANGE LOAD

ASSEMBLY DWG:

2100094

1.0

SPECIFICATIONS:

1.1

ELECTRICAL:

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

FREQUENCY RANGE: DC-26.5GHZ.

1.1.3

INPUT POWER (MAX @ 60°C): (DERATED LINEARLY TO ZERO POWER @ 150°C)

1.1.3.1 AVERAGE: 1 WATT.

1.1.3.2 PEAK: 100 WATTS (100US PULSE WIDTH AND 0.1% DUTY CYCLE).

1.1.4

VSWR: SEE TABLE BELOW.

MAXIMUM VSWR

8 - 12 GHZ

1.15

DC - 4 GHZ

1.05

1.2

4 - 8 GHZ

1.10

12 - 18 GHZ

1.15

18 - 26.5 GHZ

1.20

MECHANICAL:

1.2.1

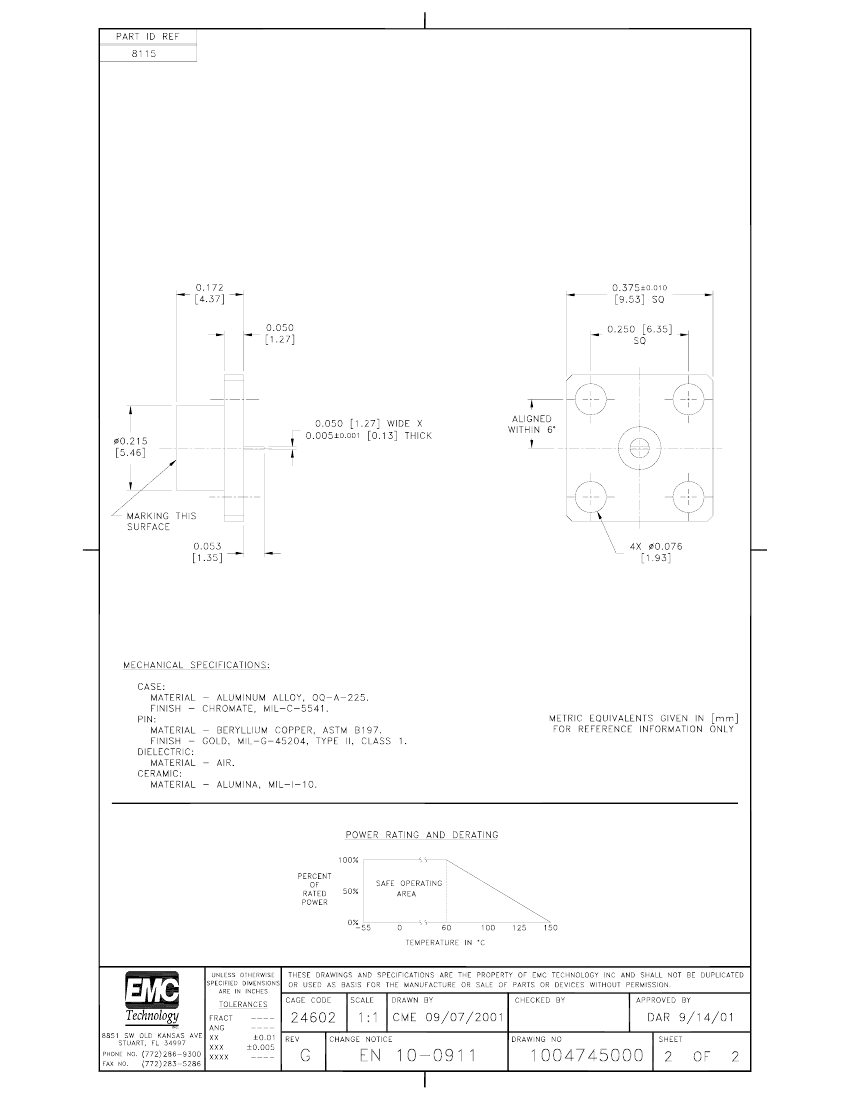

OUTLINE DWG: SEE SHEET 2.

ENVIRONMENTAL:

1.3.1

TEMPERATURE RANGE:

1.3.1.1 NON-OPERATING: -55°C TO +150°C.

1.3.1.2 OPERATING: -55°C TO +150°C.

1.3.2

VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.

1.3.3

SHOCK: PER MIL-STD-202, METHOD 213, COND. I.

1.3.4

MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT LOADING VOLTAGE IS NOT

APPLICABLE.

"EMCT"

LEGIBILITY AND PERMANENCY PER MIL-STD-130.

1.3

2.0

UNIT MARKING:

3.0

QUALITY ASSURANCE:

3.1

3.2

PERFORM INSPECTION IN ACCORDANCE WITH 824W170 AND 824F036 FOR COMMERCIAL GRADE PRODUCT.

TEST DATA REQUIREMENTS:

3.2.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.2.2

DATA RETENTION - 24 MONTHS

STANDARD PACK PER 755W002.

4.0

PACKAGING:

EMC TECHNOLOGY

8851 SW OLD KANSAS AVE

STUART, FLORIDA 34997

423F006 REV.-

CAGE CODE # 24602

CHANGE NOTICE

EN 10-0911

DWG #

REV LVL

SHEET

1004745000

8115 Related Products

	8115
Description	RF/Microwave Termination, 0MHz Min, 26500MHz Max, 50ohm, FM-1
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EMC Technology RF Labs
package instruction	FM-1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=100W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	26500 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.2
