8445EP Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm,

8445EP Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=100W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	41.76 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3

8445EP Preview

TITLE:

SPECIFICATION CONTROL DRAWING

PART IDENTIFIER:

8445EP

DESCRIPTION:

50 OHM FLANGE LOAD

ASSEMBLY DWG:

2100414

1.0

SPECIFICATIONS:

1.1

ELECTRICAL:

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

FREQUENCY RANGE: DC-18GHZ.

1.1.3

INPUT POWER: 15 WATTS.

1.1.3.1 FULL RATED POWER TO 60°C, DERATED LINEARLY TO 0 WATTS AT 125°C.

1.1.3.2 PEAK POWER, 100 WATTS FOR 10US PULSE WIDTH @ 1% DUTY CYCLE.

1.1.4

VSWR: DC TO 4.0 GHZ - 1.10 MAX.

4.1 TO 8.0 GHZ - 1.15 MAX.

8.1 TO 12.0 GHZ - 1.20 MAX.

12.1 TO 18.0 GHZ - 1.30 MAX.

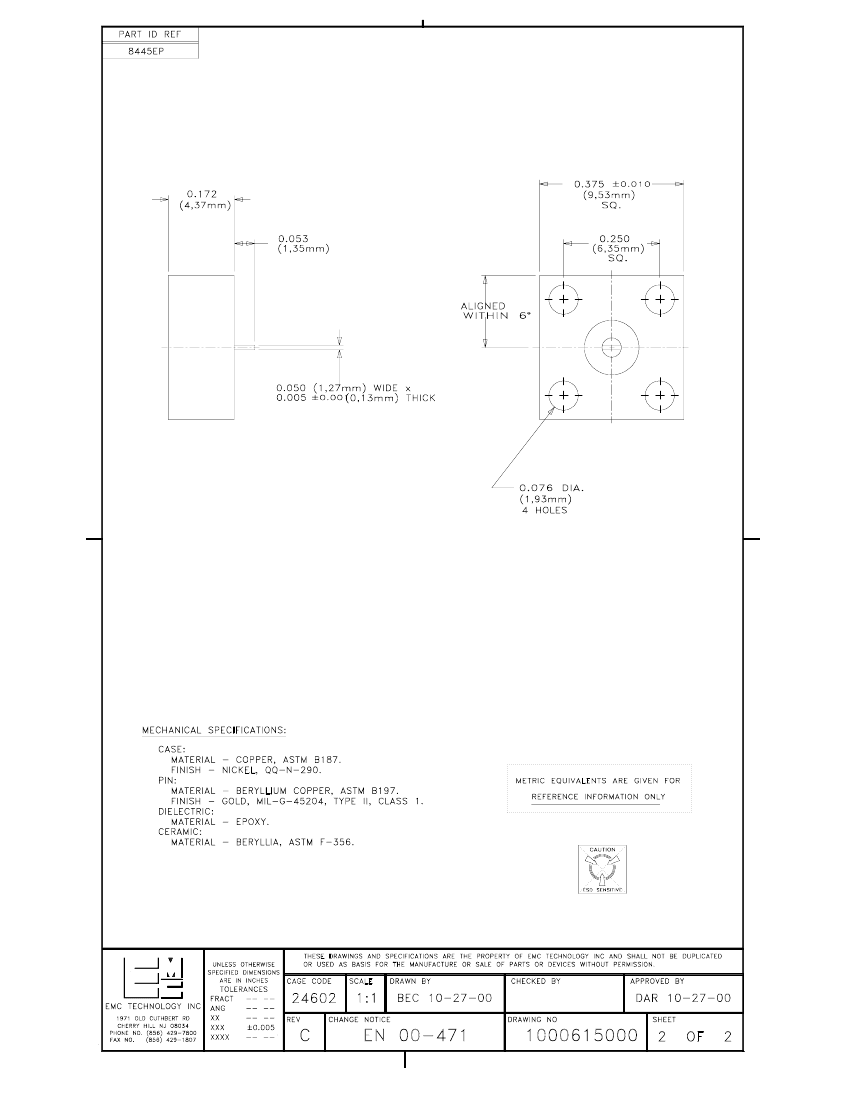

MECHANICAL:

1.2.1

OUTLINE DWG: SEE SHEET 2.

1.2.2

WORKMANSHIP: PER MIL-STD-454, REQUIREMENT 9.

ENVIRONMENTAL:

1.3.1

TEMPERATURE RANGE:

1.3.2.1 NON-OPERATING: -55°C TO +150°C.

1.3.2.2 OPERATING: -55°C TO +125°C.

1.3.3

VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.

1.3.4

SHOCK: PER MIL-STD-202, METHOD 213, COND. I.

1.3.5

MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT LOADING VOLTAGE IS NOT

APPLICABLE.

"EMCT"

LEGIBILITY AND PERMANENCY PER MIL-STD-130

1.2

1.3

2.0

UNIT MARKING:

3.0

QUALITY ASSURANCE:

3.1

SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.

3.1.1

VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO CONTROL DRAWING REQUIREMENTS,

INCLUDING SMA INTERFACE.

3.1.2

MEASURE AND RECORD VSWR @ 1 TO 18 GHZ IN 1 GHZ INCREMENTS.

3.1.2.1 ACCEPTANCE LIMITS: SEE ELECTRICAL 1.1.4.

TEST DATA REQUIREMENTS:

3.2.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.2.2

DATA RETENTION: STANDARD.

STANDARD PACK PER MC0023.

3.2

4.0

PACKAGING:

ENG

PUR

MFG

PLAN

EMC TECHNOLOGY, INC

1971 OLD CUTHBERT ROAD

CHERRY HILL, NJ 08034

CAGE CODE # 24602

CHANGE NOTICE

EN 00-471

DWG #

REV LVL

SHEET

1000615000

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
