220-07H1661P4: DescriptionRear Mounted Jam Nut Box Mount Receptacle; File Size316KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

220-07H1661P4 Overview

Rear Mounted Jam Nut Box Mount Receptacle

Preview

Download Datasheet

View All

Series 22

Geo-Marine

JAM NUT

E

Master

Key

Shell Style

07

= Standard

17

= Scoop Proof

Shell

Size

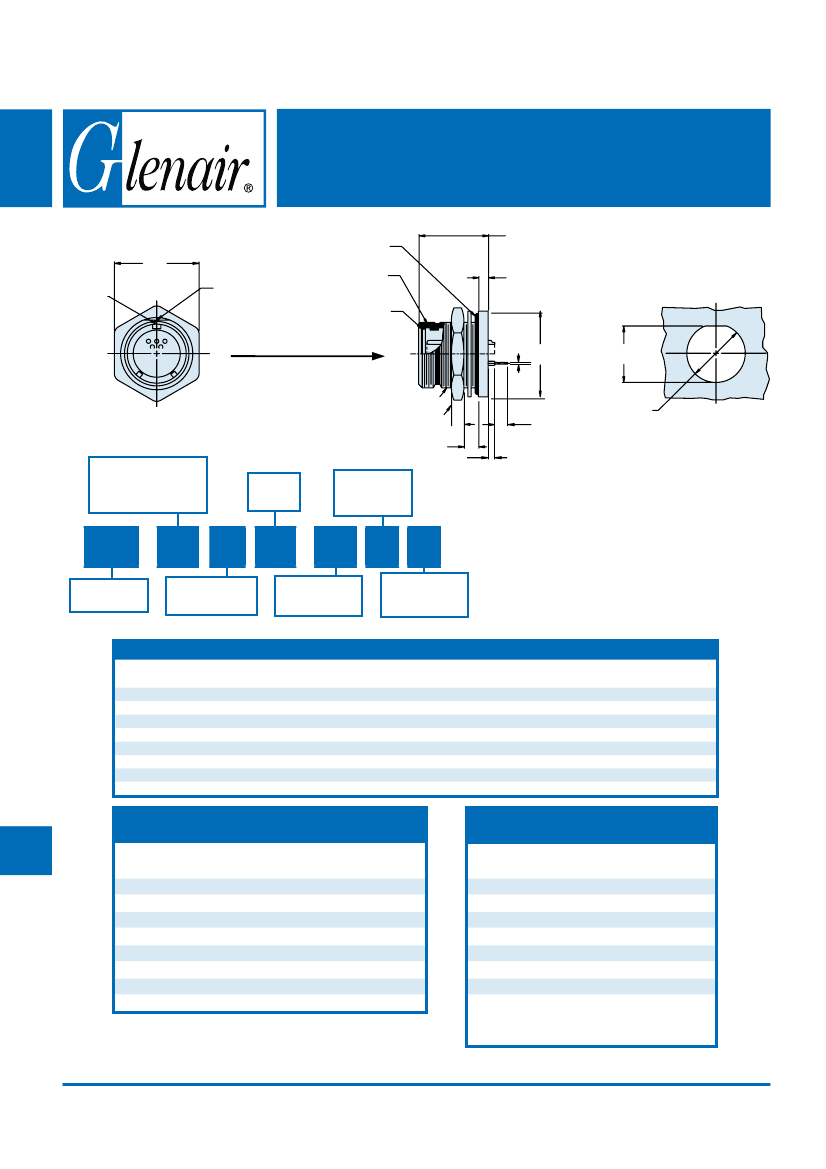

Rear Mounted Jam Nut Box Mount Receptacle

220-07: 1.32 (33.5) Max

220-17: 1.57 (39.9) Max

.18 (4.8)

Recommended

Panel Cutout

220-07 and 220-17

Series 22 Geo-Marine

®

Flange O-Ring

B Thread

Master Key

Indicator

Red Dot

Piston O-Ring

(See Note 1)

Direction of Pressure

Capability - Class H

C Thread

.16 (4.1) Ref

.50 (12.7) Max Panel

Accomodation

D

Ø

.021

G

.018

.125

Typ

F

.050

Typ

Contacts

P

= Pins

220

-

07

Series No.

H

Class

24

-

61

Insert

Arrangement

P

N

Polarization

N, 1, 2, 3, 4

Prior to use, lubricate

O-rings with high grade

silicone lubricant

(Moly-kote M55 or equivalent).

Metric dimensions (mm) are

indicated in parentheses.

H

= Hermetic

DIMENSIONS

SHELL

SIZE

10

12

14

16

18

20

22

24

B THREAD

CLASS 2A

.750 - .1P - .1L

.875 - .1P - .1L

1.000 - .1P - .1L

1.125 - .1P - .1L

1.250 - .1P - .1L

1.375 - .1P - .1L

1.500 - .1P - .1L

1.625 - .1P - .1L

C THREAD

CLASS 2A

7/8 - 20 UNEF

1 - 20 UNEF

1 1/8 - 16 UN

1 1/4 - 16 UN

1 3/8 - 16 UN

1 1/2 - 16 UN

1 5/8 - 16 UN

1 3/4 - 16 UN

D

DIA

1.25 (31.8)

1.38 (35.1)

1.50 (38.1)

1.63 (41.4)

1.75 (44.5)

1.88 (47.8)

2.00 (50.8)

2.12 (53.8)

E

FLATS

1.125 (28.6)

1.250 (31.8)

1.500 (38.1)

1.625 (41.3)

1.750 (44.5)

1.875 (47.6)

2.000 (50.8)

2.125 (54.0)

F DIA

±.005 ±(0.1)

.885 (22.5)

1.010 (25.7)

1.135 (28.8)

1.260 (32.0)

1.385 (35.2)

1.510 (38.4)

1.635 (41.5)

1.760 (44.7)

±.005

.835

.960

1.085

1.210

1.335

1.460

1.585

1.710

G

±(0.1)

(21.2)

(24.4)

(27.6)

(30.7)

(33.9)

(37.1)

(40.3)

(43.4)

G

RECOMMENDED JAM NUT

INSTALLATION TORQUE vALUES

SHELL

TORQUE ± 5%

SIZE

INCH-POUNDS NEWTON-METERS

10

95

10.73

12

110

12.43

14

140

15.82

16

170

19.21

18

195

22.03

20

215

24.29

22

235

26.55

24

260

29.38

NOTE 1:

Flat and master key indicator rotates with master key per

position noted on introductory pages.

CAGE Code 06324

REPLACEMENT O-RING

PART NUMBERS *

SHELL

PISTON

FLANGE

SIZE

O-RING

10

2-014

2-021

12

2-016

2-023

14

2-018

2-025

16

2-020

2-027

18

2-022

2-029

20

2-024

2-030

22

2-026

2-031

24

2-028

2-032

* Parker O-ring part numbers.

Compound N674-70 or equivalent.

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-10
