Z02215 Single-Chip Modem
Z iL O G
®
A single-chip modem that simplifies design
and certification
ZiLOG’s single-chip modem is a highly integrated
modem solution for remote data transmission, transac-
tion processing, and telemetry. The DSP-based Z02215
simplifies modem design and PTT certifications, enabling
you to focus on application design, rather than modem
design.
ZiLOG provides a total solution
The Z02215 includes the modem controller, data pump,
and analog front end, all in one package. It solves the
lengthy modem design and approval process by taking
the guesswork out of software design. It is a major
improvement over the previous method of designing
with a separate modem controller.
ZiLOG provides a software utility called Diplomat
TM
to
speed system development by allowing you to make con-
troller code changes quickly. Parameter tables for 12
countries and CTR21 are provided, which give you a
huge advantage when doing modem precertification test-
ing. Design and certification times can be reduced
50 percent or more by using the Z02215 and ZiLOG’s
software tools.
The Z02215 is specifically designed for transaction pro-
cessing applications such as point-of- sale and smart
card terminals, set-top boxes, and security applications
It can also be applied to applications that require data
transmission and reception of up to 2400bps. The
Z02215 includes a V.22bis data pump with improved ana-
log front end and a Z80-style microprocessor that serves
as the modem controller. System costs are reduced
since all of the RAM and ROM necessary to operate the
modem are included on-chip.
Features
• Complete modem integrated circuit with
integrated controller, data pump and Analog
Front End (AFE) with active hybrid
• Data modem throughput to 2400 bps
- ITU V.22bis, V.23, V.22, V.21
- Bell 212A, Bell 103, Bell 202, Bell 202T
- V.23 with Minitel line reversal
• V.14 asynchronous to synchronous conversion
• Speed matching and RTC/CTS flow control
between the modem and the terminal
• Line-in-use detection before connection, and
Pick-up detection during connections
• Supports tone or pulse dialing
• Call progress monitoring
• Programmable transmit attenuation and
selectable receive threshold
• Dynamic power management
• North American Type-I Caller ID
• 44-Pin VQFP footprint
Benefits
• Proven technology
• Reduce time to market by 50%
• Simplify global modem certifications
• Easy to integrate
• Quick design time
• Small footprint with extended
temperature capabilities

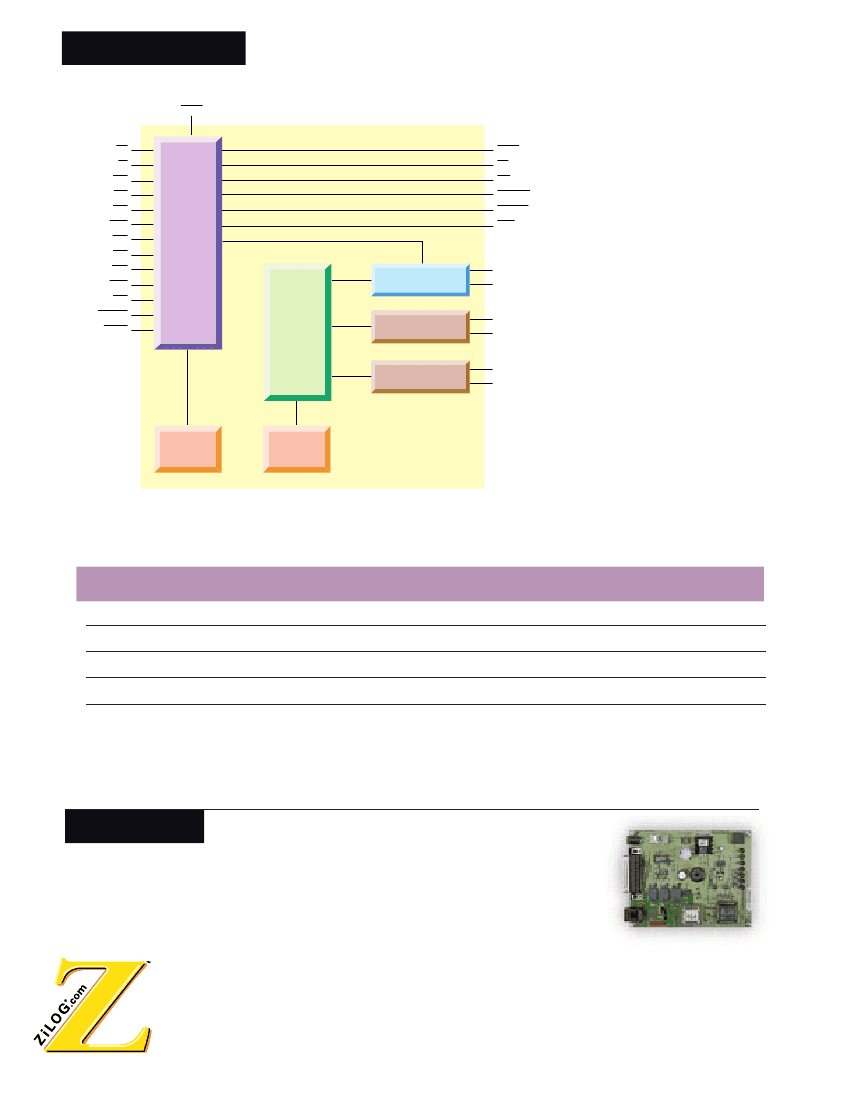

Z02215 Block Diagram
RESET
Applications
S/P
RI
DSR
CTS
TXD
TCLK
RXD
RTS
DCD
RCLK
DTR
EE DATA
–
EE CLK
–
EXTAL
SHTRL
OH
CID
RDET/LCS
LCS CHK
–
Mute
• Transaction processing
• Point-of-sale systems
• Smart card terminals
• Set-top boxes
• Security systems
• Remote telemetry
Controller
Oscillator
XTAL
• Remote diagnostics
Z02202
DSP
A/D Converter
RXI +
RXI –
D/A Converter
TXO +
TXO –
RAM/ROM
Internal
RAM/ROM
Internal
Z02215
Product
Z02215
Z02215
Z02915
Z02915
Part Number
Z0221524ASCR4508
Z0221524AECR4508
Z0291524ASCRxxxx
Z0291524AECRxxxx
Description
2400bps Single-Chip Modem
2400bps Single-Chip Modem
9600bps* Single-Chip Modem
9600bps* Single-Chip Modem
Temperature Range
Standard Temperature 0ºC to 70ºC
Extended Temperature -40ºC to +85ºC
Standard Temperature 0ºC to 70ºC
Extended Temperature -40ºC to +85ºC
* 9600bps operation provided from a ZiLOG-proprietary implementation of V.29
Evaluation Tools
Z0221500ZCO Evaluation Kit
www.
zilog
.com • Worldwide Customer Support Center • 877-945-6427 (Toll Free US and Canada)
