FEATURES

■

LT3585-0/LT3585-1

LT3585-2/LT3585-3

Photoﬂash Chargers with

Adjustable Input Current

and IGBT Drivers

DESCRIPTIO

The LT

3585 series are highly integrated ICs designed to

charge photoﬂash capacitors in digital and ﬁlm cameras.

A new control technique allows for the use of extremely

small transformers. Each part contains an on-chip high

voltage NPN power switch. Output voltage detection is

completely contained within the part, eliminating the need

for any discrete zener diodes or resistors. The output volt-

age can be adjusted by simply changing the turns ratio

of the transformer.

The CHRG/IADJ pin gives full control of the part to the

user. Driving CHRG/IADJ low puts the part in low power

shutdown. The CHRG/IADJ pin can also be used to reduce

the input current of the charger, useful in extending battery

life. The DONE pin indicates when the part has completed

charging.

The LT3585 series of parts are housed in tiny 3mm

2mm DFN packages.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

Adjustable Input Current

Integrated IGBT Driver

No Output Voltage Divider Needed

Uses Small Transformers: 5.8mm

5.8mm

3mm

Fast Photoﬂash Charge Times

Charges Any Size Photoﬂash Capacitor

Supports Operation from Single Li-Ion Cell, Two AA

Cells or any Supply from 1.5V Up to 16V

Small 10-Lead (3mm

2mm) DFN Package

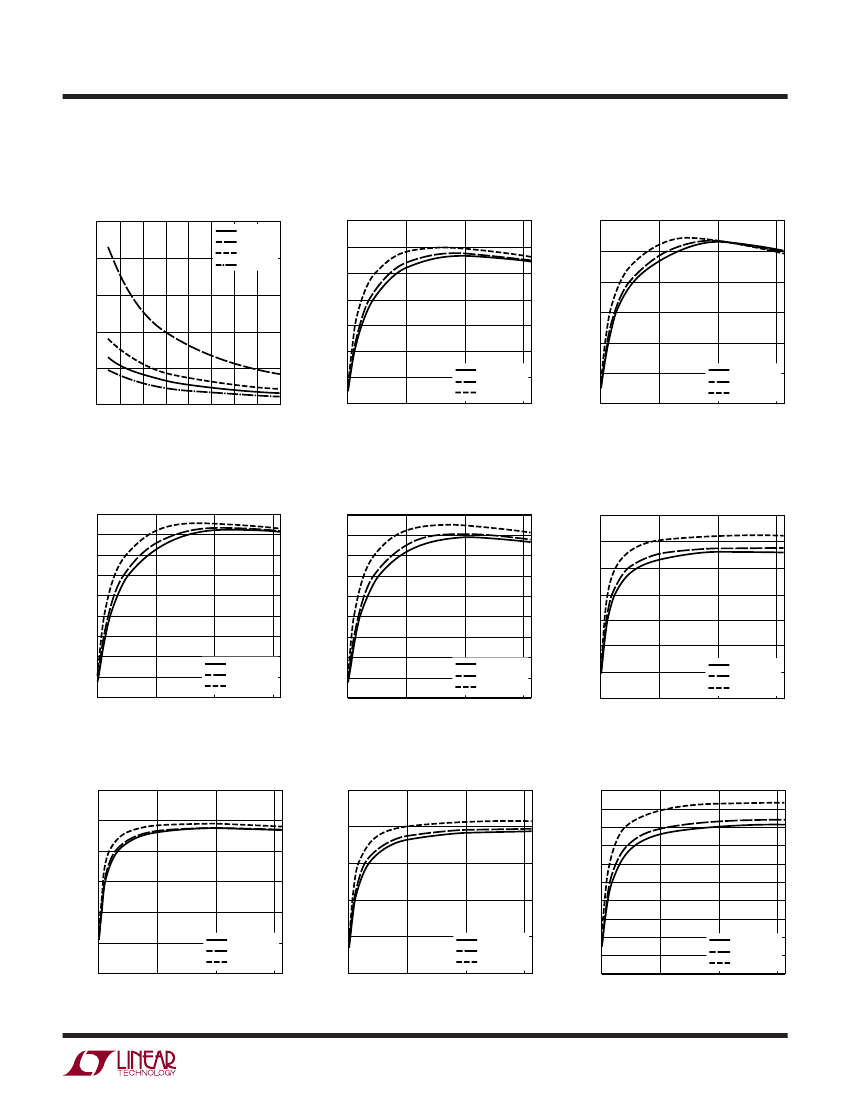

REDUCED MODE

CHARGE TIME

(Sec)

6.6

9.2

12.6

14.6

Fast Charge Time

NORMAL MODE

INPUT

CHARGE TIME

VERSION

CURRENT (mA)

(Sec)

LT3585-3

800/400

3.3

LT3585-0

550/275

4.6

LT3585-2

400/200

5.8

LT3585-1*

250/115

5.0

100µF capacitor, 320V, V

= V

BAT

= 3.6V

*50µF capacitor, 320V, V

= V

BAT

= 3.6V

APPLICATIO S

■

Digital/Film Camera Flash

PDA/Cell Phone Flash

Emergency Strobe

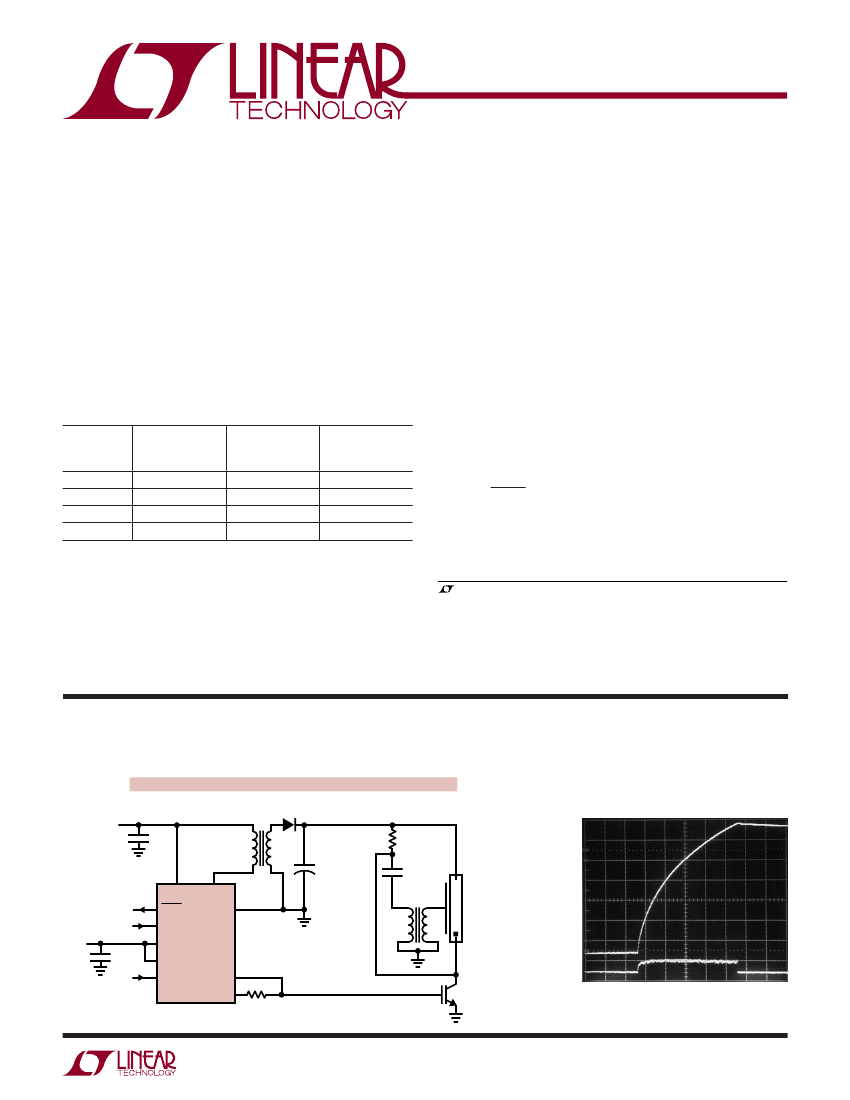

TYPICAL APPLICATIO

LT3585-1 Photoﬂash Charger Uses High Efﬁciency

2mm Tall Transformers with Tunable IGBT Gate Drive

DANGER HIGH VOLTAGE! OPERATION BY HIGH VOLTAGE TRAINED PERSONNEL ONLY

BAT

2 AA OR

1 TO 2 Li-Ion

1:10:2

4.7µF

320V

•

BAT

DONE

0.22µF

CHRG/IADJ

LT3585-1

IGBTPWR

IGBTIN

IGBTPU

IGBTPD

GND

•

50µF

PHOTOFLASH

CAPACITOR

2.2µF

600V

TRIGGER T

OUT

50V/DIV

FLASHLAMP

500mA/DIV

TO GATE OF IGBT

20Ω TO

160Ω

3585 TA01a

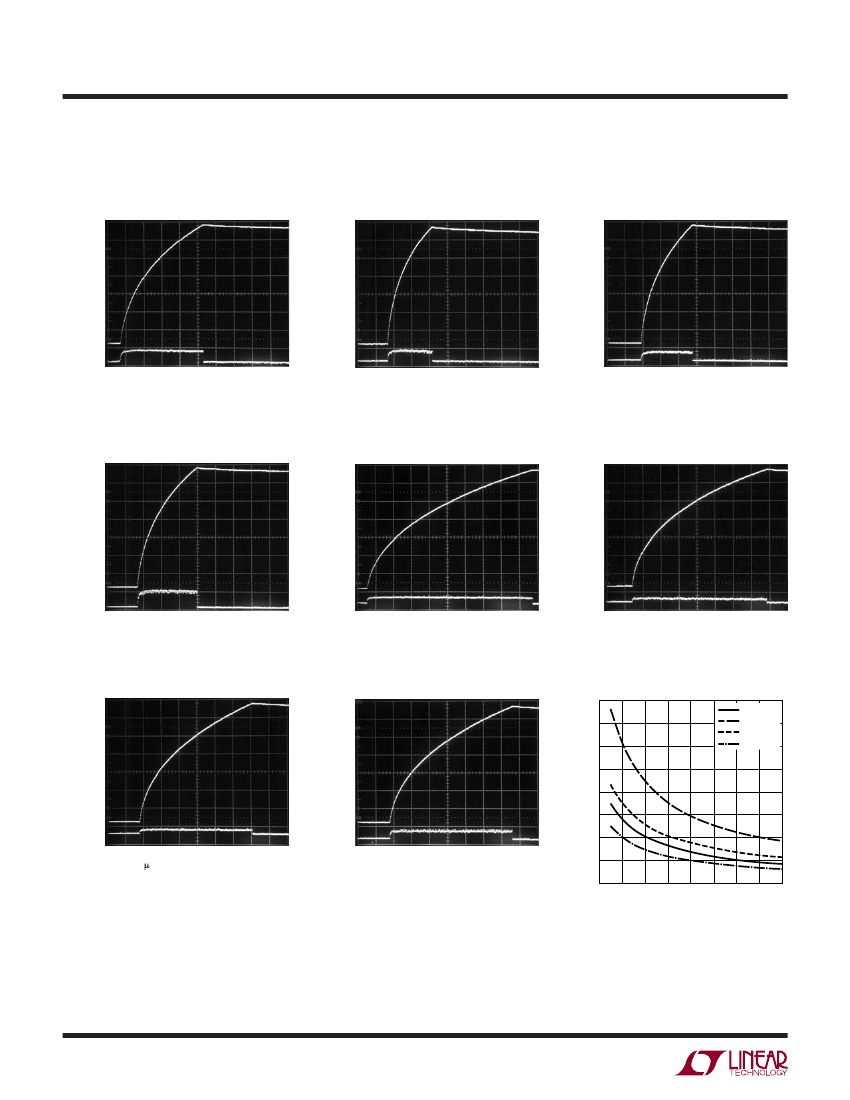

LT3585-1 Charging Waveform

Normal Input Current Mode

BAT

= 3.6V

OUT

= 50µF

1sec/DIV

3585 TA01b

3585f
