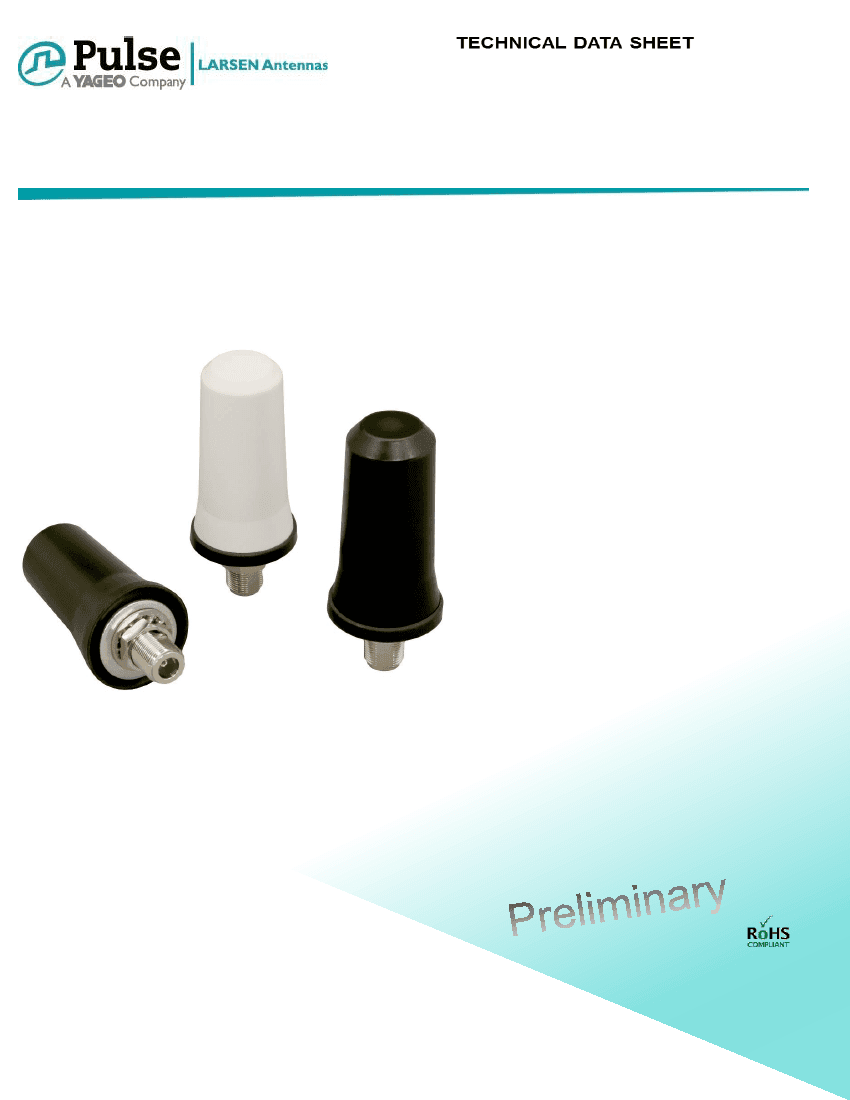

Series: Low Profile Transit
Description: 617-3800MHz, Direct mount,
Monopole
PART NUMBER: LPT600/3800DMN (Black)
LPT600/3800DMNW (White)
ELECTRICAL SPECIFICATIONS
Antenna type
Monopole, Measured on Ø1016mm (40”) ground plane
Frequency
617-960/1710-2170/2300-2700/3400-3800 MHz
Nominal Impedance
50
VSWR (617-960/1710-3800)
3:1/2.5:1
Average peak gain
(
617-960/1710-2170/2300-2700/3400-3800
)
Average efficiency
(
617-960/1710-2170/2300-2700/3400-3800
)
3.9/5.3/5.4/4.7 dBi
83/82/88/72 %
Radiation Pattern
Polarization
Power withstanding
Omni
Vertical
60 W
MECHANICAL SPECIFICATIONS
HPBW Vertical Plane
(
617-960/1710-2170/2300-2700/3400-3800
)
44/27/25/38 °
Diameter / height
Weight
Antenna Color / Material
Connector
Mounting
40.9 / 79.2mm (1.61” / 3.12”)
130 g (.29lbs)
Black or White / PC/ABS C2950
N-Female
15.9mm (.625”) hole required
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Ingress Protection
RoHS Compliant
OTHER SPECIFICATIONS
-40°to +85°C
IP67
Yes
Issue: 1925P
2
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Low Profile Transit
Description: 617-3800MHz, Direct mount,
Monopole
PART NUMBER: LPT600/3800DMN (Black)
LPT600/3800DMNW (White)

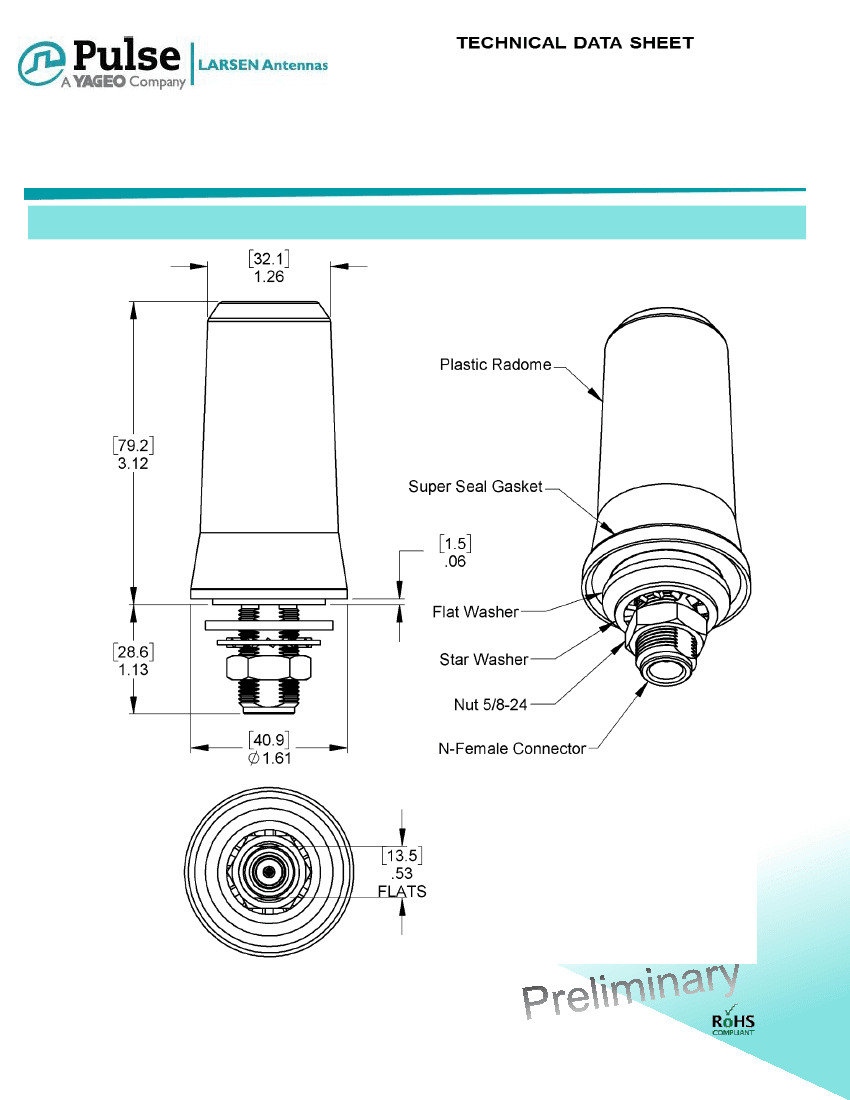

MECHANICAL DRAWING
All dimensions are in mm / inches
Issue: 1925P
3
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Low Profile Transit
Description: 617-3800MHz, Direct mount,
Monopole
PART NUMBER: LPT600/3800DMN (Black)
LPT600/3800DMNW (White)

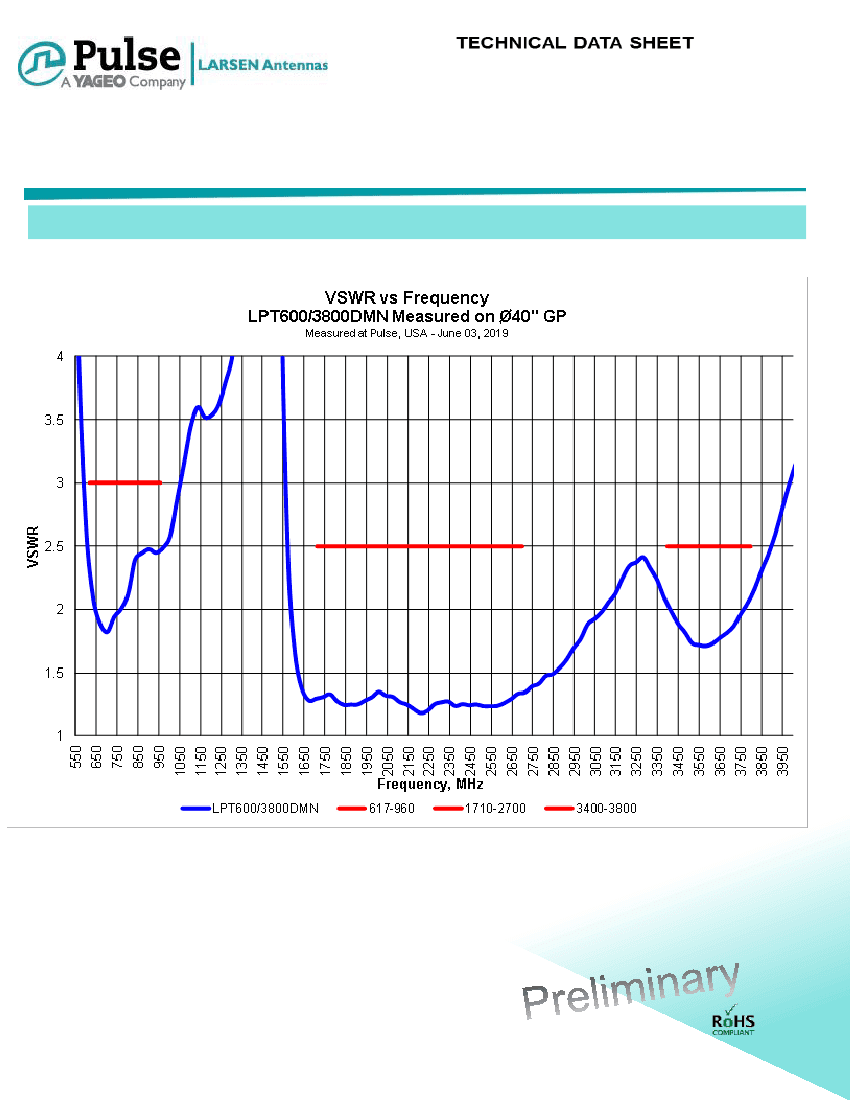

CHARTS
Issue: 1925P
4
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Low Profile Transit
Description: 617-3800MHz, Direct mount,
Monopole
PART NUMBER: LPT600/3800DMN (Black)
LPT600/3800DMNW (White)
CHARTS

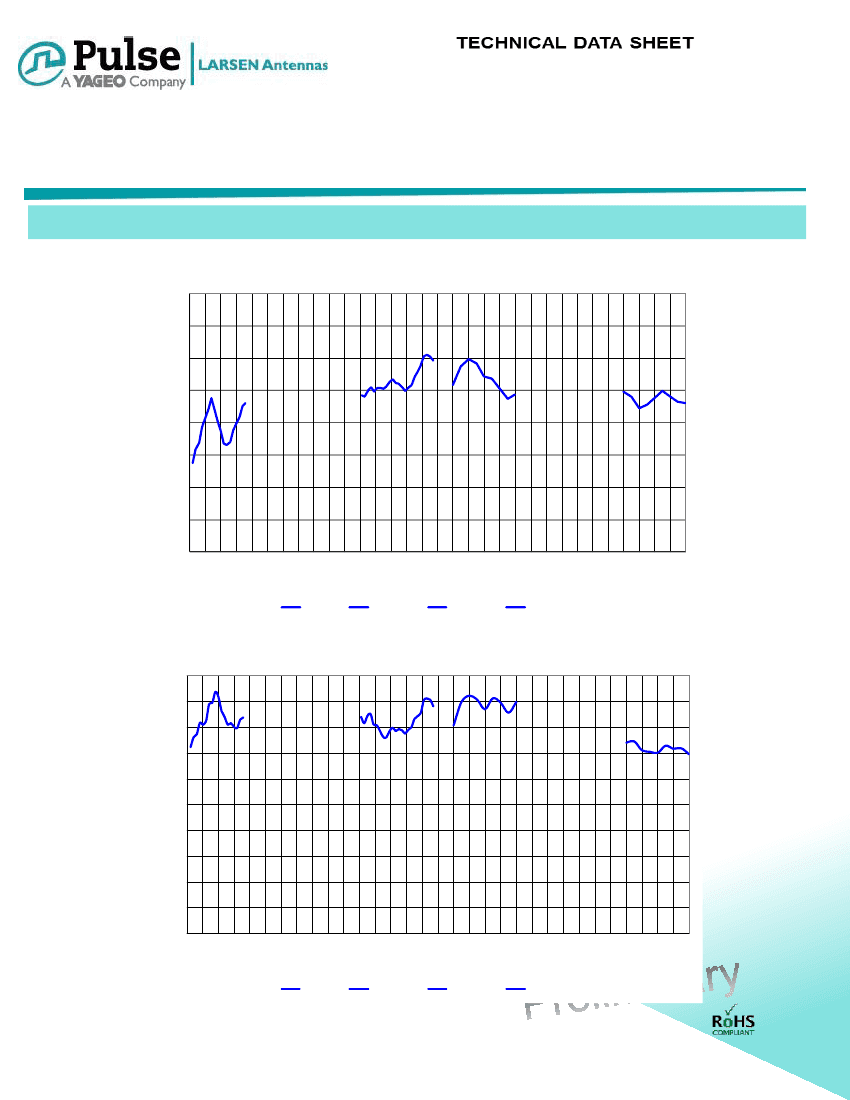

Peak Gain vs Frequency
LPT600/3800DMN Measured on Ø40" GP
Measured at Pulse, USA - Dec 06, 2018
8
