R574.313.620 datasheet, PDF - EEWORLD Datasheet

R574.313.620: DescriptionRF Coaxial Relay, SP6T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size106KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

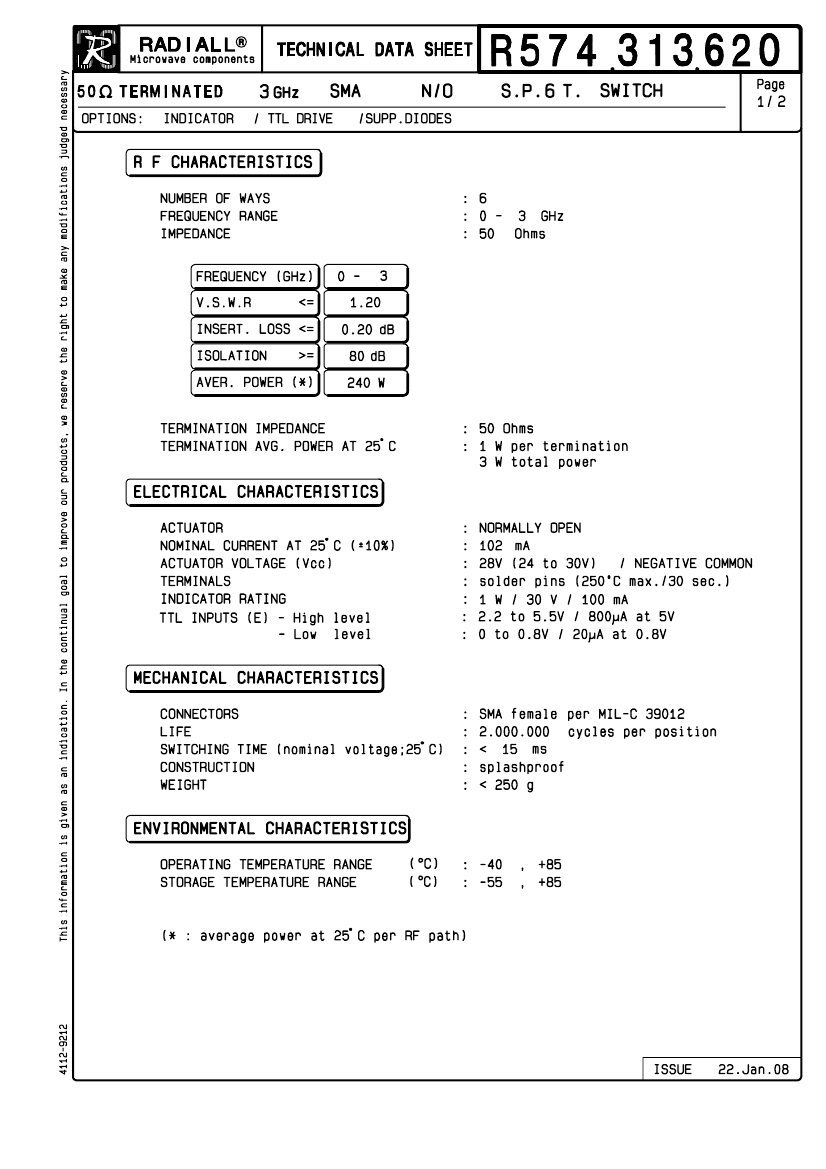

R574.313.620 Overview

RF Coaxial Relay, SP6T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99

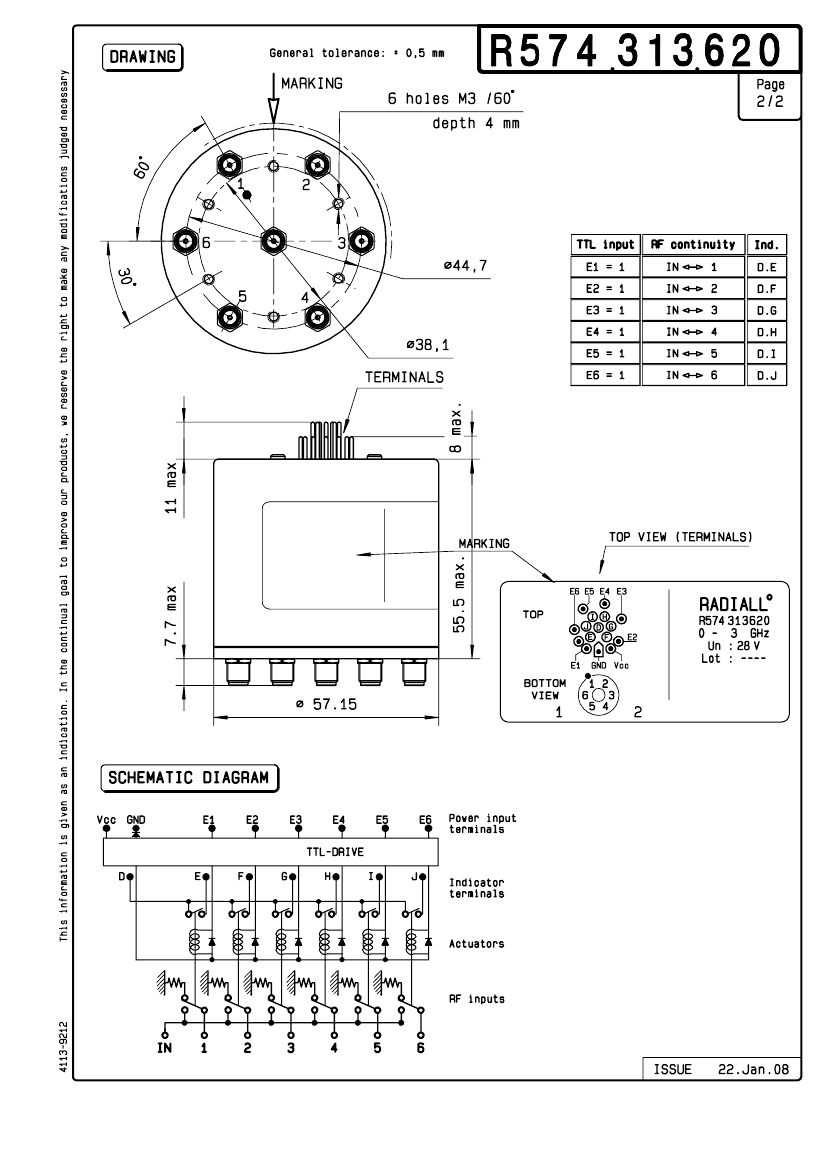

body height	55.5 mm
Body length or diameter	57.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.102 A
Coil power	2856 mW
Coil resistance	274.51 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Manufacturer's serial number	R574.313.620
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	MOMENTARY
Relay function	SP6T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.2
