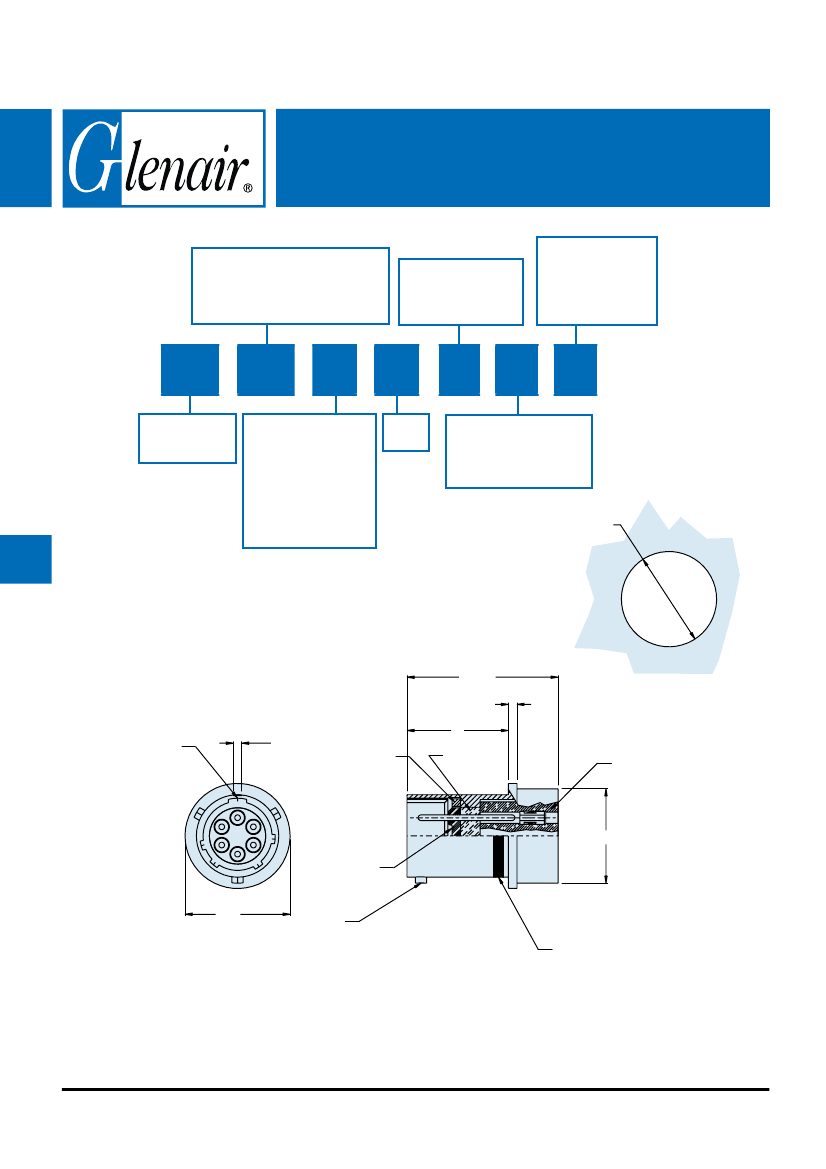

Bayonet Coupling Solder Mount Receptacle
with Crimp Removable Contacts • MS3473 Type
Alternate Insert
Arrangement
W, X, Y or Z
(Omit for Normal)
(See Table II)
230-020
MIL-DTL-26482 Series II Type Hermetic
MIL-DTL
26482
Type
Connector Style
020
= Hermetic Solder Mount
Receptacle with Solderless
Contacts
Insert
Arrangement
Per MIL-STD-1669
230
-
020
Series 230
MIL-DTL-26482
Type
FT
10
-
6
Shell
Size
D
X
Material/Finish
Z1
= Stainless Steel/
Passivated
ZL
= Stainless Steel/
Nickel Plated
FT
= C1215 Stainless
Steel/Tin Plated
(See Note 2)
Contact Type
D
= Pin Face, Crimp Rear,
Removable Sockets
(See Note 6)
ØK
D
L Max
.047
.026
Master
Polarizing
Keyway
.060 Width
Polarizing
Stripe
F
Peripheral
Gasket
Vitreous
Insert
PANEL
CUT-OUT
Rear Insulator
Assembly
A
F
E
D
B
C
C
Interfacial
Seal
Painted
Bayonet
Pin Ends
ØA
.070 ±.031 Wide
Blue Color Band
Located Within
.125 Of Flange
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
D-22
Bayonet Coupling Solder Mount Receptacle
with Crimp Removable Contacts • MS3473 Type
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
TABLE I: CONNECTOR AND CUT-OUT DIMENSIONS
Shell
Size
8
10
12
14
16
18
20
22
24
A
Dia
Ø.010 (0.3)
.625 (15.9)
.750 (19.1)
.844 (21.4)
.969 (24.6)
1.094 (27.8)
1.218 (30.9)
1.312 (33.3)
1.438 (36.5)
1.564 (39.7)
C
Dia
.563/.557
(14.3/14.1)
.673/.667
(17.1/16.9)
.782/.776
(20.0/19.7)
.907/.901
(23.0/22.9)
1.032/1.026
(26.2/26.1)
1.157/1.151
(29.4/29.2)
1.251/1.245
(31.8/31.6)
1.376/1.371
(35.0/34.8)
1.501/1.495
(38.1/38.0)
F
.735/.711
(18.7/18.1)
.735/.711
(18.7/18.1)
.735/.711
(18.7/18.1)
.735/.711
(18.7/18.1)
.735/.711
(18.7/18.1)
.735/.711
(18.7/18.1)
.823/.799
(20.9/20.3)
.823/.799
(20.9/20.3)
.823/.799
(20.9/20.3)
K
.570 (14.5)
.680 (17.3)
.789 (20.0)
.914 (23.2)
1.039 (26.4)
1.164 (29.6)
1.258 (32.0)
1.383 (35.1)
1.508 (38.3)
L
Max
1.078 (27.4)
1.078 (27.4)
1.078 (27.4)
1.078 (27.4)
1.078 (27.4)
1.078 (27.4)
1.140 (29.0)
1.140 (29.0)
1.140 (29.0)
APPLICATION NOTES
1.
2.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Material/Finish:
Shell: Z1 - 304L
stainless steel/passivate.
FT - C1215
stainless steel/tin plated.
Titanium and Inconel
®
available. Consult factory.
Contacts - 52 Nickel alloy/gold plate.
Bayonets - Stainless steel/passivate.
Seals - Silicone elastomer/N.A.
Insulation - Glass/N.A.
Rear insulator - Rigid dielectric/N.A.
Glenair 230-020 will mate with any QPL MIL-DTL-26482
4.
Series II bayonet coupling plug of same size and insert
polarization.
Performance:
Hermeticity - <1 x 10
-7
cc/sec @ 1 atm differential.
Dielectric withstanding voltage - Consult factory
or MIL-STD-1669.
Insulation resistance - 5000 megohms min @500VDC.
See Table II for available insert arrangement option.
Connectors are supplied with applicable crimp socket contacts
per MIL-C-39029/22-** and MS3160-** insert and removal
tool.
Metric Dimensions (mm) are indicated in parentheses.
5.
6.
3.
7.
