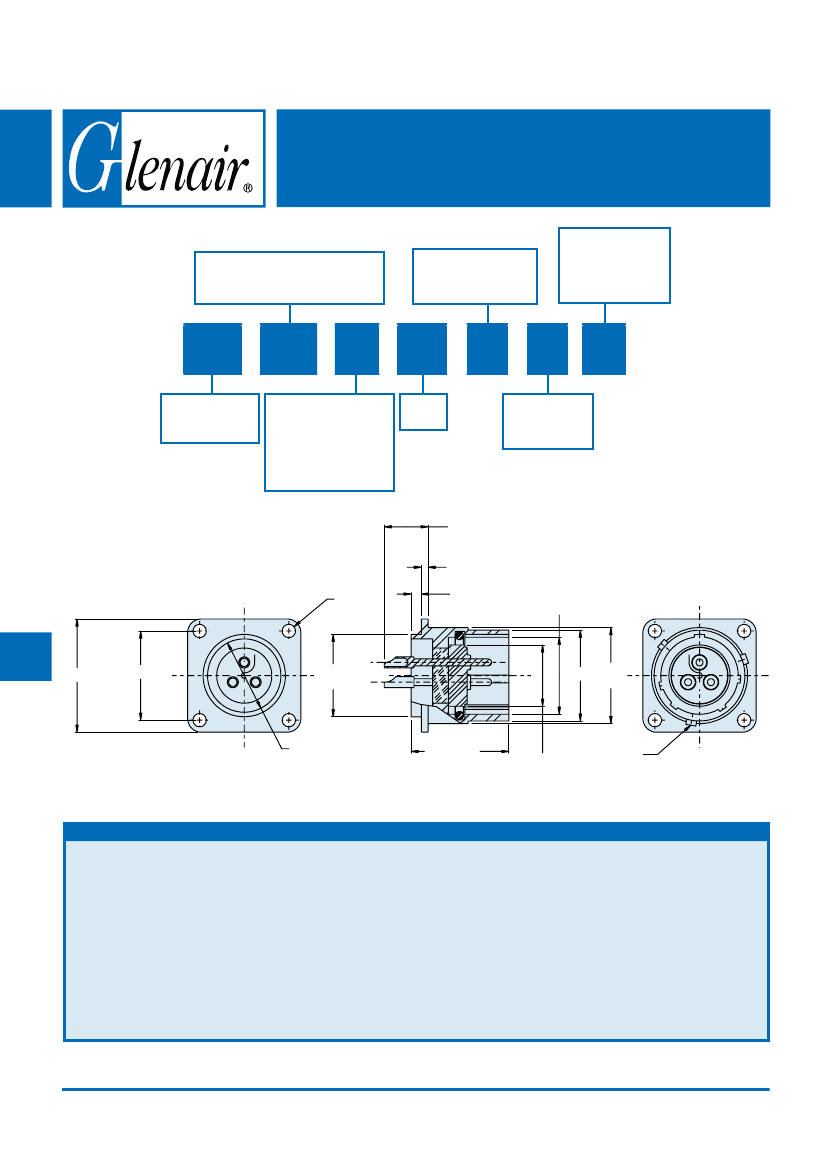

Bayonet Coupling Square Flange Receptacle Connector
with Solder Terminals
Alternate Insert
Arrangement
W, X, Y, or Z
(Omit for Normal)
230-023
MIL-DTL-83723/79 Series III Type Hermetic
MIL-DTL
83723
Series 230
MIL-DTL-83723
Type
Connector Style
023
= Hermetic Square
Flange Mount Receptacle
Insert
Arrangement
Per MIL-STD-1554
230
-
023
FT
12
-
3
Shell
Size
P
Contact
Type
P
= Solder Cup
X
Material
Designation
FT
= Carbon Steel/
Tin Plated
Z1
= Stainless Steel/
Passivated
.400 Max
(Contact Size 16 & 12)
.330 Max
(Contact Size 20)
.072/.052
ØH
.108/.078
ØD
Shell I.D.
E
1
1
A (Typ)
B (Typ)
2
3
ØC
Max
Ø
F
ØG
Max
3
2
Ø Cc
(Min I.D.)
.890 Max
Ø E Max
Resilient
Insert
Painted
Bayonet
Pin Ends
APPLICATION NOTES
1.
2.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Material/Finish:
Shell*:
Z1 - Stainless steel/passivated.
FT - Carbon steel/tin plated.
Contacts - 52 Nickel alloy/gold plated.
Bayonets - Stainless steel/passivated.
Seals - Silicone elastomer/N.A.
Insulation - Glass/N.A.
Glenair 230-023 will mate with any QPL MIL-DTL-83723/75
& 77 Series III bayonet coupling plug of same size, keyway,
and insert polarization.
* Additional shell materials available, including titanium and Inconel
®
. Consult factory for ordering information.
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
4.
Performance:
Hermeticity - <1 x 10
-7
cc He/sec @ 1 atmosphere
differential.
Dielectric withstanding voltage - Consult factory or
MIL-STD-1554.
Insulation resistance - 5000 MegOhms min. @ 500VDC.
Consult factory and/or MIL-STD-1554 for arrangement,
keyway, and insert position options.
Metric Dimensions (mm) are indicated in parentheses.
5.
6.
3.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-4
Bayonet Coupling Square Flange Receptacle Connector
with Solder Terminals
.125 Max
.210 Max
Accommodation
For
Panel And
Screw Heads
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
Max Panel Thickness
TABLE I: CONNECTOR AND CUT-OUT DIMENSIONS
Shell
Size
8
10
12
14
16
18
20
22
24
A
B
C Dia
Max
.500 (12.7)
.562 (14.3)
.750 (19.1)
.812 (20.6)
.937 (23.8)
1.062 (27.0)
1.187 (30.1)
1.312 (33.3)
1.437 (36.5)
D Dia
Shell I.D.
.433/.428
(11.0/10.9)
.535/.530
(13.6/13.5)
.705/.700
(17.9/17.8)
.774/.796
(19.7/20.2)
.901/.896
(22.9/22.8)
1.007/1.002\
(25.6/25.5)
1.132/1.125
(28.8/28.6)
1.257/1.252
(31.9/31.8)
1.382/1.377
(35.1/35.0)
E Dia
Resilient
Insert
.312 (7.9)
.388 (9.9)
.558 (14.2)
.627 (15.9)
.772 (19.6)
.860 (21.8)
.985 (25.0)
1.110 (28.2)
1.235 (31.4)
F Dia
.536/.531
(13.6/13.5)
.659/.654
(16.7/16.6)
.829/.824
(21.1/20.9)
.898/.893
(22.8/22.7)
1.025/1.020
(26.0/25.9)
1.131/1.126
(28.7/28.6)
1.256/1.251
(31.9/31.8)
1.381/1.376
(35.1/35.0)
1.506/1.501
(38.3/38.1)
G Dia
Max
.561 (14.2)
.696 (17.7)
.875 (22.2)
.935 (23.7)
H Dia
Thru 4 Pl
.120 (3.0)
.120 (3.0)
.120 (3.0)
.120 (3.0)
CC Dia
Min
.406 (10.3)
.443 (11.3)
.668 (17.0)
.668 (17.0)
.763 (19.4)
.862 (21.9)
Panel
Cut-Out
ØC
.630/.620
(16.0/15.7)
.758/.748
(19.3/19.0)
.923/.913
(23.4/23.2)
.990/.980
(25.1/248)
1.117/1.107
(28.4/28.1)
1.219/1.209
(31.0/30.7)
1.357/1.337
(34.5/34.0)
1.462/1.452
(37.1/36.9)
1.587/1.577
(40.3/40.1)
Panel
Cut-Out
ØG
.515/.505
(13.1/12.8)
.582/.572
(14.8/14.5)
.770/.760
(19.6/19.3)
.832/.822
(21.1/20.9)
.958/.948
(24.3/24.1)
1.082/1.072
(27.5/27.2)
1.202/1.192
(30.5/30.3)
1.332/1.322
(33.8/33.6)
1.452/1.442
(36.9/36.6)
.812 (20.6)
.937 (23.8)
1.031 (26.2)
1.125 (28.6)
1.250 (31.8)
1.343 (34.1)
1.437 (36.5)
1.562 (39.7)
1.107 (28.1)
.594 (15.1)
.719 (18.3)
.812 (20.6)
.906 (23.0)
.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.062 (27.0) .120 (3.0)
1.187 (30.1) .120 (3.0)
1.312 (33.3) .120 (3.0) 1.108 (28.1)
1.437 (36.5) .120 (3.0) 1.204 (30.6)
1.562 (39.7) .149 (3.8) 1.388 (35.3)
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-5
MIL-DTL
230-023
MIL-DTL-83723/79 Series III Type Hermetic
E
